4. Select the Serial Port that the modem is connected to.
5. Select the RPD 1 (Modem) checkbox. Click OK.

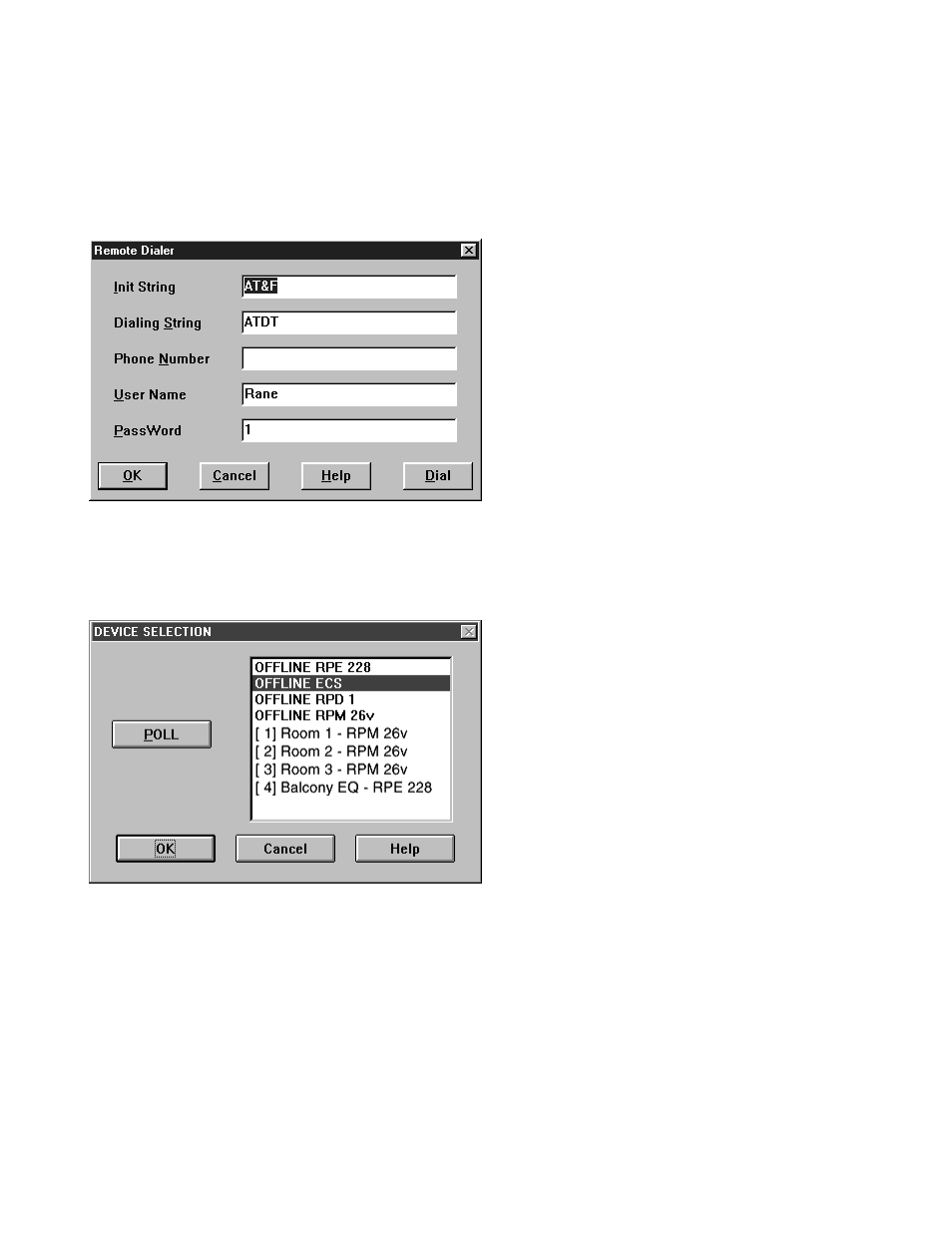

6. Select System > Dial.
7. Enter the remote site’s Phone Number, User Name and
Password. User Name and Password are case sensitive, so
be aware of what case the initial password was set.
8. Click the Dial button.
9. Once connected to the remote site, select Device > Select
to bring up the Device Selection page.
10. Click POLL to locate the remote devices.
11. The remote devices are under your control. Any local
devices will not be affected while Remote to RPD 1 is
Selected under System Setup. During the remote session,
RPD 1’s RW 232 CONTROL INPUT connector is dis-
connected. Thus the local controller or PC will not operate
the system until the session terminates.
REMOTE RS-232 DIAGNOSTICS
All that is required to perform remote diagnostics is a PC
running Windows ® with a 28.8 kb modem or better and any
terminal program. This procedure calls a remote RS-232 site
and operates it as if you are there. Commands are as follows.
ATZ (reset modem)
OK
ATDT ******* (dial phone number)
CONNECT 19200
$$$ (to place RPD 1 in terminal mode)
Welcome to:
RW 232 Remote
Phone Line 1
RPD Modem
You are connected to a Rane RPD 1 Modem in terminal
mode.
Username: Rane (enter User Name of the RPD 1)
Password: 1 (enter Password of the RPD 1[default=1])
Entry Granted.
Command (? for help)>?
-+- Menu Commands -+-
?=Help
X=Display Device State
R=Set Data Router
Q=Quit menu mode
Command (? for help)>
Route Modem port to (I=int, U=User Data Port, R=RW 232
port): U
Connecting User Data port to Modem port…
Command (? for help)> (Once connected to the User Data
Port, you are connected to the remote device connected to
this port.)
+++ATH (to end this session)
OK
