Typical ECM 64eAD Installation
The ECM 64eAD is preprogrammed to operate out of the
box using the following system configuration. Run RaneWare,
choose
Device > Restore Memories from File, and load the
ECM 64e file AP1.C64. In this example we will not use
custom names, just the defaults to keep things clearer.
In this configuration:
• Mic Mix is routed to the AEC IN
• Out 1 is used for the AEC REF
• Line, AUX and HYBRID are routed to Out 1 (to the
loudspeaker amplifier)
• AEC OUT, AUX and HYBRID are routed to Out 2 (to the
video codec)
• Mic Mix, Line, AUX and HYBRID are routed to Out 3 (to
the record VCR)
• AEC OUT, Line and AUX are routed to HYBRID.
The AP1.C64 file uses two Memories:
• Memory 1 is set for the above application
• Memory 2 allows local speech reinforcement.
In Memory 1, since Out 1 is used for the AEC Reference,
Mics cannot be sent to Out 1 for local speech reinforcement. If
Mics are sent to both the AEC Input and the AEC Reference,
the AEC will not perform properly.
The Memory 2 application solves this problem by chang-
ing the AEC Reference from Out 1 to the mix of Line In and
Aux In. Since Out 1’s Limiter is no longer part of the AEC
Reference, Memory 2 disables Out 1’s Limiter.
See Memory & Security on page Manual-9 for more
information.
Refer to the Appendix for an example of a larger system
combining the ECM 64e with ECS.

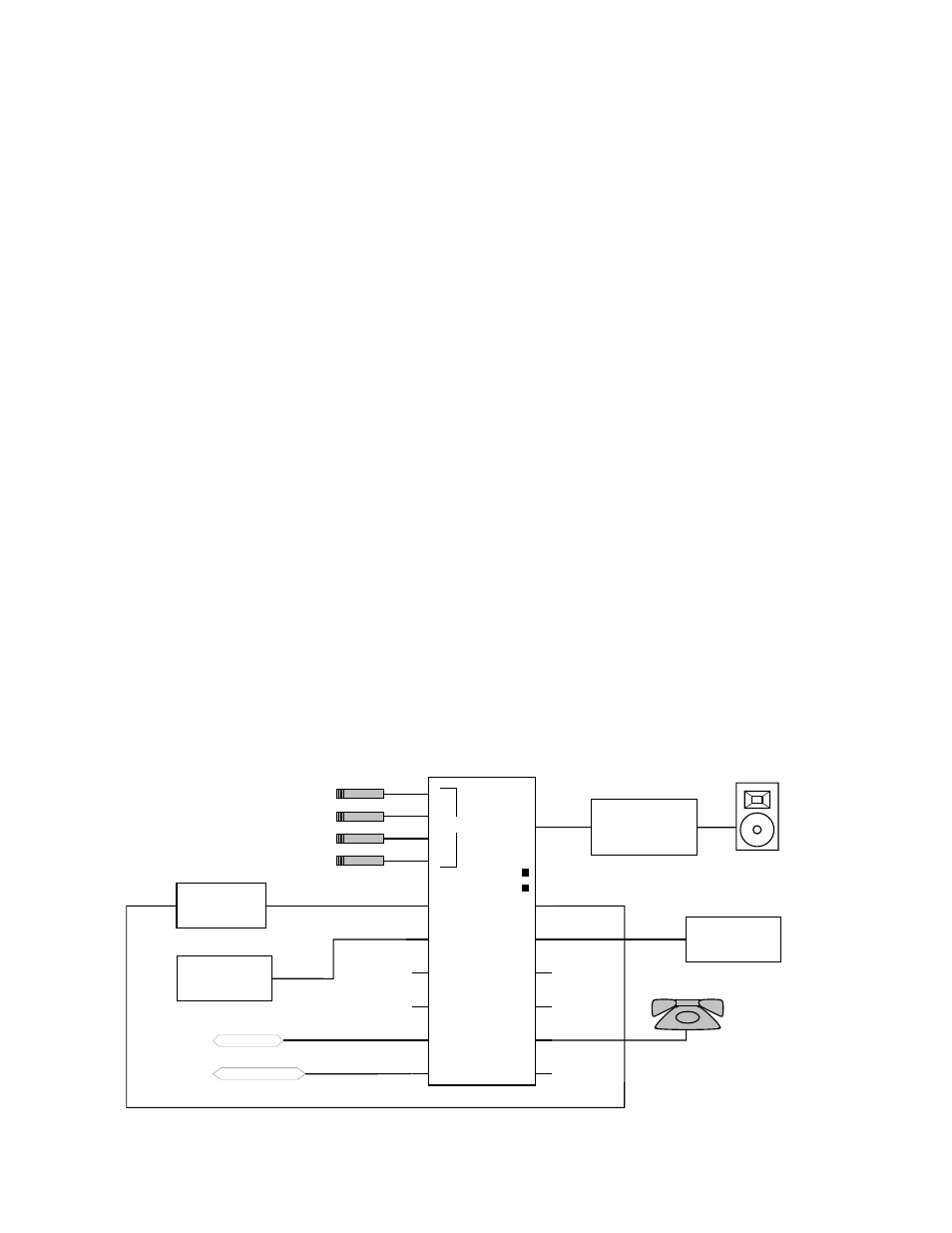

Typical ECM 64eAD Installation
OUT IN
AUDIO
VIDEO CODEC
TEL. LINE
ROOM CONTROL
AUDIO
AUDIO
PLAYBACK VCR
RECORD VCR
IN
IN
OUT
OUT
VHS
VHS
RW 232 ADDRESS 1
MIC 1
MIC 2
MIC 3
MIC 4
MIX IN
1
2
3
4
RW 232 IN OUT
DH 1 Installed
ECA 1 Installed
LINE IN
OUT 1
PROGRAM
AUX IN
OUT 2
OUT 3
AEC REF
OUT
AEC
OUT
EXT. AEC
REF. IN
MRP/EXT.
CTRL.
ECM 64eAD
DB9-FM
DB15-FM
DB9-M
PHONE LINE
RJ-11 RJ-11
PROGRAM AMP
PROGRAM
SPEAKER
IN OUT
