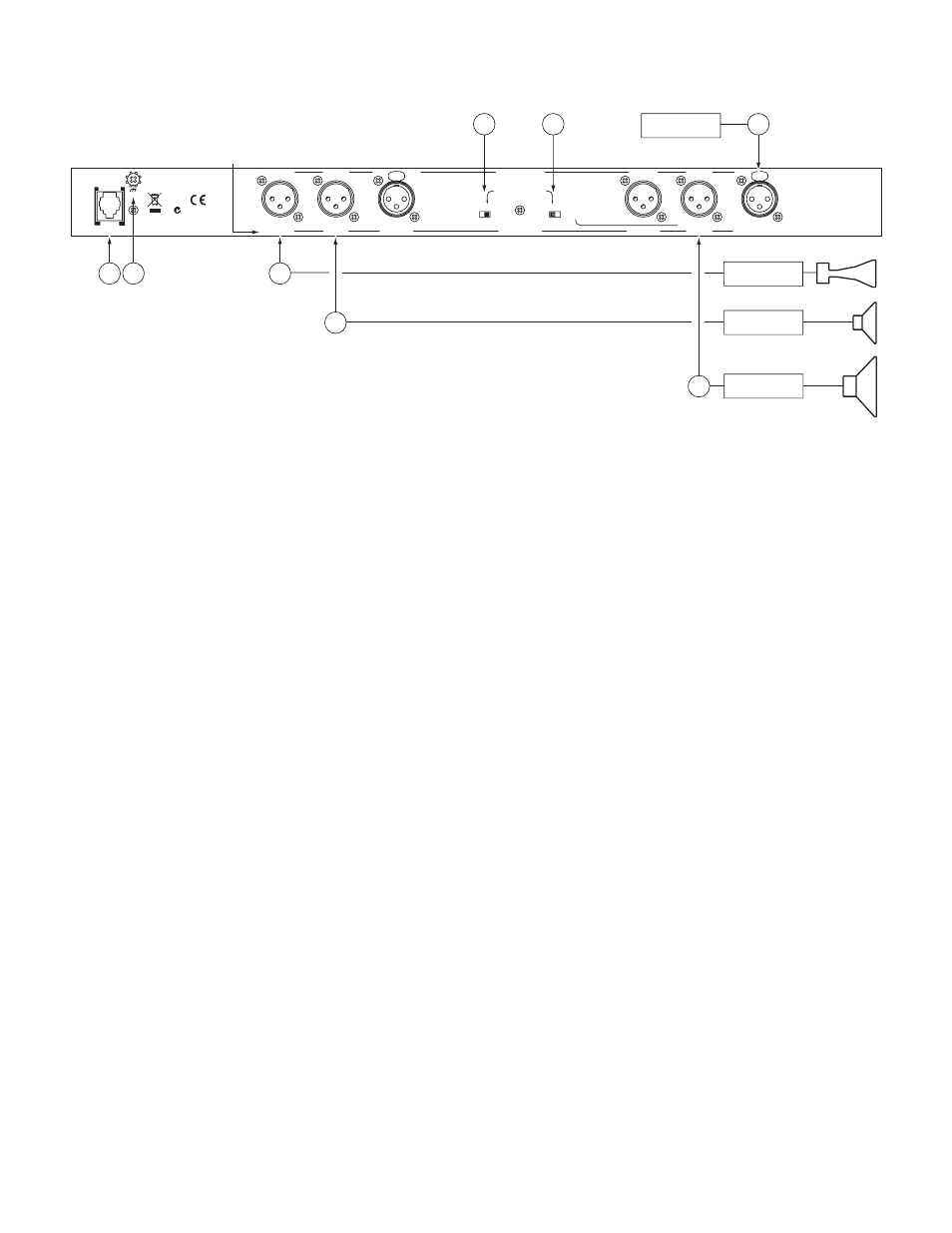

REAR PANEL: MONO 3-WAY CONFIGURATION
Observe the labels below the Inputs and Outputs for Mono operation.
1
MONO (CHANNEL 1) INPUT:
Plug the output of the mixer, equalizer or other signal source to this Input for mono opera-
tion. Do not use the Channel 2 INPUT for MONO 3-WAY operation.
2
HIGH OUTPUT: Connect this Output to the input of the high frequency amp.
3
MID OUTPUT: Connect this Output to the input of the mid frequency amp.
4
LOW OUTPUT: Connect this Output to the input of the low frequency amp.
5
SUBWOOFER switch: Set this switch for 2-CHANNEL (MONO 3-WAY) operation.
6
SYSTEM MODE switch:
Set this switch for MONO 3-WAY operation.
7
POWER input connector: Use only an RS 1, or other remote AC power supply approved by Rane. This unit is supplied with a
remote power supply suitable for connection to this input jack. Consult the factory for replacement or substitution. This unit’s
power input is designed for an AC supply, delivering 18-24 volts, from a center-tapped transformer capable of supplying at least
the current demanded by this product. Using any other type of supply may damage the unit and void the warranty.
8
Chassis ground point: A #6-32 screw is supplied for chassis grounding purposes. Units with external power supplies do not
ground the chassis through the line cord. In case of a grounding problem, try connecting crossover chassis ground to amplifier
chassis ground or directly to the grounding screw on a grounded AC outlet cover by means of a wire secured on both ends with
star washers to guarantee proper contact. See the Chassis Grounding Note on page Manual-3.
