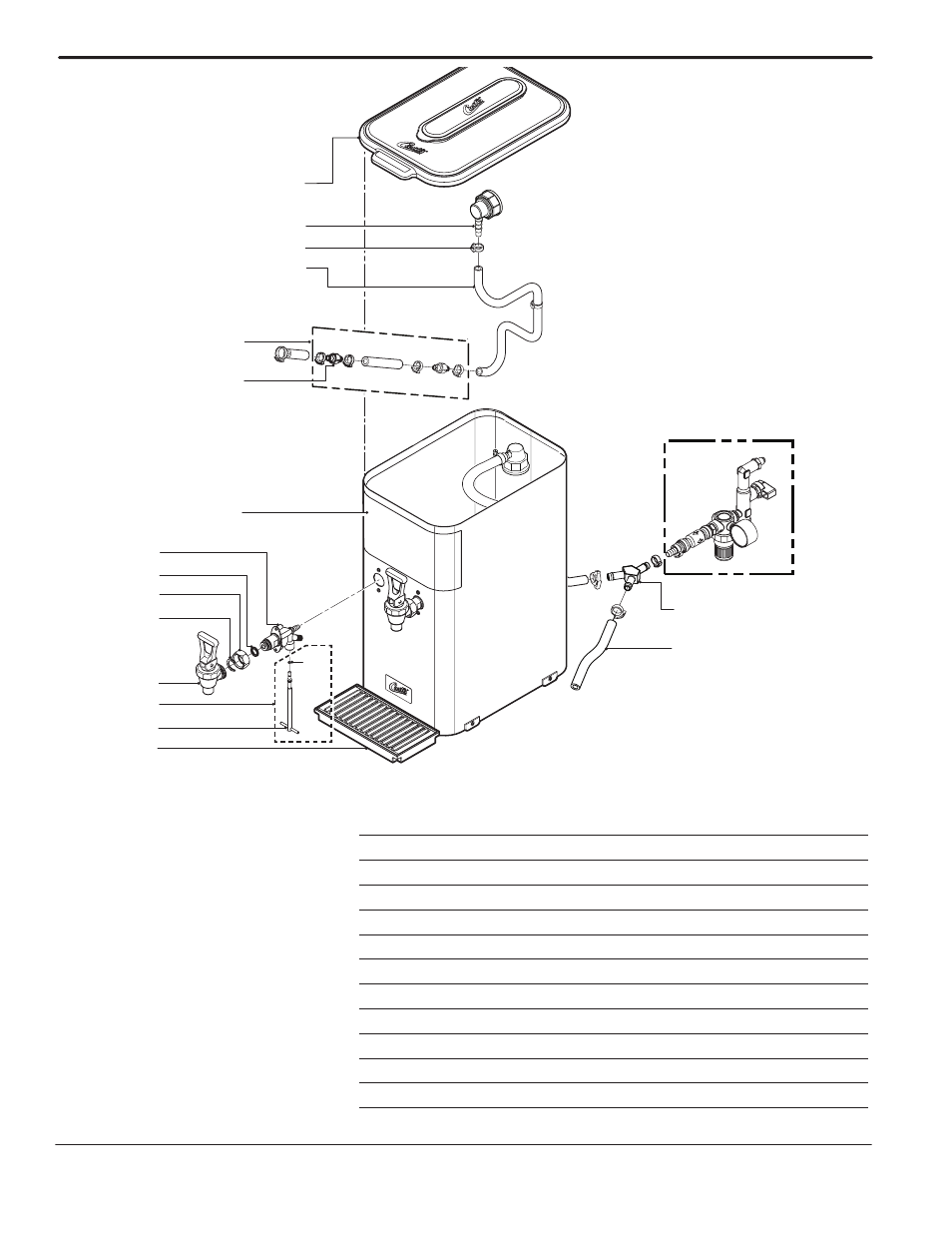

WATER INLET PARTS
BREAKDOWN PAGE 8
1
1A
2
3
4
5
6
7
8
9
10 WC-5683*
WC-5683-101
WC-8654*
WC-43002
WC-53116*
WC-37293*
WC-37288*
WC-38471
WC- 894*
WC-1903*
WC-1906* LID ASSY, TCO BLACK PLASTIC
LID ASSY, BLUE PLASTIC (OPTIONAL)
CONNECTOR, SCHOLLE #1910L BLK FOR .38 ID
CLAMP, HOSE SNAP NYLON .525/.605
TUBE, CLEAR BEV 5/8 O.D X 3/8 I.D SWT SYS
KIT, CHECK VALVE (2 VALVES & INSTRUCTIONS)
KIT, CHECK VALVE, CLAMPS & INSTRUCTIONS.
LABEL, FRONT TCO ICED TEA GENERIC
MIXING VALVE
NUT, Union SHANK
C’ RING .917 X .760 X .090
DESCRIPTION PART Nº ITEM Nº
* RECOMMENDED PARTS TO STOCK
ILLUSTRATED PARTS
TCC2S SHOWN
TCC2S is shown on this page.
The TCC3S has three faucet/
mixing valve systems and
three Scholle connectors.
Parts are common between
both units except where noted.
