Wilbur Curtis CBP - Manual (Page 7)

7
1
2
3
4
4A
5
5A
5B
6
7
8
8A
9
10
11
11A
12
12A
13
13A
14
14A
14B
15
16
18
19
21
22
23 WC-58117
WC- 889*
WC-2977-101K*
WC-37184*
WC-37301
WC-3417
WC-3398*
WC-37242
WC-53038
WC- 826L*
WC- 895-105
WC- 801*
WC-43134
WC-29025*
WC-66079
WC-2965
WC-8556*
WC-6193-0
WC-37255
WC-2401
WC-61716-101
WC-61717-101
WC-58101-101
WC- 102*
WC-3518*
WC-5853-102
WC-43062*
WC-6277
WC-5502-01*
WC- 904-04* COVER, TOP BREWER
VALVE, DUMP LEFT 120V 12W
KIT, FITTING SPRAYHEAD PLASTIC
KIT, LABEL & UCM CBS CURTIS
KIT, LABEL & UCM CBS W/½ BREW (OPTIONAL)
BREW CONE,ASSY W/SPLASH POCKET BROWN COFFEE
BREW CONE, ASSY STD TEA NON-METAL W/BLU GUARD
KIT, BREW CONE BLACK W/COFFEE LABELS (OPTIONAL)
TUBE ASSY, FLEXIBLE 1/4 FLARE 11-1/8” (OLDER UNITS)
VALVE, INLET 1 GPM 120V 10W (OLDER UNITS)
VALVE, INLET DUAL 120V 10W 2 GPM X .5 GPM
VALVE, INLET BRASS .50 GPM 120V 10W (OLDER UNITS)
O’RING, .426 X 9/16 O.D X .070 WALL EDPM TCTS
SPRAYHEAD, PURPLE ADVANCE FLOW
SPOUT ASSY , DILUTION PLASTIC
SPOUT, BY-PASS ASSEMBLY (OLDER UNITS)
HEAT SINK ASSY DV
TRIAC, 40A 600V
KIT, DUAL VALVE WATER INLET
ELBOW, 3/8 NPT X 1/4 FLRE PLTD (OLDER UNITS)
COVER, FRONT TOP CBS
COVER, FRONT BOTTOM NO SWITCH HOLE
COVER, CENTER WRAP SS CBP
SWITCH, TOGGLE NON-LIT SPST 15A 125Vac RESISTIVE
LEG, GLIDE 3/8”-16 STUD SCREW
COVER, TOP HEATING TANK GEN USE
GASKET, TANK LID
TANK ASSY, COMPLETE TEA BREWER
KIT, PROBE, WATER LEVEL W/HEX FITTING, O-RING, NUT
ELEMENT, HEATING 1.6KW 120V W/JAM NUTS
DESCRIPTION PART № ITEM №
24
25
26
27
28
29
29A
29B
29C
30
31
32
33
34
35
36
37
38
38A
39
39A
40
41
42
43
44
45
46
47
48 WC-4394
WC-1438-101*
WC- 523*
WC-5231*
WC-5310*
TCO308A000
TCO417A000
TCO419A000
TCO421A000
WC-5683
WC-38471
WC-3724*
WC-1803
WC-3707*
WC-1805*
WC-37260*
WC-1809
WC-61709*
WC-61708
WC-4538
WC-4526
WC-8531
WC-3503*
WC-3763*
WC-3765L*
WC-85008
WC-39550
WC-3528
WC-2707
WC- 810-103 SHOCK GUARD, HEATING ELEMENT
SENSOR, TEMPERATURE TANK
THERMOSTAT, MANUAL RESET 120/220V 25A 220ºF MAX
COMPOUND SILICONE 5 OZ
TUBING, 5/16” ID X 1/8” W SILICONE
TEA CONTAINER OVAL 3 GAL 8 ½” (INCLD W/PTT BRWR)
TEA CONTAINER OVAL 4 GAL 17” (SOLD SEPARATELY)
TEA CONTAINER OVAL 4 GAL 19” (SOLD SEPARATELY)
TEA CONTAINER OVAL 4 GAL 21” (SOLD SEPARATELY)
LID ASSY, TCO
LABEL, FRONT TCO ICED TEA GENERIC
KIT, E-Z VIEW REPLACEMENT
FAUCET, SPB
KIT, REPAIR SPB FAUCET
SEAT CUP, FAUCET S’
KIT, FAUCET W/ADAPTER COMPLETE
FAUCET, HOT WATER
SHELF, SS CBS
SHELF, SS CBS (FOR UNITS BUILT BEFORE 2010)
SCREW, SHOULDER 8-32 X .25 x 3/16 LG THRD S.S.
SCREW, 8-32 x .188 SHOULDER (OLDER UNITS)
RAIL, BASE TCTD
LEG, 3/8”-16 STUD SCREW BUMPER
KIT, VALVE REPAIR USE ON WC-889 (NOT SHOWN)
KIT, INLET VALVE REPAIR FOR WC-826L (NOT SHOWN)
SUPPORT, DECK EXTENDED SS (CBP ONLY)
LABEL, BOTTOM CPB
LEG, 4” ADJUSTABLE 3/8-16 THRD ITALIAN STYLE
TEE, FLARE ¼ x ¼ x ⅜ BRASS
VALVE, CHECK 3/8 X 3/8 BARB SS WITH O-RING, SPRING
* Recommended parts to stock
DESCRIPTION PART № ITEM №

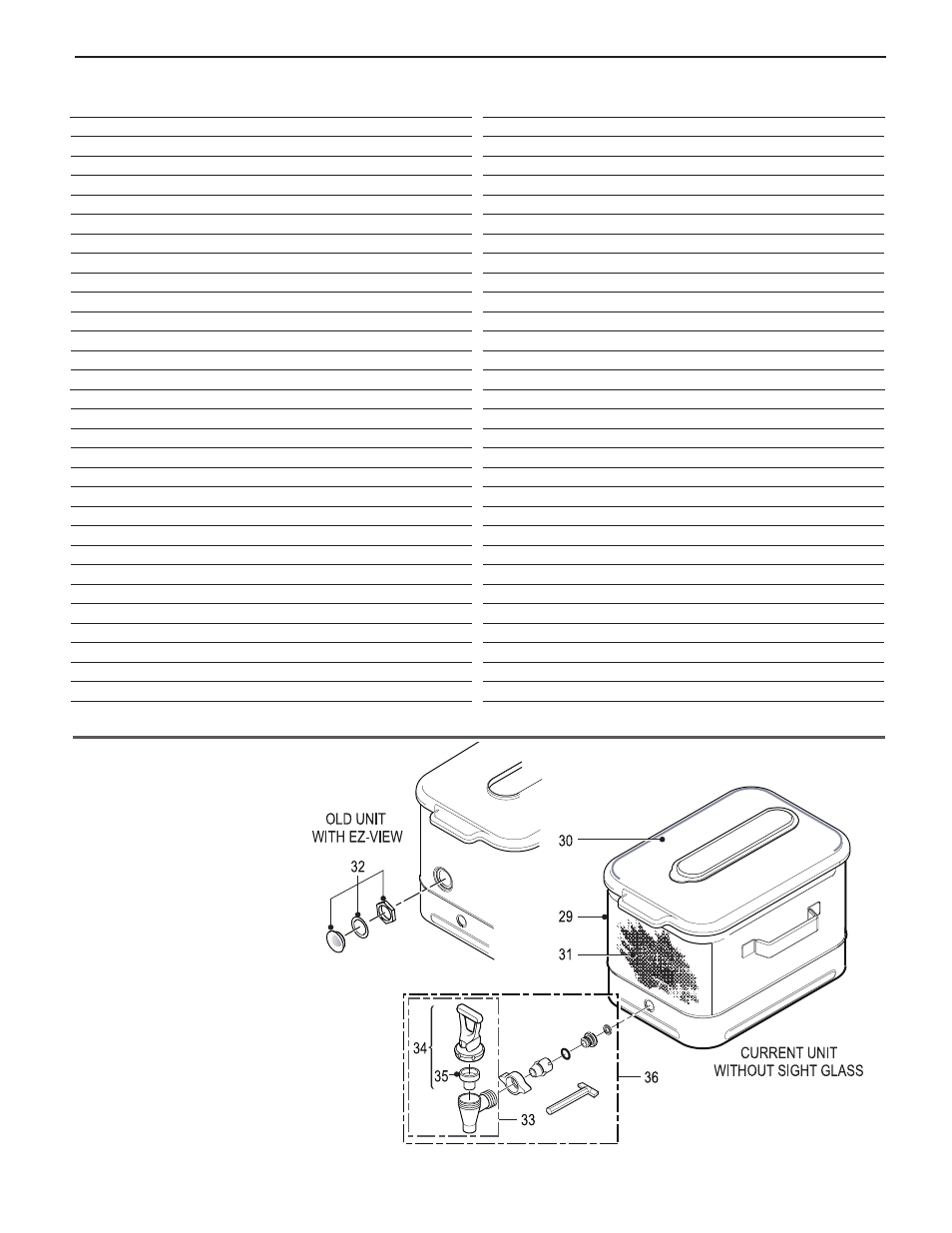

Illustrated Parts List
TCO Tea Server
Parts List
