Traditional Mode Layouts
Both previous sample layouts may be also be used in Traditional Mode (4C, 4D).

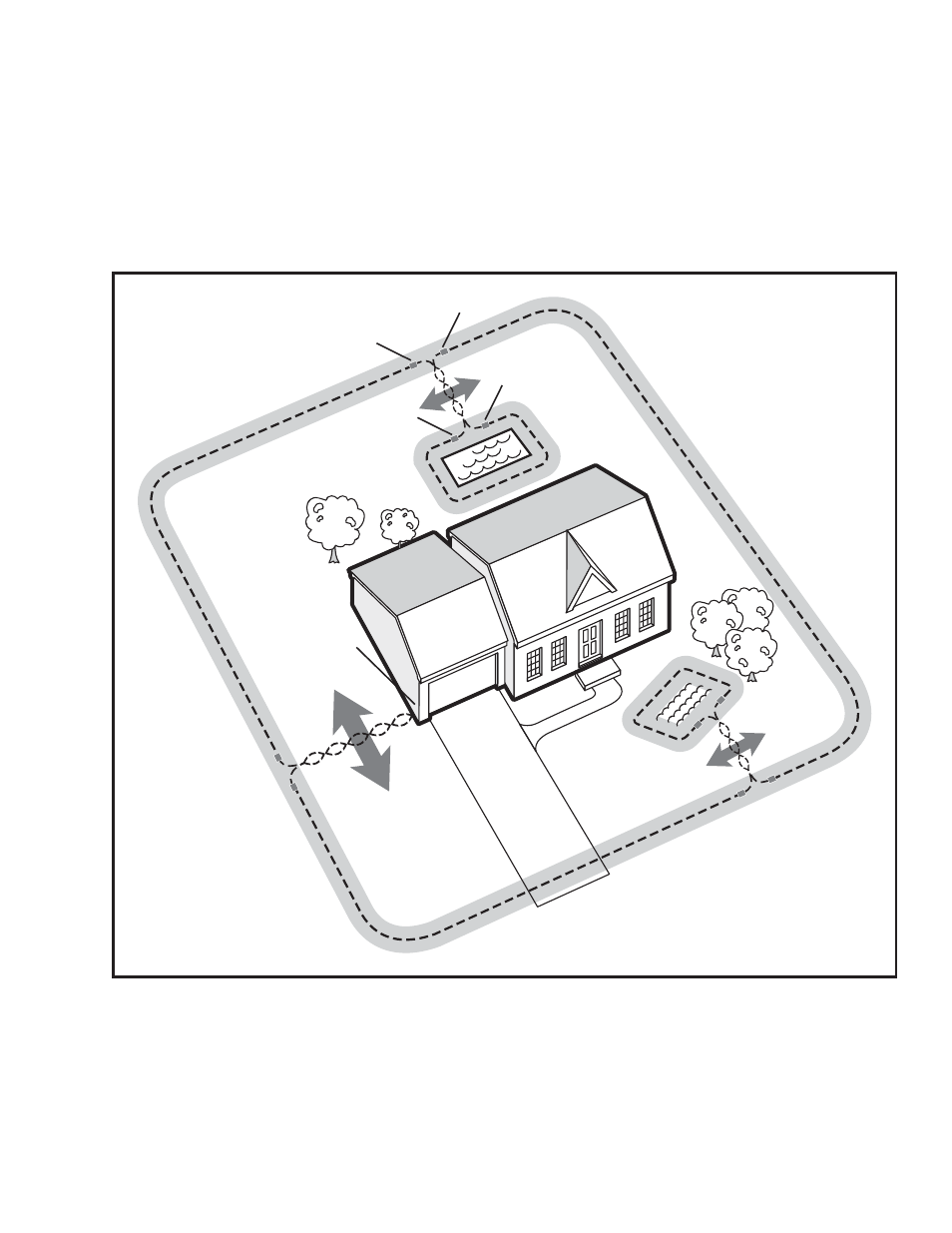

Sample 3 (4E): Perimeter Loop with Exclusion Areas (Single Loop) This layout allows you to keep your dog out
of gardens, pools or landscaping within your yard.
A Double Loop layout must be used when you are not establishing the Boundary Zone on all sides of your property.
When using a Double Loop, the Boundary Wire must be separated by a minimum of approximately 5 FEET to
avoid canceling the signal. Keep in mind that a Double Loop will require twice as much wire.
When using Traditional Mode, the Receiver Collar may be activated inside the house if the Boundary Wire runs
along the outside wall of the house. If this occurs, remove your dog’s Receiver Collar before bringing him inside,
decrease the range using the Boundary Width Dial or consider an alternative layout.
4E
Splice
Wire
Splice
Wire
Splice
Splice
Pet can
safely cross
twisted wires
Place
Transmitter
inside
