Page 4: Step 2, Step 1, Step 3, Step 4

STEP 2

Slide I5 into the grooves in I3
and I4. Push I5 all the way
forward so it meets I1. (see
Figure 2)

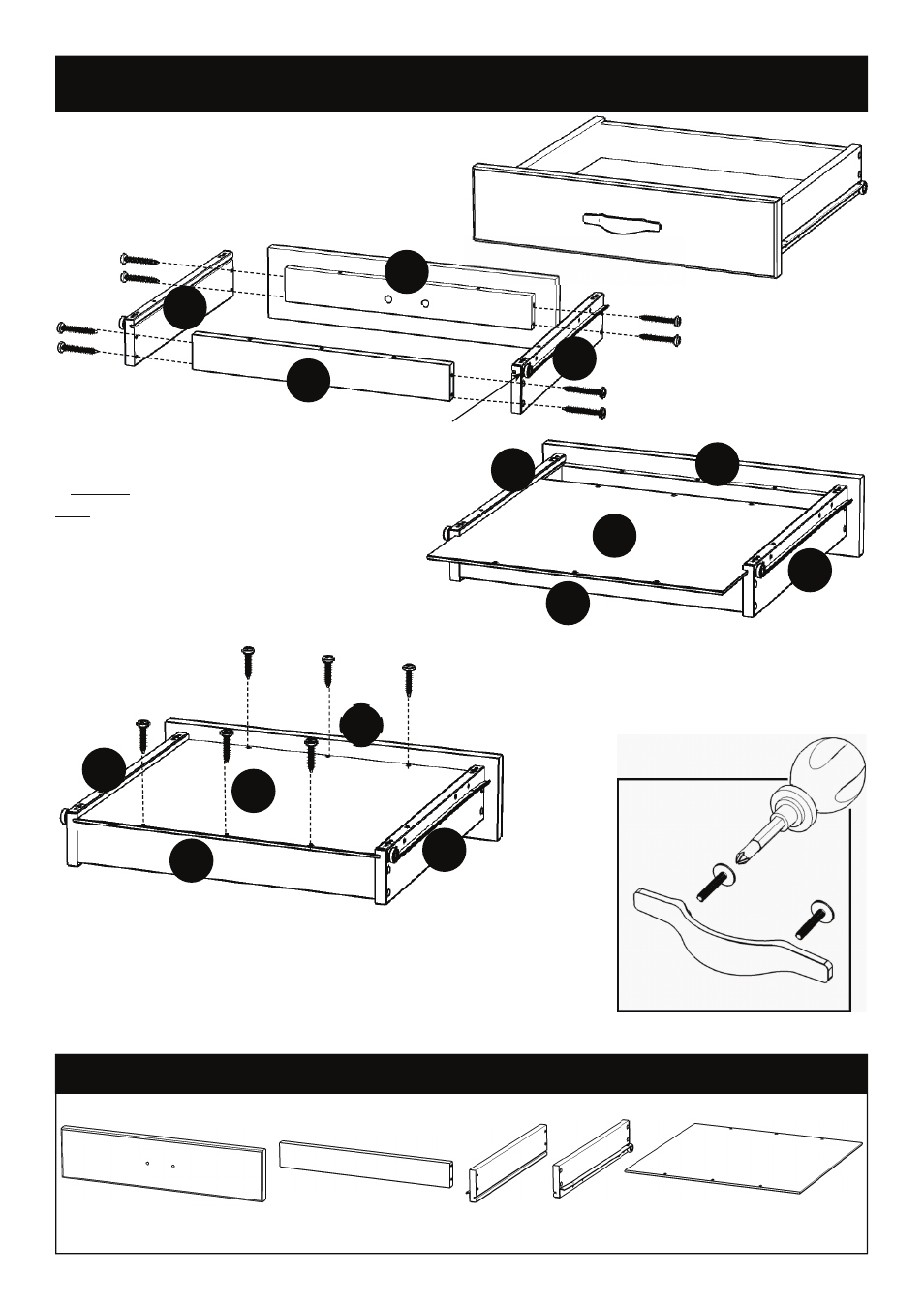

Assembly Instruction 4 / 4

Drawer (I)

Part List

I2.

Back Part

2 pcs.

I3.

Side Part

2 pcs.

I4.

Side Part

2 pcs.

I5.

Base Part

2 pcs.

I1.

Front Part

2 pcs.

STEP 1

Attach I1 to I2 and I4, using
a Phillips screwdriver and
long wood screws (4X), tighten
halfway.

Attach I2 to I3 and I4 using
long wood screws (4X), tighten
halfway. (see Figure 1)

STEP 3

Insert short wood screws (6X)
into the pre-drilled holes in I5
and tighten. (see Figure 3)

STEP 4

Assemble Pull Handle
with machine screws.
(see Figure 4)

Tighten all screws used in drawer assembly.

MAKE SURE ROLLER
IS ON THE BACK

Figure 1

Figure 2

Figure 4

Figure 3

igure 2)

Figure 4
