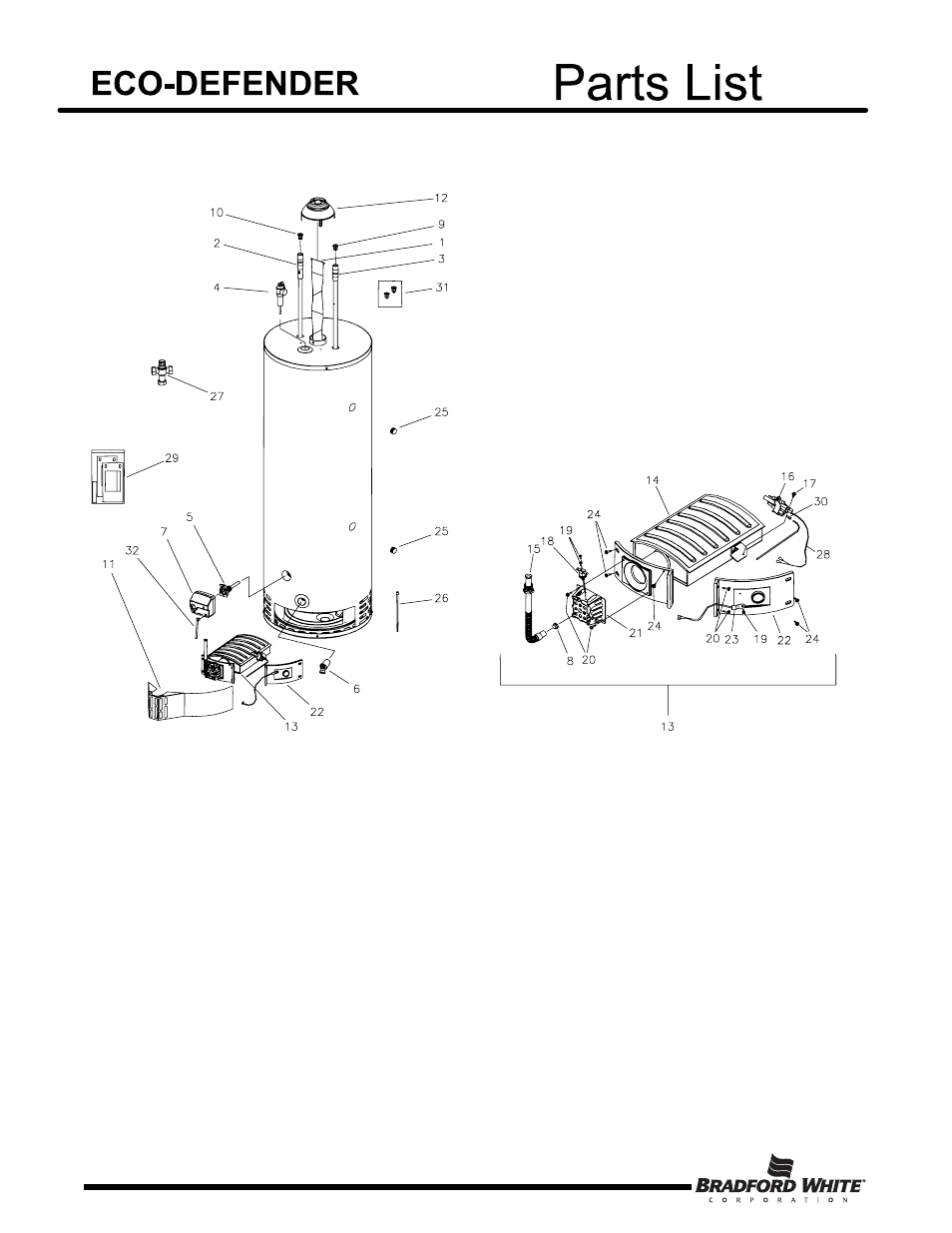

Bradford White U-65T-55FR-3N - Manual (Page 26)

1 Flue Baffle
2 Hot Water Outlet/Anode
3 Cold Water Inlet Tube
4 T&P Relief Valve
5 Thermal Well
6 Brass Drain Valve
7 Gas Valve
8 Main Burner Orifice
9 Heat Trap Inlet
10 Heat Trap Outlet
11 Outer Door
12 Draft Diverter
13 Complete Burner Assembly
14 RN Burner and Door
15 Flexible Gas Feed Line
16 Pilot Assembly
17 Screw #8-18 x ½ Hex Washer Head
18 Resettable Thermal Switch
19 Screw #6-20 x 3/8 PHCR
20 Screw #8-18 x ¾ Hex Washer Head
21 Manifold Mount
22 Complete Right Side Inner Door
23 Resistance Temperate Detector (RTD)
24 Screw #10-12 x ¾ Hex Washer Head
25 ¾ NPT Tank Plug (XR Models)
26 Wire Tie
27 ASSE Approved Mixing Valve (Optional)
28 Thermopile
29 Inner Door Gasket Set
30 Pilot Orifice
31 Kit-Heat Trap Insert
32 Intermediate Gas Valve Harness
