D
ocking the Computer
Use the following instruetions to doek the eomputer to
the C/Port APR:
1. Open the docking panel door on the back of the
compnter (see Fignre 1-5).

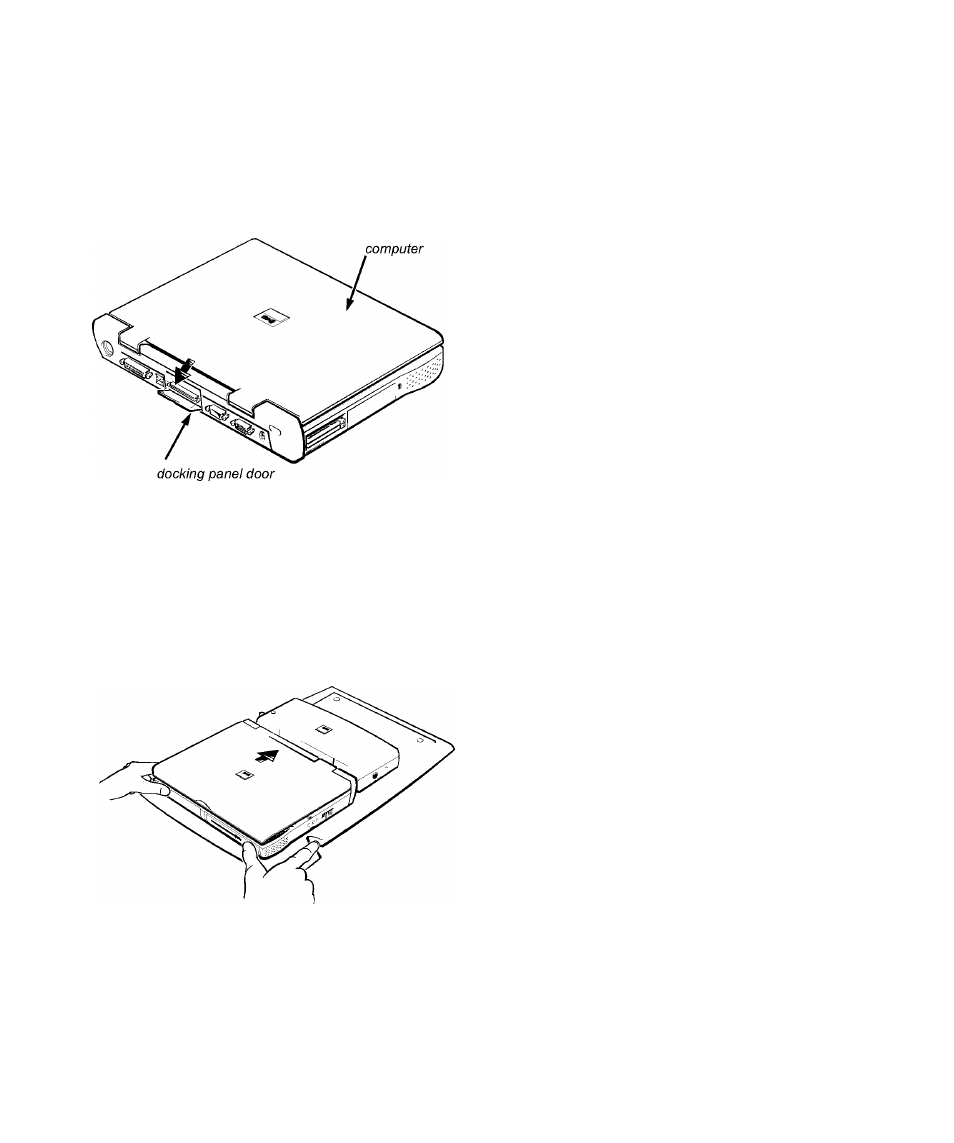

Figure 1-5. Docking Panei Door on the
Computer
First, eenter the eomputer on the doeking eontrol
base. To do this, plaee the eomputer onto the doeking
eontrol base, and align the ridges on top of the eom-
puter with the ridges on top of the C/Port APR.
When properly aligned, you should feel the guide
rails on the doeking eontrol base eonneet with the
grooves on the bottom of the eomputer.
Next, put your thumbs along the front edge of the
eomputer and your fingers in the doeking eontrol
base indents. Then push the eomputer toward the
C/Port APR gently but firmly with your thumbs. You
should hear or feel a eliek as the eateh lever loeks
into plaee. The eateh lever keeps the C/Port APR
from being aeeidentally diseonneeted from the
eomputer.
CAUTION: Do not pick np the compnter or
the C/Port APR separately when they are
connected. Doing so conld damage the I/O
connectors on the compnter and the C/Port
APR. To change the position of the C/Port
APR and the compnter,, slide or pick np the
docking control base.
2. If yon are nsing the C/Port APR with a monitor
stand, close the compnter display.
3. Dock the C/Port APR to the compnter (see
Fignre 1-6).
CAUTION: If yon are nsing an external mon­
itor with the monitor stand, remove the
monitor from the stand before moving the
docking control base into place.
Figure 1-6. Docking the Computer
You ean immediately use the network, the infrared port
(with Windows 95 and Windows 98 only), and all
deviees attaehed to the C/Port APR for whieh deviee
drivers are installed. While doeked, you ean eonneet Plug
and Play deviees to the I/O panel of the C/Port APR.
If an external monitor is attaehed to the C/Port APR and
is turned on, the sereen image appears on the external
monitor. To switeh the image to the eomputer display or
to both the monitor and the eomputer display, press
.
When the eomputer is attaehed to the C/Port APR and is
turned on, the green power indieator on the doeking
eontrol base lights up (see Figure 1-7). For more informa­
tion about the doeking eontrol base, see “Doeking
Control Base Controls and Indieators” in the following
seetion.
