Fino Installation Instructions

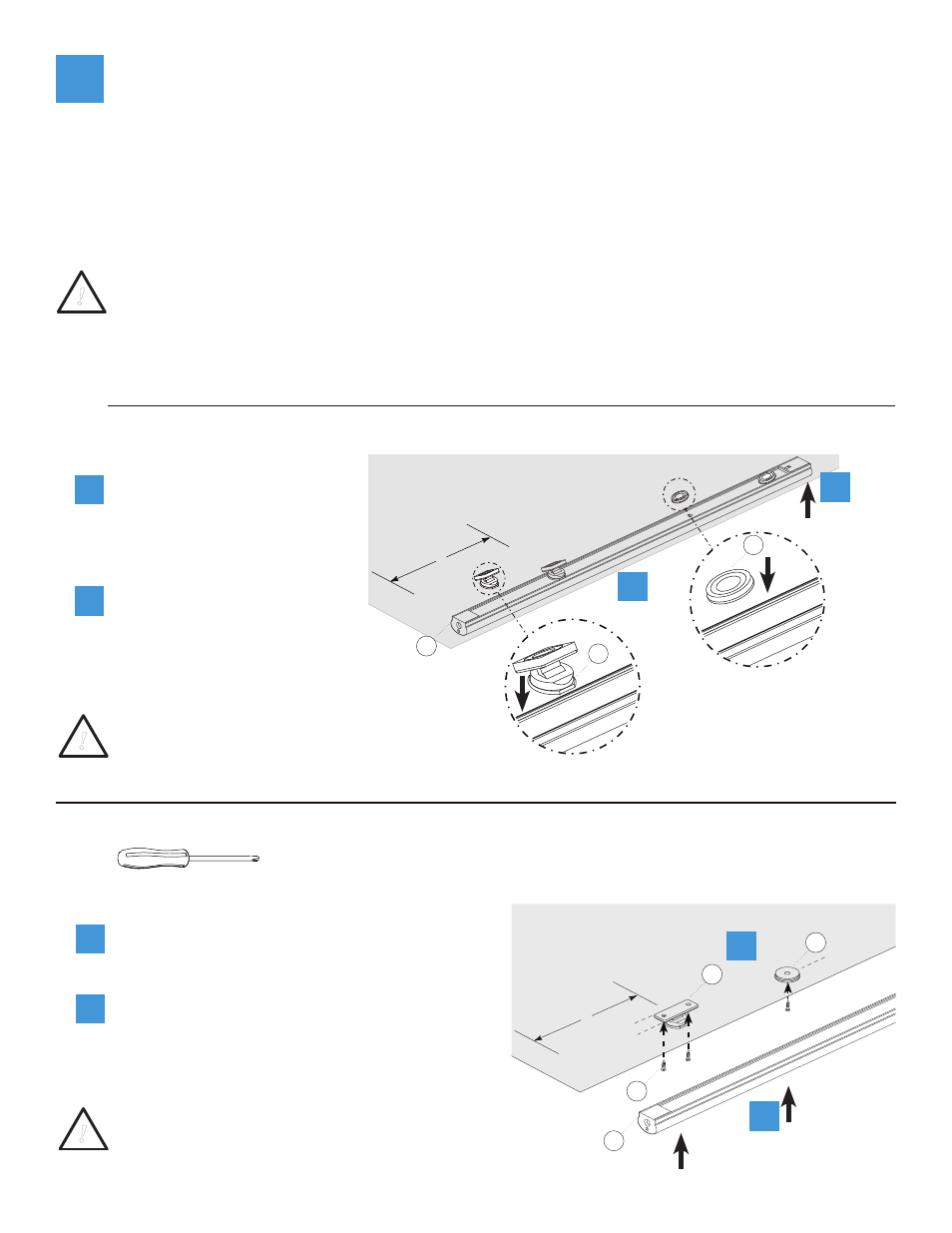

Snap Magnetic Mounts
(C or D) onto back rail. For
Rotating Mounts, orient flat
sides of Magnetic Mounts with
the length of the Fino.
Metal cabinet mounting:
2
a
OR
Under-Cabinet
Place lamp on
under-cabinet
Align at side
with back rail
Press down to
snap into rail
“SNAP”
1" - 6"
var.
a
b
“SNAP”
D
A
C
Attach Wood Mounts (E or F) to underside of
cabinet with Wood Screws. (G). If using 3 mounts,
be sure they are positioned in a straight line.
Wood cabinet mounting:
Note: You will need a Phillips-head screwdriver to complete this step.
a
Under-Cabinet
OR
Under-Cabinet
“SNAP”
“SNAP”
1" - 6"
var.
a
b
Align mounts parallel
to edges of cabinet
A
F
E
G
Note: If you are connecting an optional Master Switch, save one or two mounts for the Switch.
Secure the Master Switch to the cabinet using the same method as above. See Step 6 for details.
!
Mount Fino: Determine if light will be affixed to a metal or wood cabinet and follow
the appropriate directions below.
If installing parent unit of daisy chain, be sure to position parent unit so that it can be connected to
the additional unit with its supplied jumper cable.
Be sure to position daisy-chained unit so that it can be connected to the previous unit with its
supplied jumper cable.
b Snap Light Fixture (A) onto mounts to hold in
place.
b Attach Light Fixture (A) to
metal under-cabinet. Magnets
will hold Fino in place.
Note: If installing Daisy Chain or Master
Switch, make sure all fixtures are in line.
!
Note: If installing Daisy Chain or Master
Switch, make sure all fixtures are in line.
!
