Workrite Ergonomics | 800.959.9675 www.workriteergo.com

3

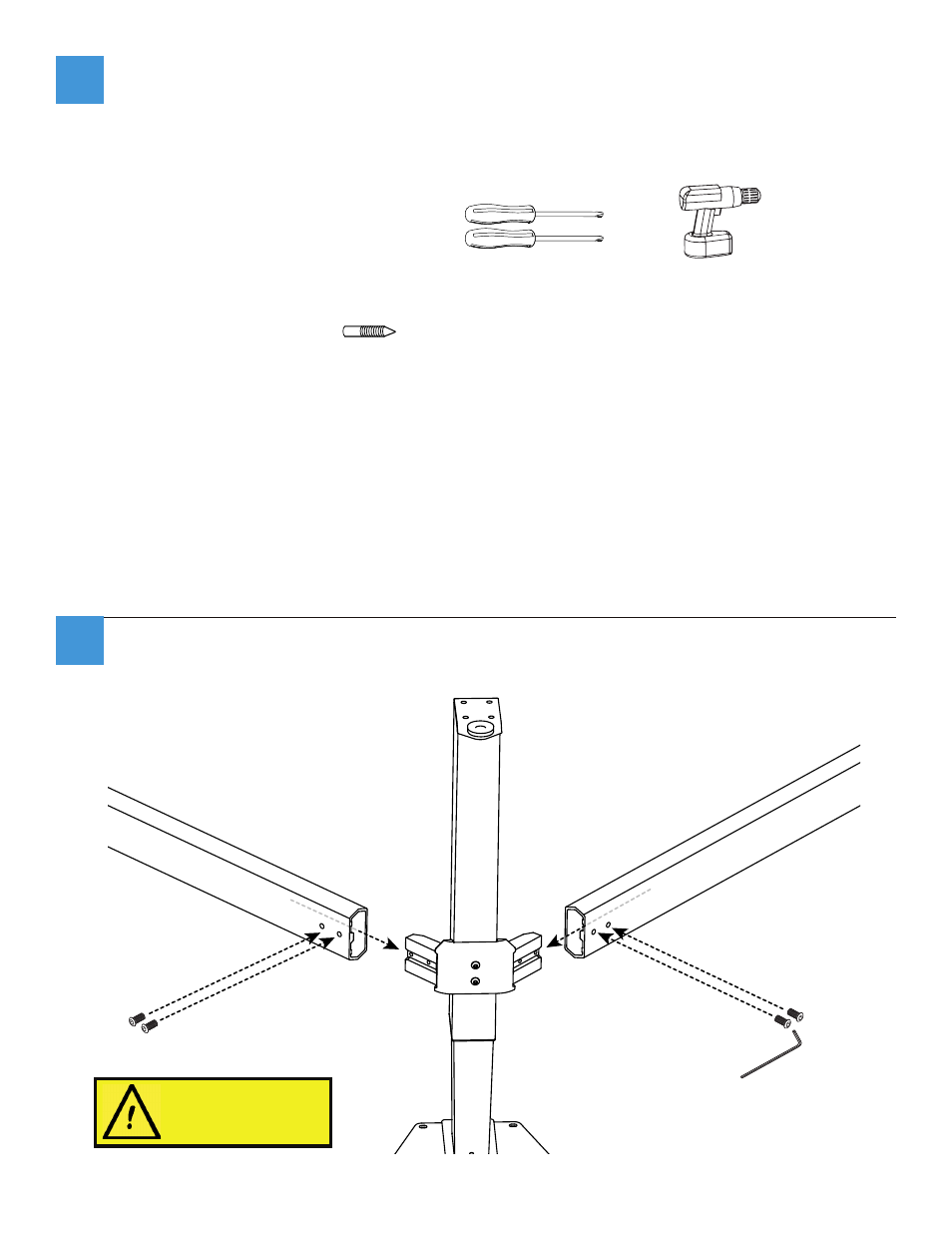

Sierra Series Workcenters - Assembly Instructions for 2 and 3-leg Tables

1

Verify that you have all the hardware and tools needed for the assembly

Check your cartons against the list on page 2 to verify that you have all the parts needed.

You will also need the following tools:

#2 tip Phillips screwdriver or drill bit

#3 tip Phillips screwdriver or drill bit

If you do not have a Workrite tabletop, you will also need a:

⅛" pilot drill bit

2

or

3-Leg Tables Only: Attach Crossbars to Center Leg Bracket using

¼-20 x ⅝" Button head Machine Screws and

5

/

32

"

Allen Wrench

For 2-Leg table assembly, please

proceed to Step 3.

To avoid stripping the threads,

always insert and make the

first few turns of the screw BY

HAND with an Allen wrench,

ensuring it is in straight.

D

C

E

E

D

F
