2

Workrite Ergonomics | 800.959.9675 www.workriteergo.com

Sierra Series Workcenters - Assembly Instructions for 2 and 3-leg Tables

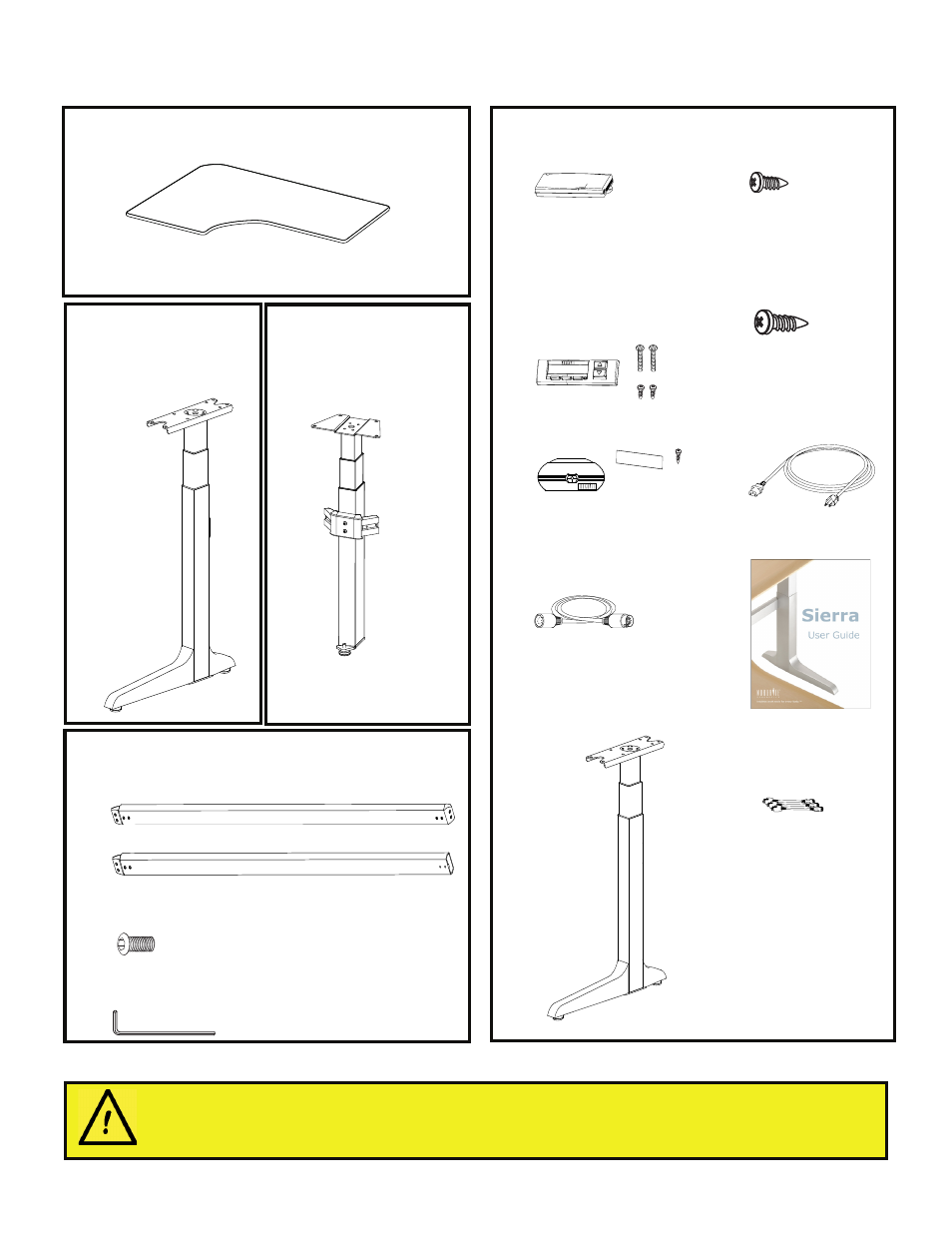

List of Parts, grouped by carton

K

Cable management kits

Qty: 2 or 3

For assembly of two-piece tops, please refer to

separate instructions.

E

¼-20 x ⅝" Button head Machine Screws

2-Leg: Qty: 4; 3-Leg: Qty: 8

F

5

/

32

" Allen Wrench

Qty: 1 per crossbar

J

#12 x ¾" Phillips

head Screws

Qty: 20

G

Control Box

Qty: 1

D

Crossbars

Qty: 1 or 2 as shown

A

Top (size and shape differ for each model)

Qty: 1

B

Side Leg with feet

and top bracket

Qty: 1

C

Center Leg with glide

support, top bracket

and crossbar bracket

Qty: 1

3-Leg Tables Only

M

Extension Cable

Qty: 1 or 2 if needed

(supplied only with large
3-leg workcenters)

N

User Guide

Qty: 1

I

Switch with 2 mount-

ing screws: #8 x 1⅛"

Machine Screws or

#8 x ¾" Phillips head

Screws

Qty: 1

L

Power cord

Qty: 1

B

Side Leg with feet

and top bracket

Qty: 1

M1

M2

M3

Important Note
You must complete initialization (Steps 12 - 13) at the end of assembly or

your table WILL NOT FUNCTION PROPERLY.

2-Leg: Qty: 1

3-Leg: Qty: 2

or

+

2

3

1

H

#8 x ⅝"Mounting

Screws

Qty: 2

O

Control Box Cables

Qty: 2 or 3

M1

M2

M3
