CHARGING INSTRUCTIONS
1. Remove instrument head.
2. Insert T-stud on the AC Charging Module into the T-slot on the Battery Section (Figure 2). Rotate
90° in either direction. T-stud will lock into place.
3. To expose prongs, depress lock Button on the AC Charging Module (Figure 1). With the Lock
Button depressed, slide Sleeve toward Rheostat Section.
4. Plug into standard (110-120v 50/60 Hz) wall outlet. Charge for 18 continuous hours to charge a
dead battery.
5. Battery may be charged after partial discharge without negatively affecting overall battery
memory (unlike Ni-Cad cells).
6. Do not attempt to use the instrument during charge, the instrument will not operate. When
charging is complete remove the handle and charger from outlet. For longest service, do not
leave AC Charging Module plugged into a power outlet without a handle attached.
7. Slide sleeve back over prongs. The Lock Button will click when prongs are fully hidden.
8. Remove AC Charging Module from the Battery Section if desired.
NOTE: The battery section is not shipped fully charged. For maximum performance charge the battery
section for 12 - 16 hours when battery section is new or after a long period of inactivity.
LOW BATTERY INDICATOR
1. The Low Battery Indicator will illuminate several minutes before handle shuts off depending on
the age of the battery (Figure 1).
2. Once the battery is fully discharged, the Low Battery Indicator may flicker.
BATTERY REPLACEMENT
Removing the old Battery Secton:
1. Hold the instrument handle firmly by the Battery Section.

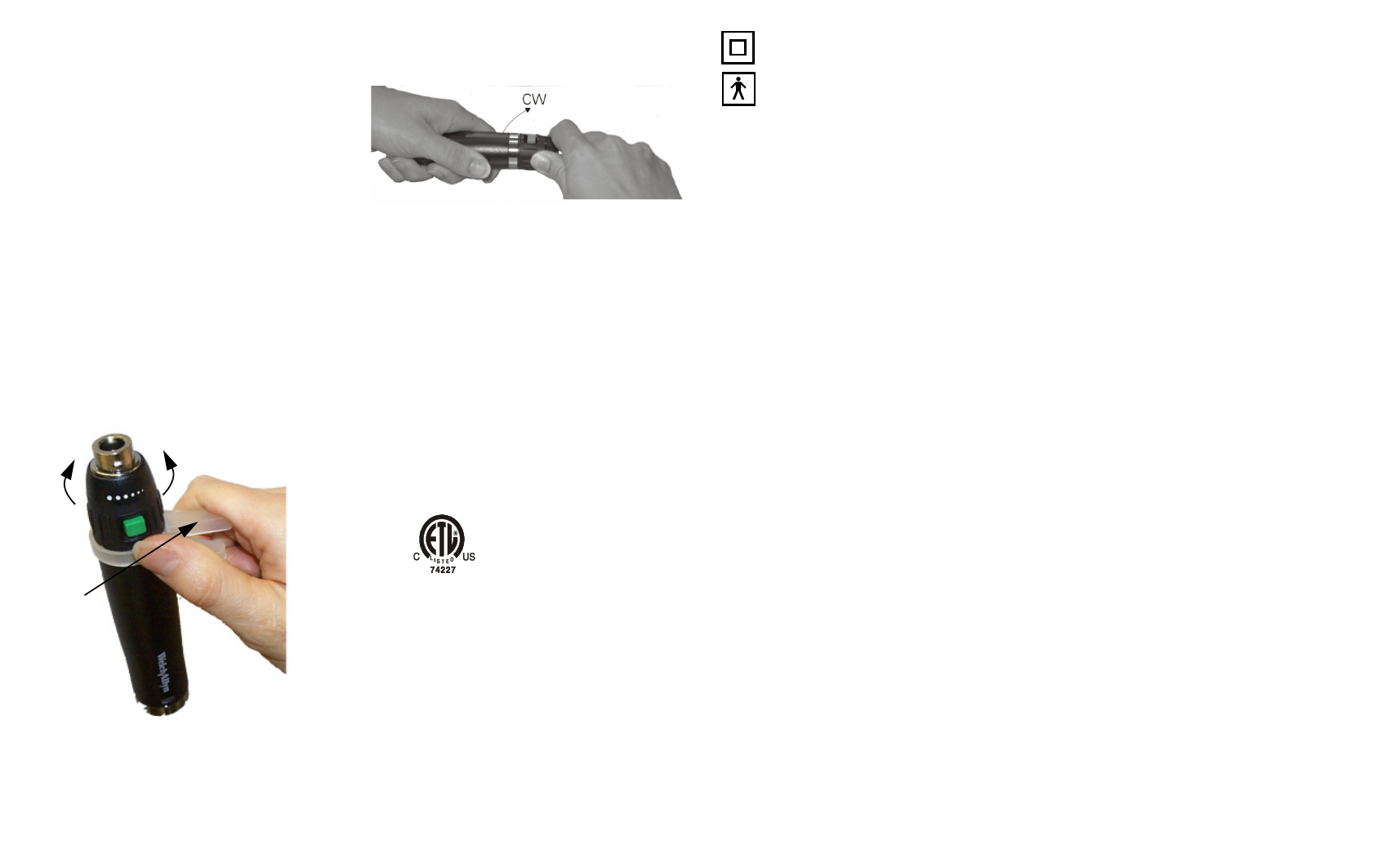

2. Place the Battery Removal Tool around the Chrome Ring, below the Rheostat Section (Figure 3).
Figure 3
3. Squeeze the arms of the Battery Removal Tool together, to obtain a grip around the Chrome
Ring.
4. While squeezing the arms of the tool together, start to turn the tool in a CW direction (when
viewed from the top). This will unthread the Battery Section from the Rheostat Section. NOTE:
only the Chrome Ring turns.
Replacing a New Battery Section
1. Insert the Rheostat Section into the new Battery Section.
2. To connect the two sections, turn the Rheostat Section clockwise until tight.
3. Verify the Rheostat Section is secure on the Battery Section of the instrument handle.
CLEANING
The cleaning of all Welch Allyn power handles can be easily accomplished by wiping the external
surface with a cloth dampened with a mild detergent and water solution, 70% isopropyl alcohol, or a
10% bleach solution (by volume). Do not immerse.
NOTE: Excess solution entering the assembly could damage internal components. Use caution to
ensure cloth is not saturated with solution.
Do not sterilize the 719 Series Power Handle.
SPECIFICATIONS
(Specifications and design may change without notice)
Model Number: 71900
Dimensions: 7.5” Long x 1.125” Diameter (Max.), 5.4” Long without AC Charging Module
Weight: 7.1 oz, 4.5 oz without AC Charging Module
Typical Charge Time: 18 hours (fully discharged)
Typical Discharge Time:110 minutes (for new battery)
Approvals:
Certified to: CAN/CSA C22.2 No. 601.1
Conforms to: UL STD 2601-1
Input Voltage: 120V~60Hz 0.17A
Equipment Classification:
Double Insulation
TYPE BF Equipment.
Equipment not protected against the ingress of water.
Continuous Operation
NOTE: This product complies with current required standards for electromagnetic
interference and should not present problems to other equipment or be affected by
other devices. As a precaution, avoid using this device in close proximity to other
equipment.
Environment: Transport/Storage: -20°C ~ 49°C, 95% R.H. Max, 500hPa - 1060hPa, Altitude
Operating:
10°C ~ 40°C, 95% R.H. Max, 500hPa - 1060hPa, Altitude
SERVICE AND WARRANTY
Service
For customers in North America, please return instruments requiring service to a Welch Allyn Technical
Service Department listed below or to an authorized Welch Allyn Technical Service Department.
Technical Service Department
Welch Allyn, Inc.
4341 State Street Road
Skaneateles Falls, NY 13153-0220
Telephone: 1-800-535-6663
Fax: 315-685-4653 (Technical Services)
In Canada:
Telephone: 1-800-561-8797
Fax: 905-890-0008.
Warranty
The 719 series Power Handle is guaranteed by Welch Allyn against all manufacturing defects. Welch
Allyn will repair or replace, free of charge, any parts of its own manufacture proven to be defective
through causes other than misuse, neglect, damage in shipment, or normal wear.
Welch Allyn warrants that the Welch Allyn 71960 Battery Section will perform to original specifications
during the two years from the date of manufacture, when used with the Welch Allyn 719 series Power
Handle. This warranty does not apply to the use of the 71960 battery in other products. A defective
battery will be replaced if it fails within two years of the date of manufacture.
Battery Recycling
Welch Allyn now employs the services of an agency which can disassemble and recycle all components
of rechargeable batteries so that nothing gets landfilled or incinerated. Should you wish to dispose of
your expended Welch Allyn rechargeable battery via recycling (in the U.S. and Canada only), please
send to:
Welch Allyn Welch Allyn Canada
RECYCLE BATTERY RECYCLE BATTERY
4341 State Street Road 160 Matheson Blvd. East
Skaneateles Falls, NY Mississauga, Ontario
13153-0220 CANADA L4Z 1V4
For locations outside the U.S. and Canada consult your local recycling authority for correct disposal of
batteries.
