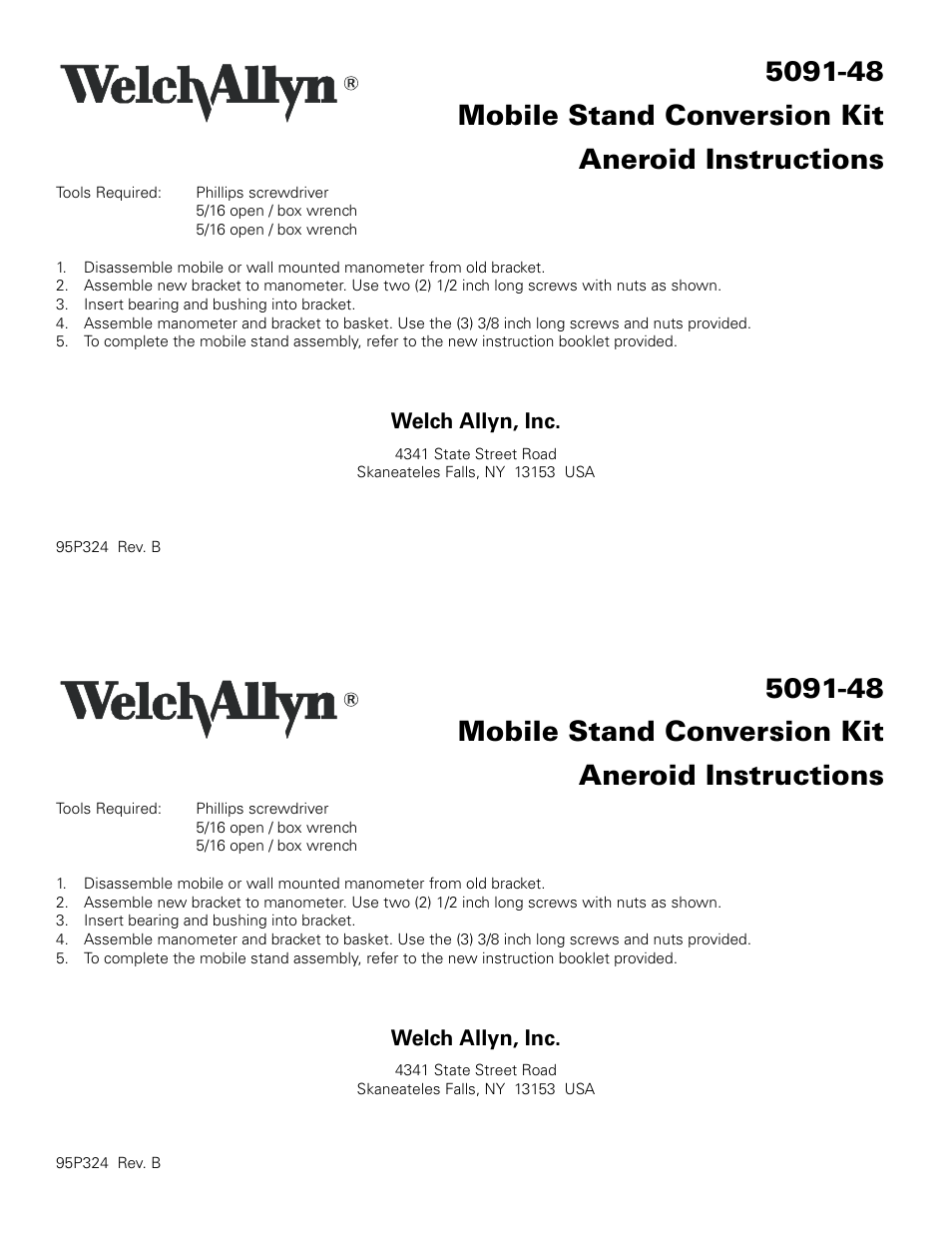

- 5091-48
- Mobile Stand Conversion Kit
- Aneroid Instructions
- 1. Disassemble mobile or wall mounted manometer from old bracket.
- 2. Assemble new bracket to manometer. Use two (2) 1/2 inch long screws with nuts as shown.
- 3. Insert bearing and bushing into bracket.
- 4. Assemble manometer and bracket to basket. Use the (3) 3/8 inch long screws and nuts provided.
- 5. To complete the mobile stand assembly, refer to the new instruction booklet provided.
- Welch Allyn, Inc.
- 4341 State Street Road
- Skaneateles Falls, NY 13153 USA
- 5091-48
- Mobile Stand Conversion Kit
- Aneroid Instructions
- 1. Disassemble mobile or wall mounted manometer from old bracket.
- 2. Assemble new bracket to manometer. Use two (2) 1/2 inch long screws with nuts as shown.
- 3. Insert bearing and bushing into bracket.
- 4. Assemble manometer and bracket to basket. Use the (3) 3/8 inch long screws and nuts provided.
- 5. To complete the mobile stand assembly, refer to the new instruction booklet provided.
- Welch Allyn, Inc.
