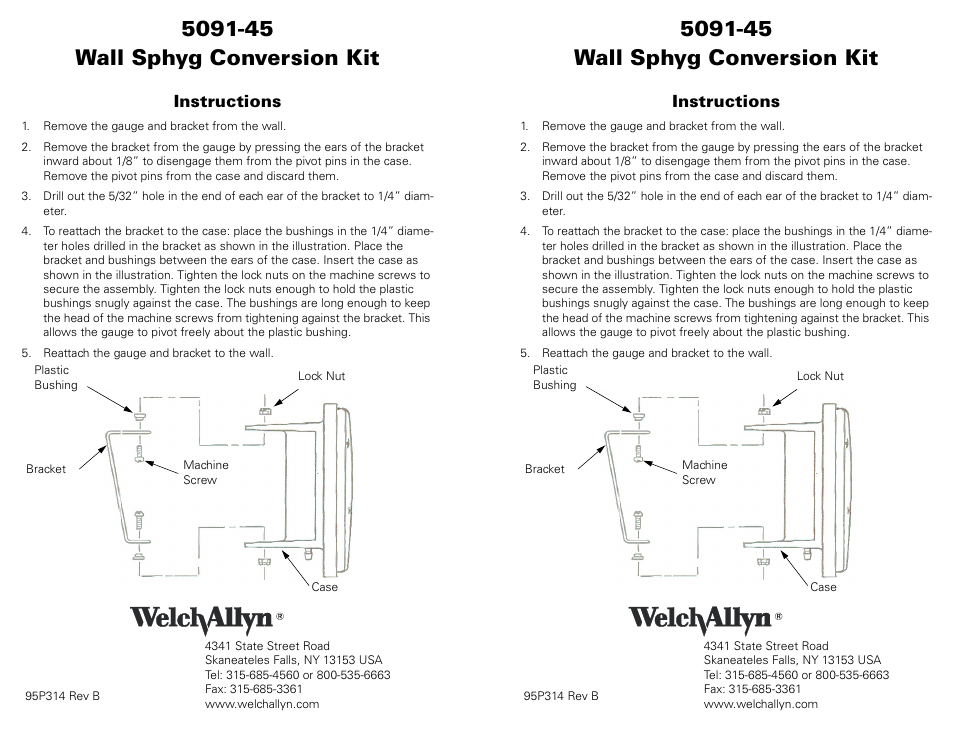

- 5091-45
- Wall Sphyg Conversion Kit
- Instructions
- 1. Remove the gauge and bracket from the wall.
- 2. Remove the bracket from the gauge by pressing the ears of the bracket inward about 1/8” to disengage them from the pivot pins in the case. Remove the pivot pins from the case and discard them.
- 3. Drill out the 5/32” hole in the end of each ear of the bracket to 1/4” diameter.
- 4. To reattach the bracket to the case: place the bushings in the 1/4” diameter holes drilled in the bracket as shown in the ill...
- 5. Reattach the gauge and bracket to the wall.
- Instructions
- 5091-45
- Wall Sphyg Conversion Kit
- Instructions
- 1. Remove the gauge and bracket from the wall.
- 2. Remove the bracket from the gauge by pressing the ears of the bracket inward about 1/8” to disengage them from the pivot pins in the case. Remove the pivot pins from the case and discard them.
- 3. Drill out the 5/32” hole in the end of each ear of the bracket to 1/4” diameter.
- 4. To reattach the bracket to the case: place the bushings in the 1/4” diameter holes drilled in the bracket as shown in the ill...
- 5. Reattach the gauge and bracket to the wall.
