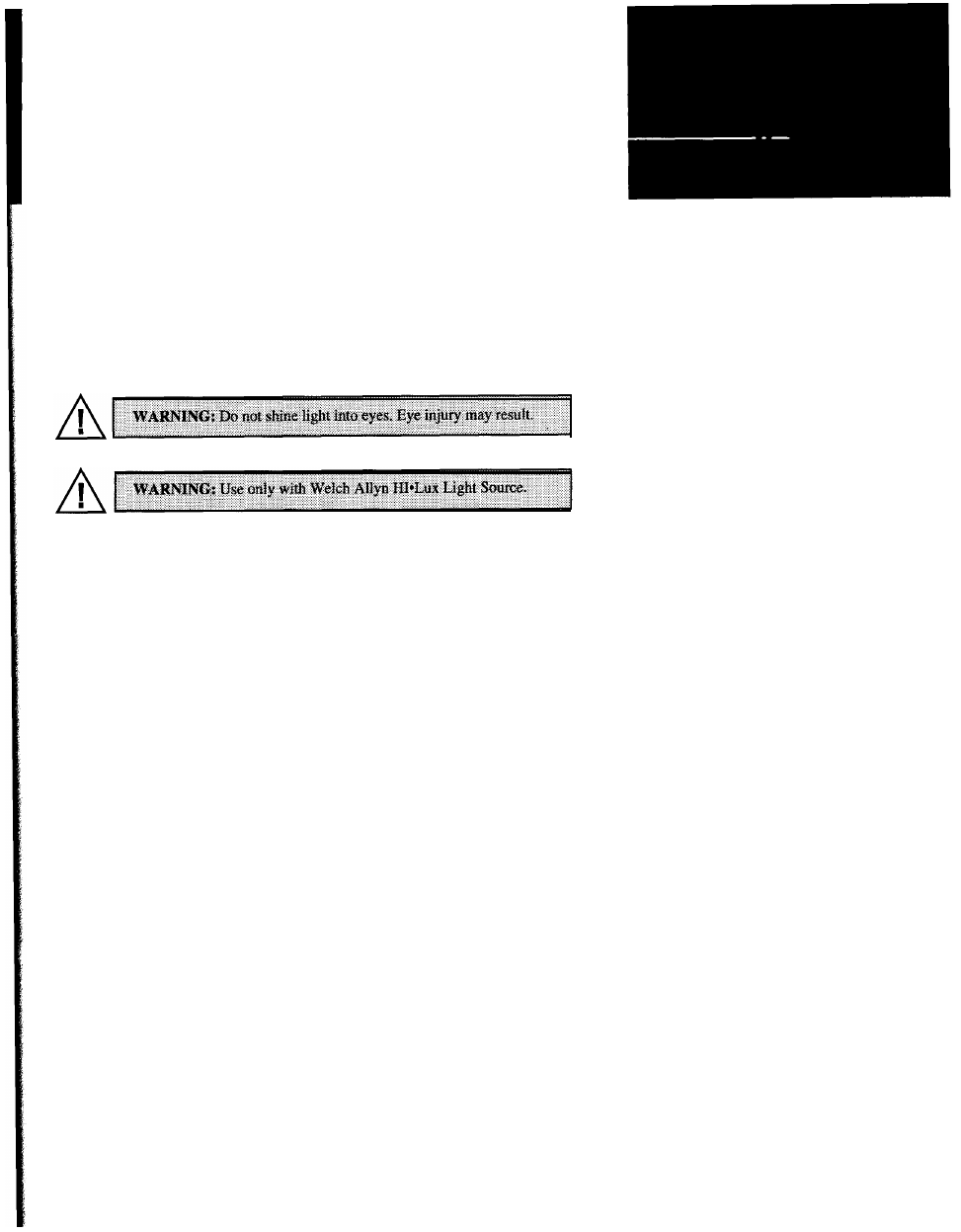

HEADLIGHT ASSEMBLY

1. Carefully remove fiber optic bundle from plastic bag.

2. Carefully remove headlight assembly from plastic bag.

3. Insert fiber optic bundle distal end into luminaire.

4. Drape fiber optic bundle over top of headband. Align marks on fiber optic

bundle with clips attached to top and back of headband. Press bundle into

clips.

5. Turn light source intensity down to minimum. Insert fiber optic bundle

proximal end into light source port.

6. Turn light source on. Adjust light intensity as desired.

Note: Refer to Welch Allyn HI

Lux Light Source owner’s manual for instructions

on operating light source.

HEADLIGHT OPERATION:

1. Adjust size of illumination spot by turning grooved dial on luminaire. Spot

size ranges from.75in to 3in (20mm to 75mm) in diameter with a 16in (40cm)
working distance.
