DuraShock is the first and only gear-free, shock-resistant aneroid
sphygmomanometer technology. We expect you will receive years of trouble free
operation from this product.

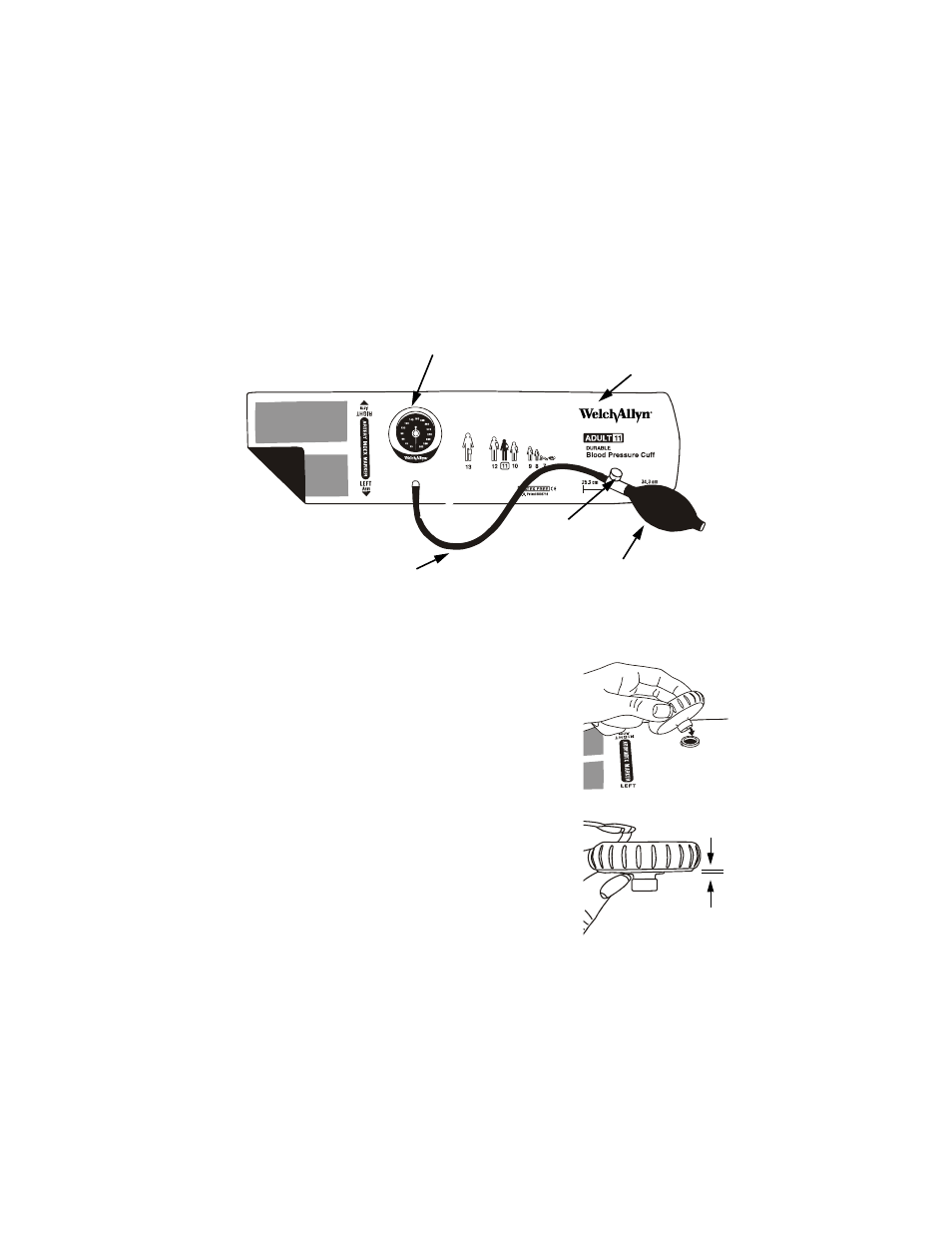

Components of the Welch Allyn DuraShock Integrated
Aneroid Sphygmomanometer
Assembly Instructions
1. Attach the gauge to the cuff by pressing the gauge
stem into the cuff port until you feel it engage. The
gauge can be rotated 360° in the cuff port to improve
your view of the dial face during readings.
2. Push the remaining smaller-diameter barb of the valve
onto the tube.
NOTE: To assemble the bumper to a Welch Allyn
DuraShock integrated gauge (model DS44 only), gently slide
bumper over the gauge until the bumper just contacts the
crystal around the entire circumference. Do not force to the
point where the bumper shape is deformed, as this will
reduce the shock-resistant properties of the bumper.
Properly assembled, about 1/16-inch (2 mm) of the gauge
will be visible below the bumper when viewed from the
side (see illustration).
Gear-free Gauge
Snaps into Cuff
Integrated One-
Piece Cuff
Valve
Inflation Bulb
Tubing
1/16 inch
