Battery Replacement
Caution: The battery handle must be
disconnected from the
supply when removing
batteries.
When a rechargeable battery will no longer
accept a charge, replace as follows:
1. Unscrew bottom cap.
2. Shake out old battery.
3. Insert replacement battery Important:
Please note battery polarity (see figure).
Caution: Insert battery fully until
seated.
For Models 71000 and 71020 (non-convertible, rechargeable handles
with self-contained charger), insure that plastic insulator cap is intact
and securely seated on spring. If missing, or damaged, install new cap
before using.
NOTE: For 719 series power handles, please consult the battery
replacement instructions and caution statements provided
with that equipment.
Warning:
1. Only a Welch Allyn Battery is to be used. Do not use any other
non-rechargeable battery.
2. Batteries must be removed prior to disposal of product.
3. Used batteries are to be disposed of safely and in accordance with
local disposal requirements.
4. If leaking batteries are encountered, use protective equipment
when handling batteries to avoid contact of battery fluids with the
skin. Then dispose of batteries safely in accordance with local
authorities.
R
E
C
H
A
R
G
E
A
B
LE
B
A
T
T
E
R
Y
3.
5
V
O
L
T
S
C
A
T
A
L
O
G
N
O
. 72
300
+
-

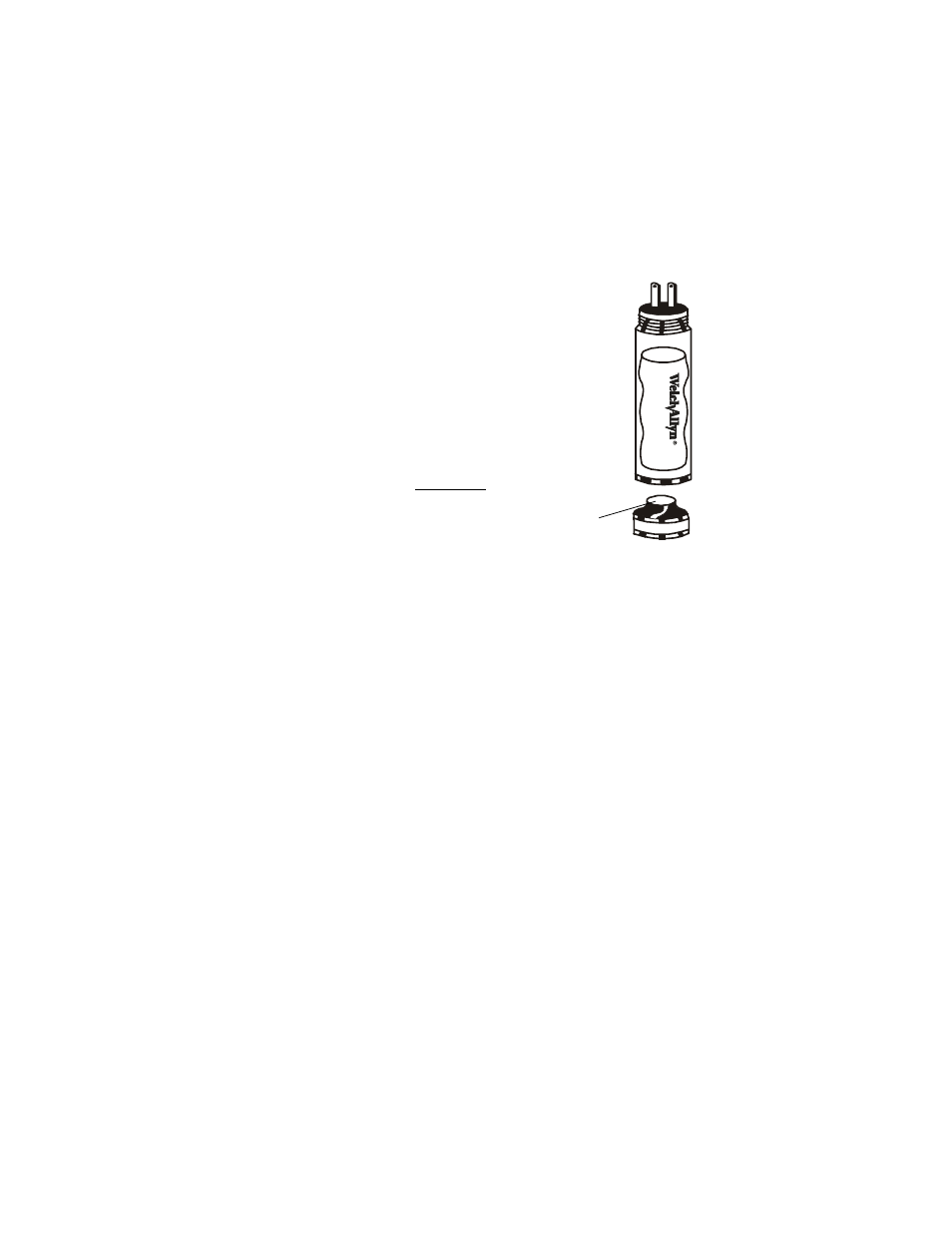

Non-Convertible
Handle
Plastic
Insulator
Cap
