18

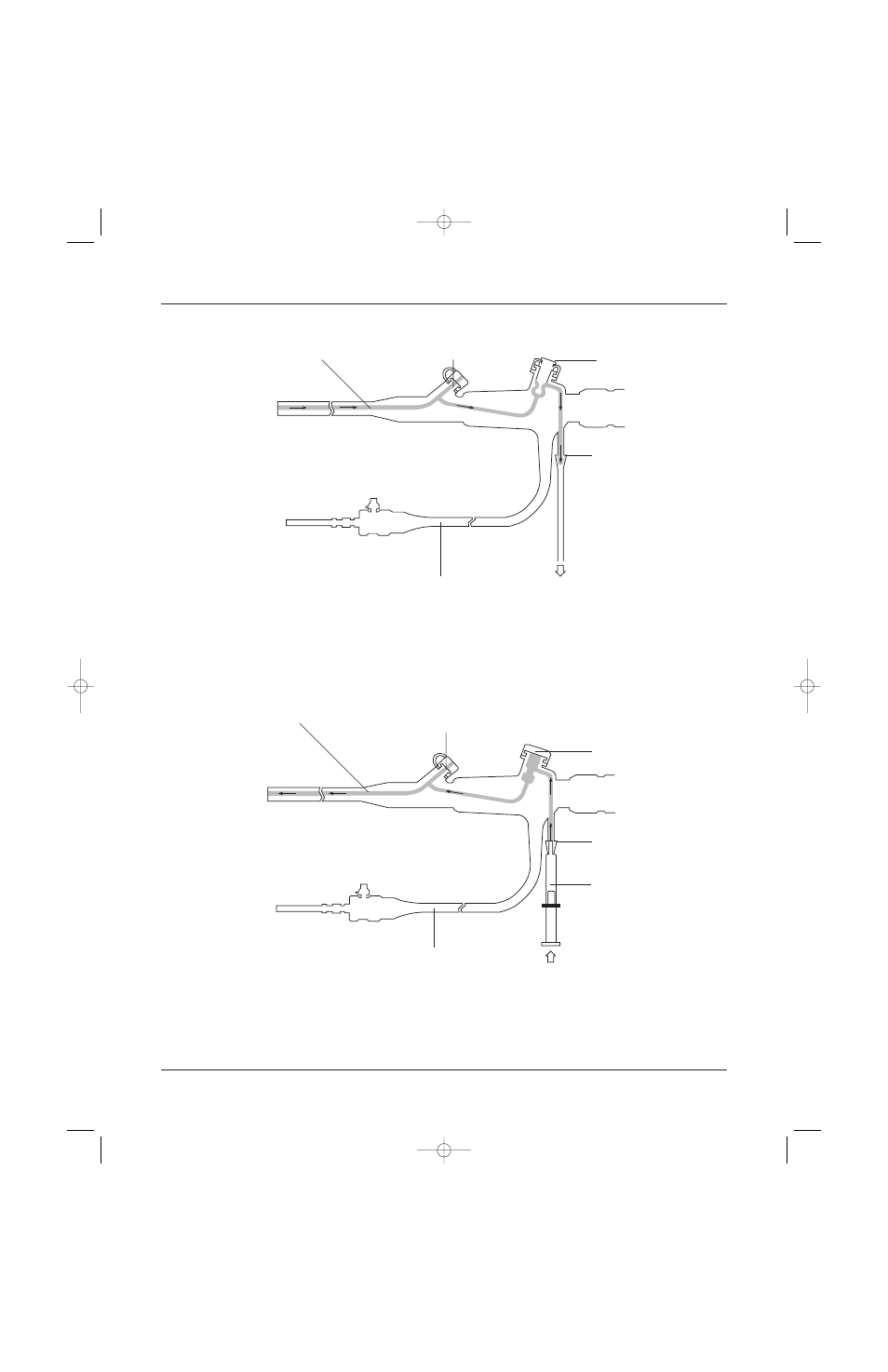

INTERNAL SCHEMATIC OF THE WELCH ALLYN FL-100 INTUBATING FIBERSCOPE
The illustration above shows the entire accessory/suction channel system in the Welch Allyn
FL-100 Intubating Fiberscope.
NOTE: All surface areas of the suction system must first be cleaned with an enzymatic detergent and
then exposed to a high-level disinfectant or sterilant.
INTERNAL SCHEMATIC SHOWING COMPLETE CLEANING/DISINFECTING SYSTEM
To reprocess the Welch Allyn FL-100 Intubating Fiberscope, first an enzymatic detergent and then a high-level
disinfectant or sterilant must be used. All internal lumens and all external instrument surfaces and scope compo-
nents (inlet seal, suction control valve, etc.) need to be exposed to detergent and disinfectant/sterilant. Exposure
times of detergent and disinfectant/sterilant must be strictly adhered to.
NOTE: All solution entrance ports and flow pathways are illustrated above.
Accessory/Suction Channel Accessory/Suction Channel Inlet
Suction Cylinder Control Valve
To Suction Source Umbilical Cord
Suction Nipple
Luer-Slip Syringe
with
Cleaning/Disinfecting
Solution
Accessory/Suction Channel Accessory/Suction Channel Inlet
Suction Cylinder Closure Cap
Umbilical Cord
Suction Nipple
