Studio VR Connection

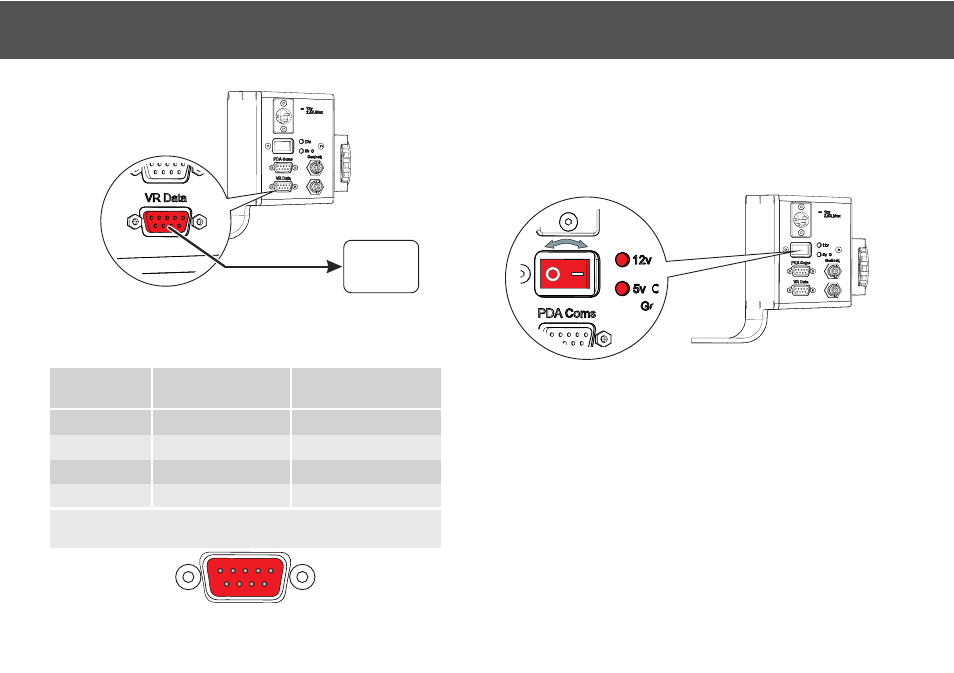

VR Data Port Pin Designations.
The VR Data port transmits the VR data to the studio VR graphics
system. The RS422 pin designations are as follows:
Powering Up
Before powering up the HPM, ensure that all external cable
connections have been secured correctly.
To power up, operate the on/off switch. The 5V and 12V LEDs will
illuminate.
If the 5V and 12V LEDs do not illuminate, refer to the Troubleshooting
section of this manual.
Studio VR
graphics
system
1 2 3 4 5
6 7 8 9
VR Connector
Pin Number
Function on VR
Connector
Function on VR Studio
System
2 RXD-/RXA TXD-/TXA
6 RXD+/RXB TXD+/TXB
3 TXD-/TXA RXD-/RXA
7 TXD+/TXB RXD+/RXB
Note: Pin number allocations at the VR studio system end are
product-specific.
