Changing a fuse
1.
Switch OFF power to the head [13].
2.
Carefully insert a small, blunt screwdriver or similar tool into the side of the fuse
compartment [12] and lever out.
3.
Lift out the fuse compartment (Fig. 17).
4.
Replace the failed fuse, then replace the fuse compartment, pushing it firmly into place.
5.
Switch ON power to the head.

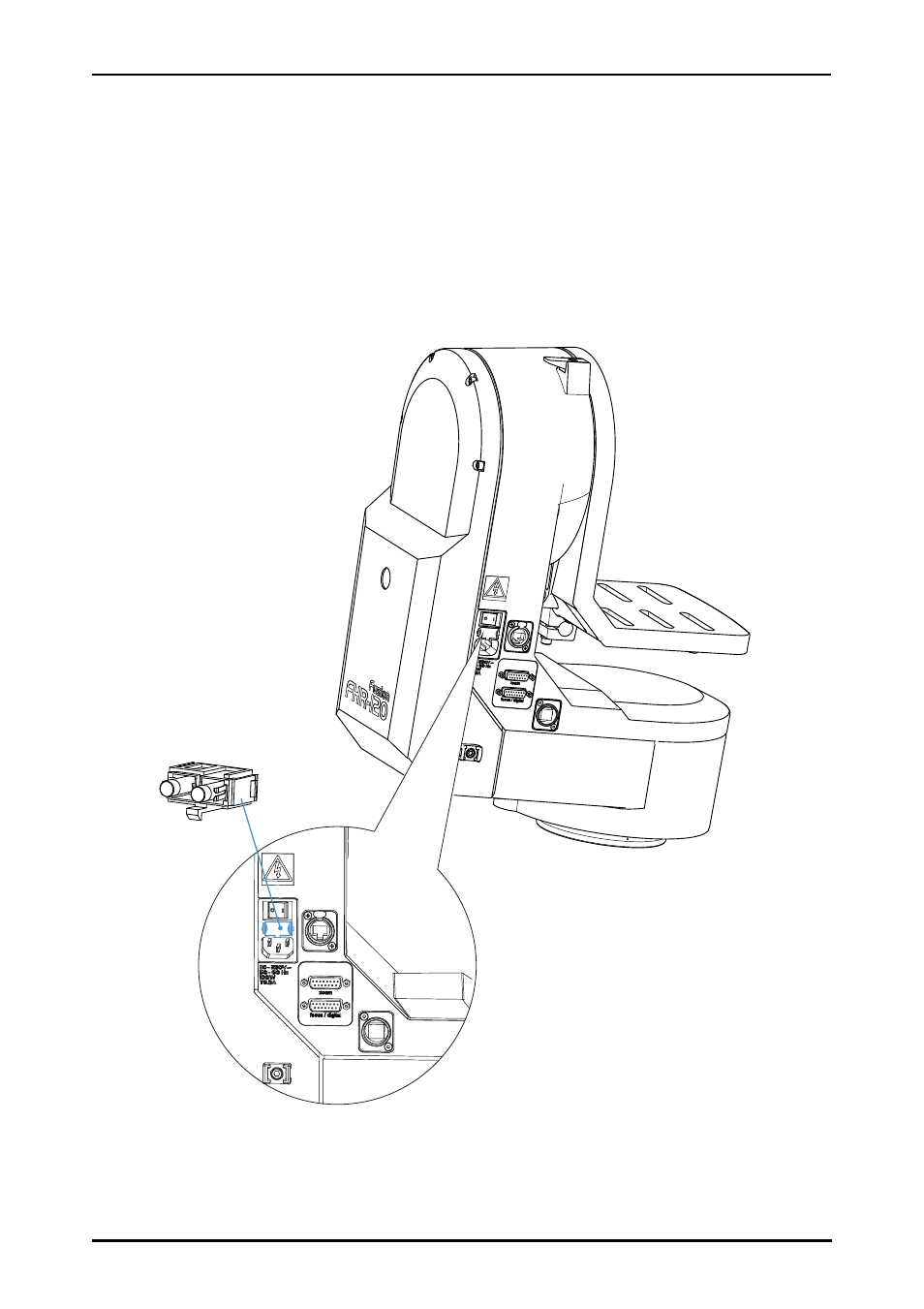

Fig. 17 Fuse compartment
