Fusion FHR-120 robotic pan and tilt heads
30
To engage the tilt lock, proceed as follows:
1. Steady and hold the camera cradle [1] in the horizontal position.
2. Lift the tilt lock button upward whilst gentle rocking the camera cradle side-to-side,
until the button latches (see Fig. 14).
To release the tilt lock, proceed as follows:
1. Gently rock the camera cradle side-to-side whilst pushing down on the tilt lock button.
Operating the head using the Vinten Radamec Control
Panel
When operating the head from the control panel, the PTZF joystick is used to move the camera
about the pan and tilt axes and control the camera lens focus and zoom. The camera must be
selected on the control panel before the head can be operated using the joystick.
The control of the pan movements using the joystick are shown in Fig. 15 and tilt movements are
shown in Fig. 16 below.
WARNING!
Ensure that the head is in view and clear from personnel and hazards
before attempting to operate the equipment.

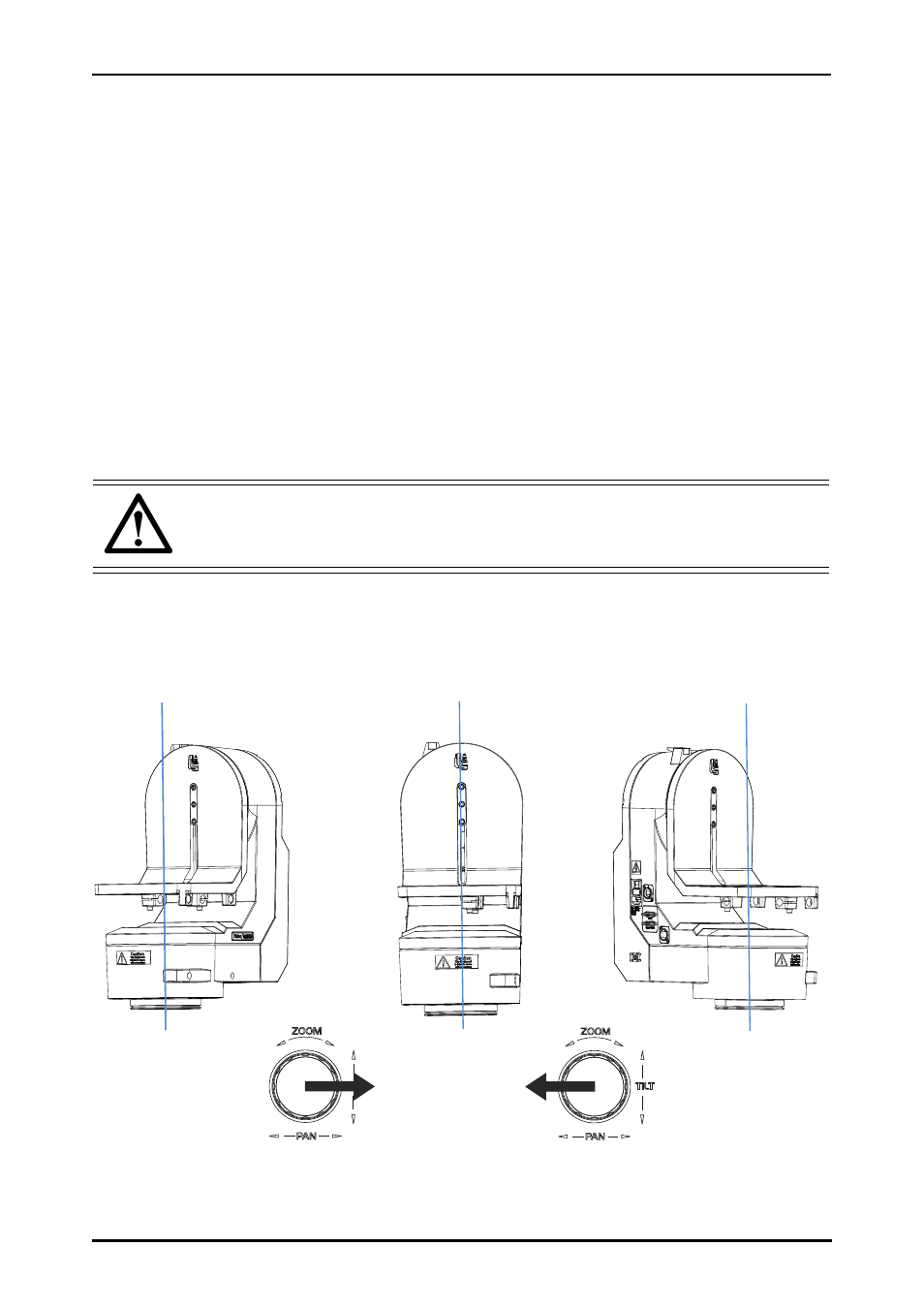

Fig. 15 Controlling pan movements using the joystick
Pan right Pan left
Move joystick to the
right to pan right
Move joystick to the
left to pan left
Zero pan
