Vinten Radamec Fusion FCS-16 User Manual
Page 38
36

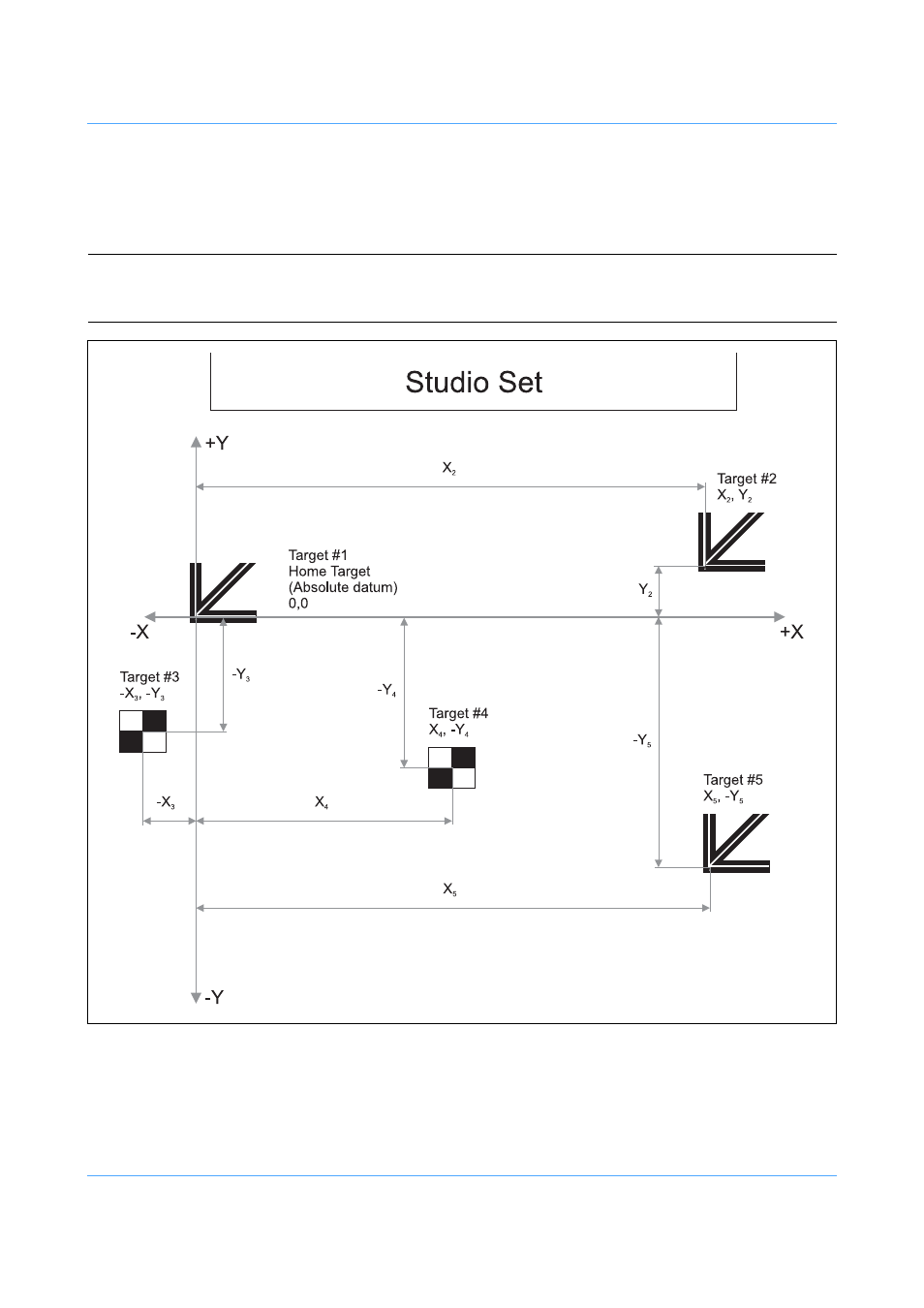

The diagram in (Fig 9) shows the sign convention for determining positive and negative measurements from
the absolute datum 0,0. Distances to the right of target #1 will be ‘+’ X, and distances to the left will be ‘-’ X.
Similarly, positions forward of target #1 will be ‘+’ Y, and those to the rear of target #1 will be ‘-’ Y.
Note:
Although not essential, it is simpler if the datum target 0,0 is the left most target. Also, it is
simpler if the targets are in a straight line from left to right so that all the Y offset values
are zero.
Fig 9 Multiple target configuration
