Dimensional drawing (all dimensions in inches) – Vintage Cellars Wine Guardian Humidifier Manual User Manual
Page 6
6
Strainer – conical shaped stainless steel screen in a plastic frame to capture any sediment in the
water and keep it from plugging the orifice.
Water solenoid valve – opens and closes to control the flow of water into the distribution trough
on signal from the humidistat.

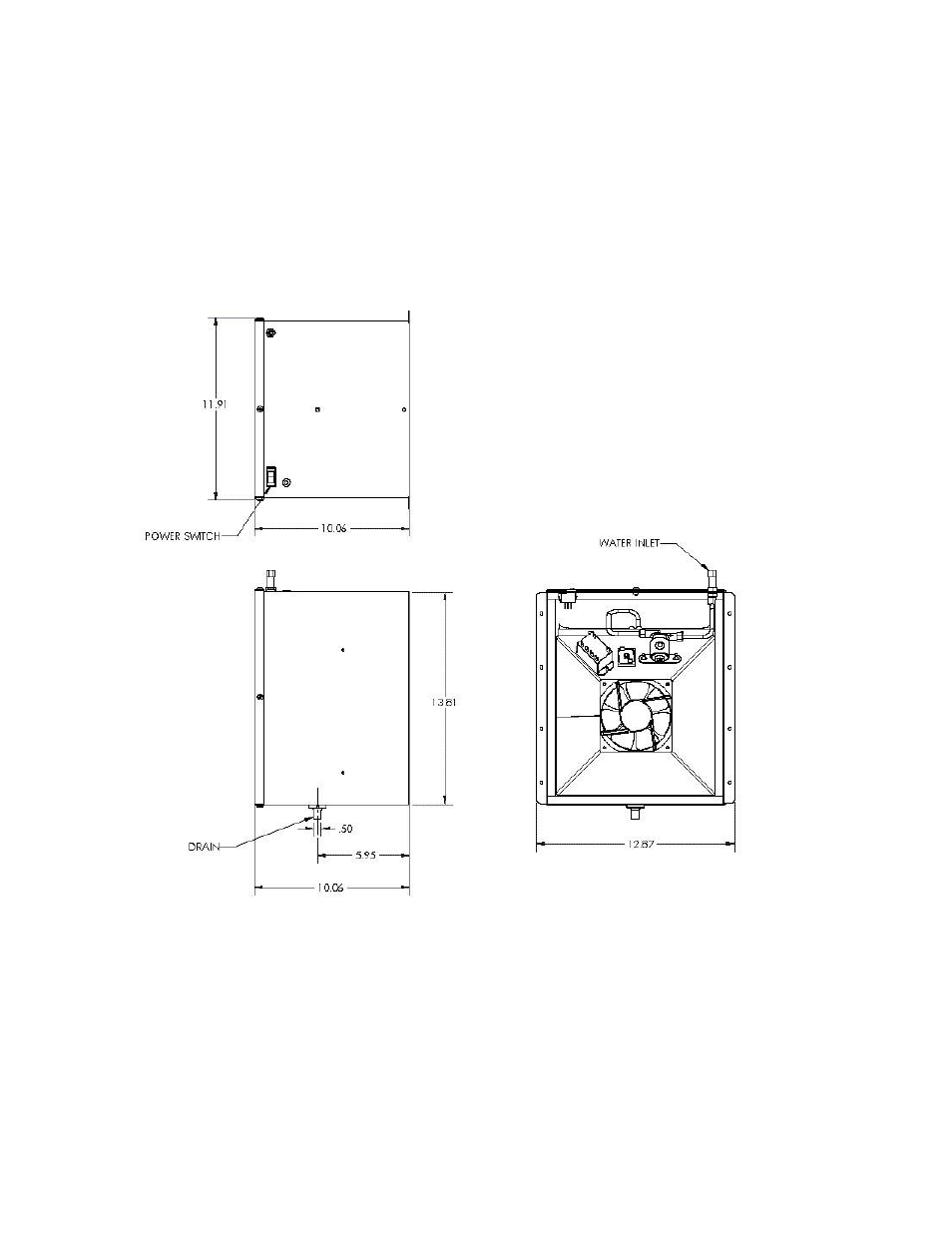

Dimensional Drawing
(All dimensions in inches)
Figure 1.0
