www.whisperkool.com | Page 13
PREPARING THE UNIT FOR INSTALLATION
Applying Insulation Tape
Locate the four pre-cut pieces of black foam tape included with the unit, two larger
pieces and two smaller pieces. To apply, simply peel back the white-paper adhesive
covering and place on the mounting bracket. The large pieces are applied to the top and
bottom, while the smaller pieces are for the sides. This foam creates a tight seal between
the bracket and the wall.
Single Piece Mounting Bracket
The XLT Plus utilizes a single piece mounting bracket. This sturdy bracket frames the
installation location and secures the unit to the wall.
Mounting Bracket Installation

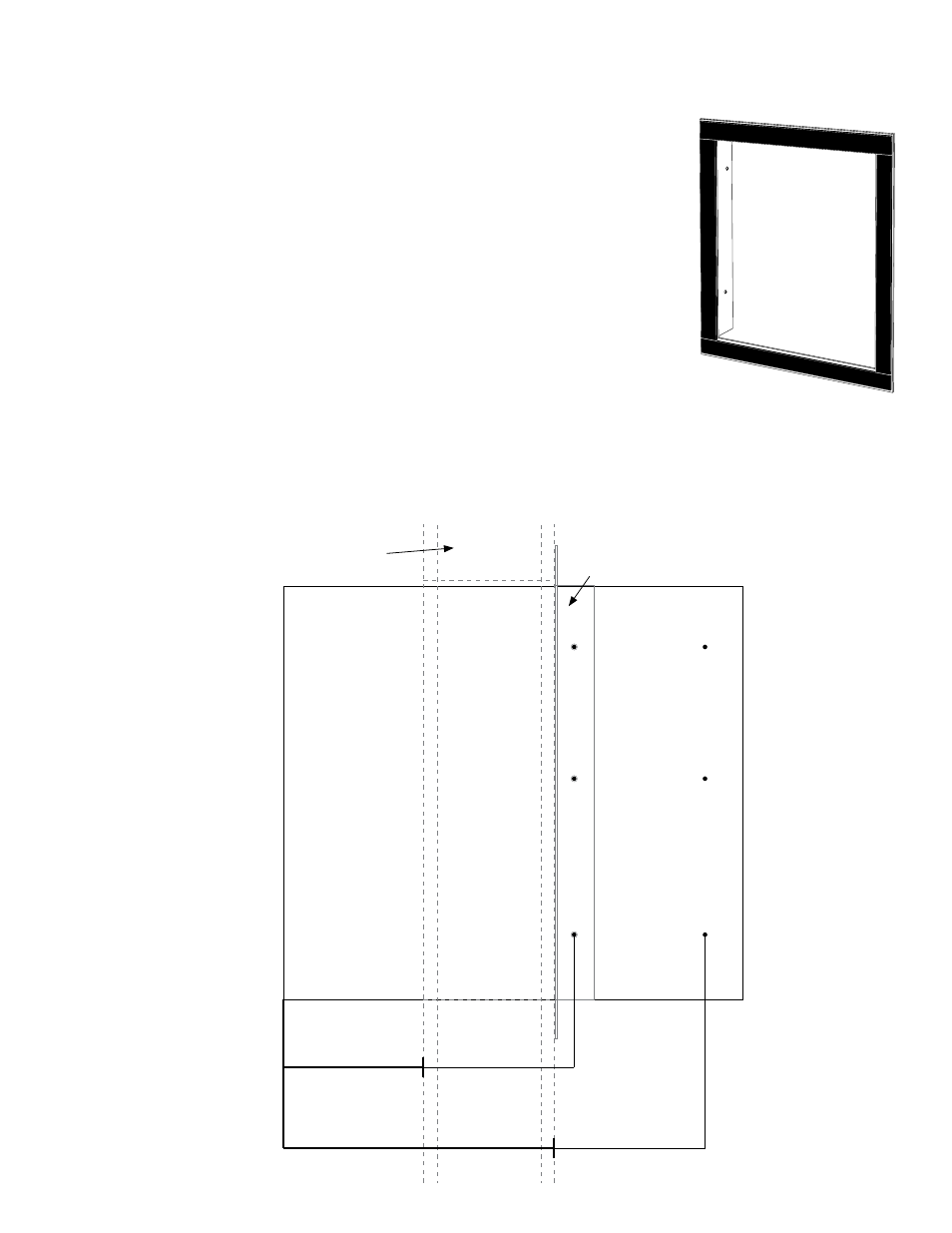

Select your desired bracket mounting location (see diagram below). This location
determines the depth of the installation. For example, position #1 keeps most of the unit
out of the cellar while position #2 makes the back of the unit near flush on the exterior wall. Slide the bracket onto the
unit, paying special attention to the flanges for mounting to the unit. Make sure they are pointing towards the back.
For the 2000i, 3000i, and 4000i Models, use the six 1/2” self tappers to fasten the bracket to the unit. It is imperative not
to use self tapping screws longer than 1/2” in length. For the 6000i/8000i Models, use the six 3/8” self-tappers to fasten
the bracket to the unit. It is imperative not to use self tapping screws longer than 3/8” in length.
2000i/3000i/4000i
5–6 inches In Cellar
6000i/8000i
9.5–10.5 inches In Cellar
2000i/3000i/4000i
9–10 inches In Cellar
6000i/8000i
14–15 inches In Cellar
# 1
# 1
# 2
# 2
5” inch thick wall
(wall thickness may vary)
Mounting Bracket
Wine Cellar Exhaust Area
