28 Nomad RFID Reader Setup Guide

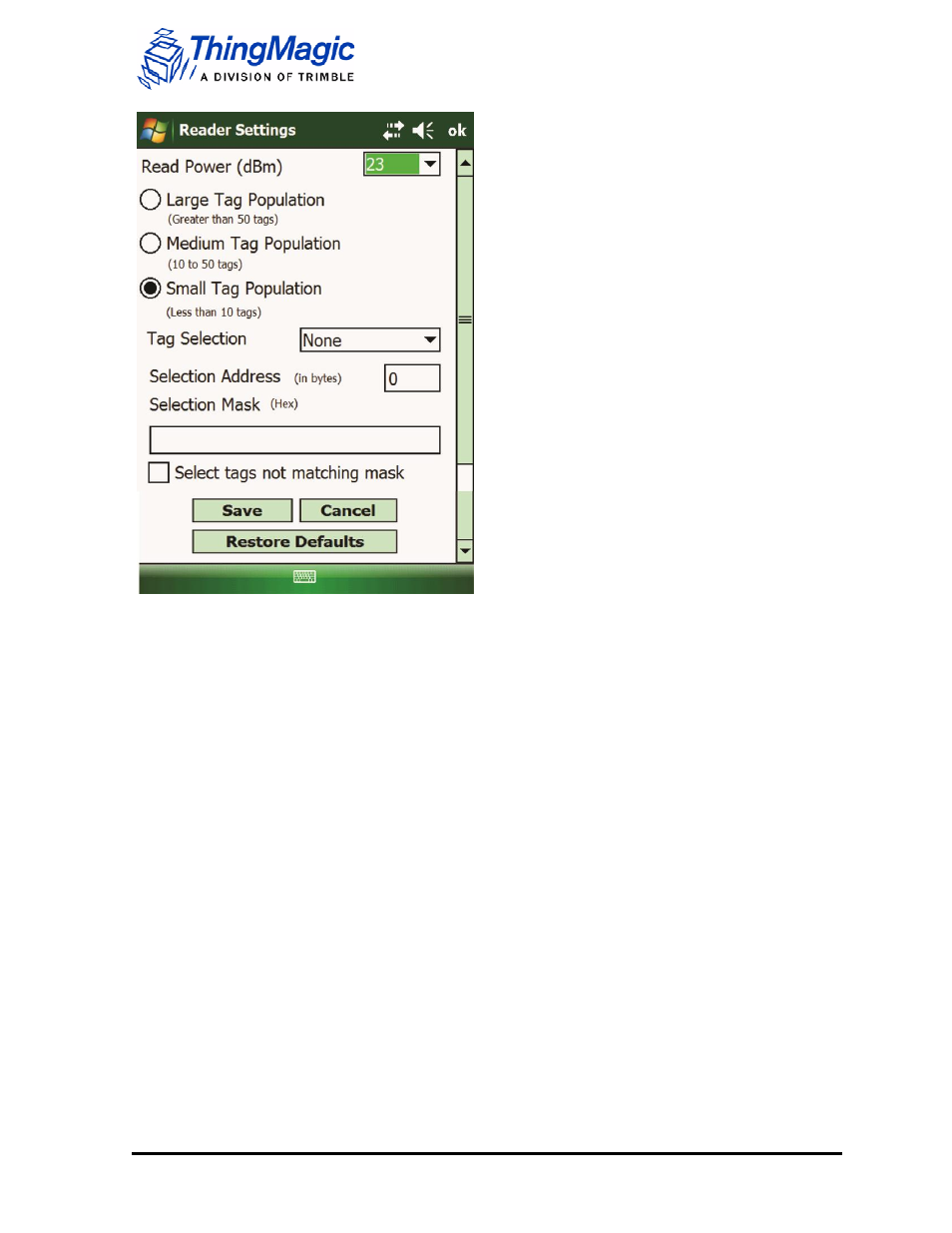

Reader Settings window
1. Click on the Read Power box. A down menu displays.
2. Click on the appropriate power setting. Higher values represent longer read
distances. 23dBm provides the maximum possible read distance.
Setting the Tag Population Size
Click on one of the three tag population radio buttons.
This next section deals with setting the type of tags you want to find (EPC, TIC, or User
Data), where in the field you want to start (this requires that you have some knowledge of the
field itself before reading the tags), and further limiting the data set to a specific tag or tag
numbers (identifiers). Finally, the last option is a checkbox that allows you to invert the data
set, that is, you can choose to see the data for the reads not displayed.
