The Query will be run on all connected antennas (checked antennas) in the default
configuration. If
| Antenna Detection = Off
then the antennas to
query on must be selected. The query can be run once or continuously.
4.
Click ʻStop Readingʼ to end the search.
Note
You must click Stop Reading and Disconnect before exiting. Otherwise, the Reader
will continue to transmit RF energy on its antennas and other clients maybe
blocked.
Query Results
As shown in Figure 15, the default displayed tag results shows the following columns of
data:
# - The order each tag was read.
EPC - The EPC ID of the tag, typically 96-bits of data shown in Hex.
ReadCount -
The number of times the tag was read on [Antenna].
Antenna -
The antenna on with the tag was read. If the same tag is read on more than
one antenna there will be a tag entry for each antenna on which the tag was read.
Protocol - The protocol of the tag.

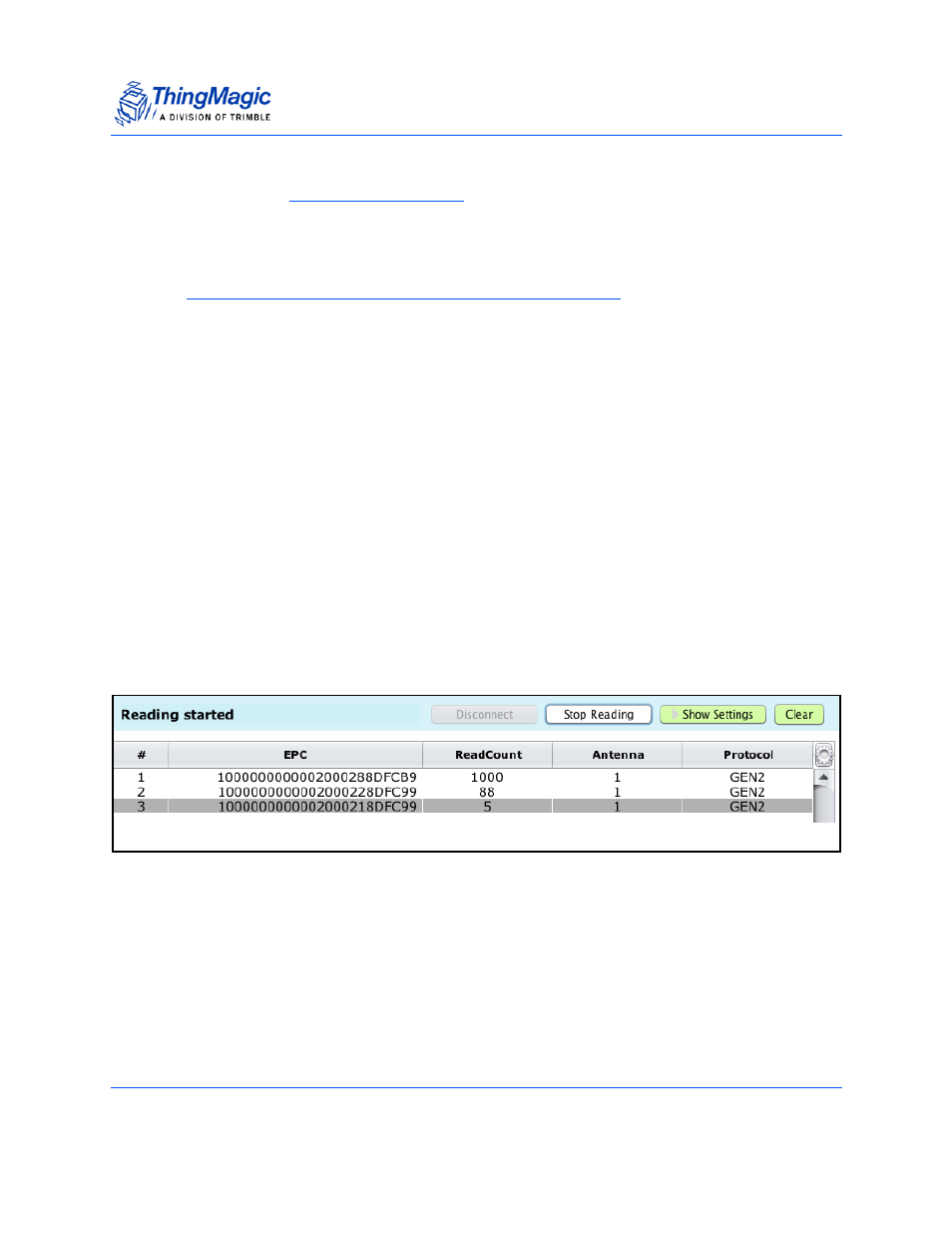

Figure 15:
Query Results
In addition to the above fields, the following fields can be displayed by right-clicking on the
settings icon in the top-right corner of the display table, as shown in Figure 16.
RSSI -
The receive signal strength of the tag response, in dBm.
Frequency -
The frequency on which the tag was read, in kHz.
First Seen - The timestamp when the tag was first seen during this query.
Last Seen - The timestamp of the most recent reading during this query.
