Setting Up the Reader
M6 and Astra-EX User Guide 21
7. Click on the Properties button.
The Internet Protocol (TCP/IP) Properties window appears. The General tab
should have both “Obtain an IP Address automatically” and “Obtain DNS server
address automatically” selected. On the Alternate Configuration tab “Automatic
private IP address” should be selected, as shown in
Figure 6
.

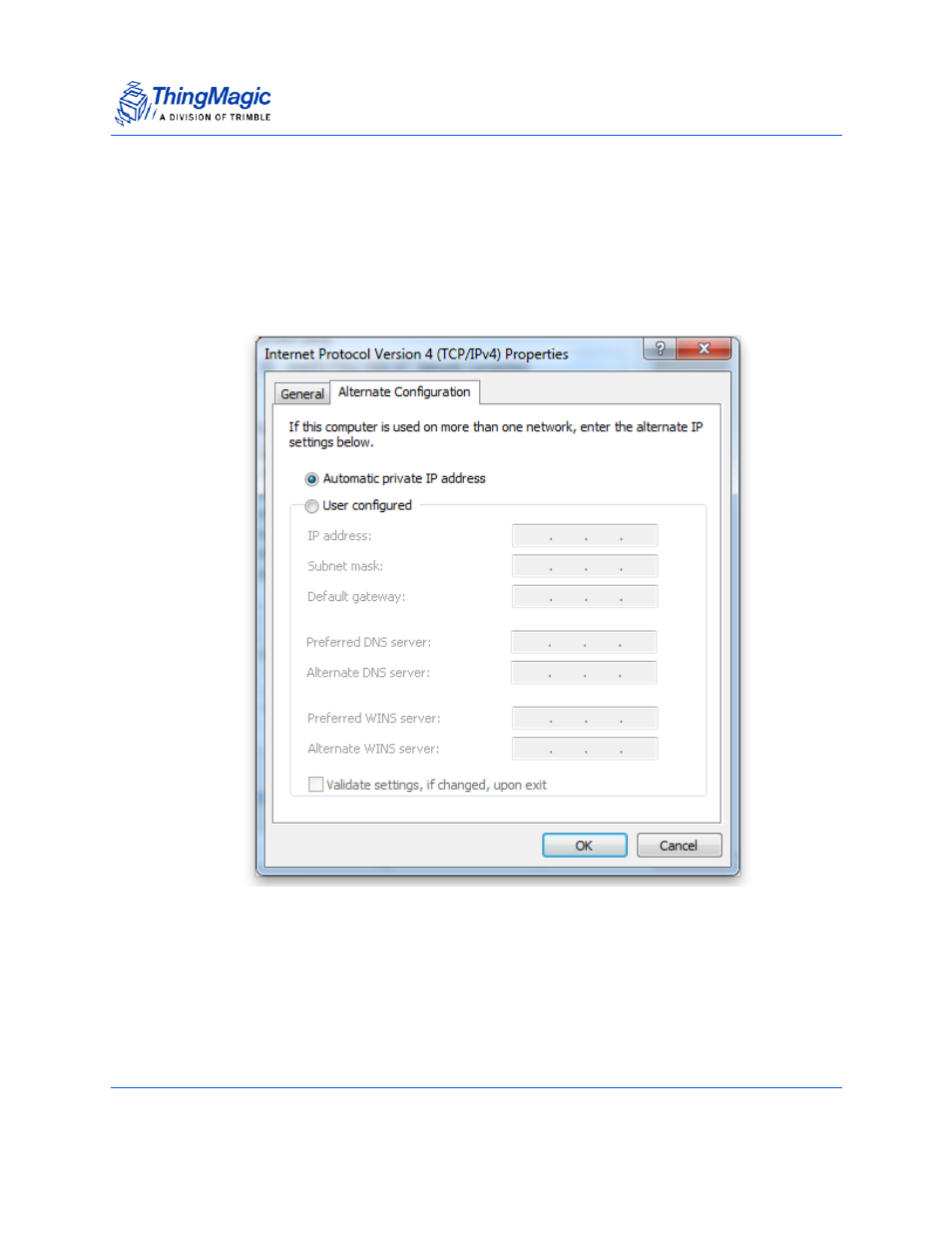

Figure 6: Internet Protocol TCP/IP Properties Window
8. Click OK to save and exit the window.
9. Click OK in the Local Area Connection Properties window.
