Chain stitch
Overlock

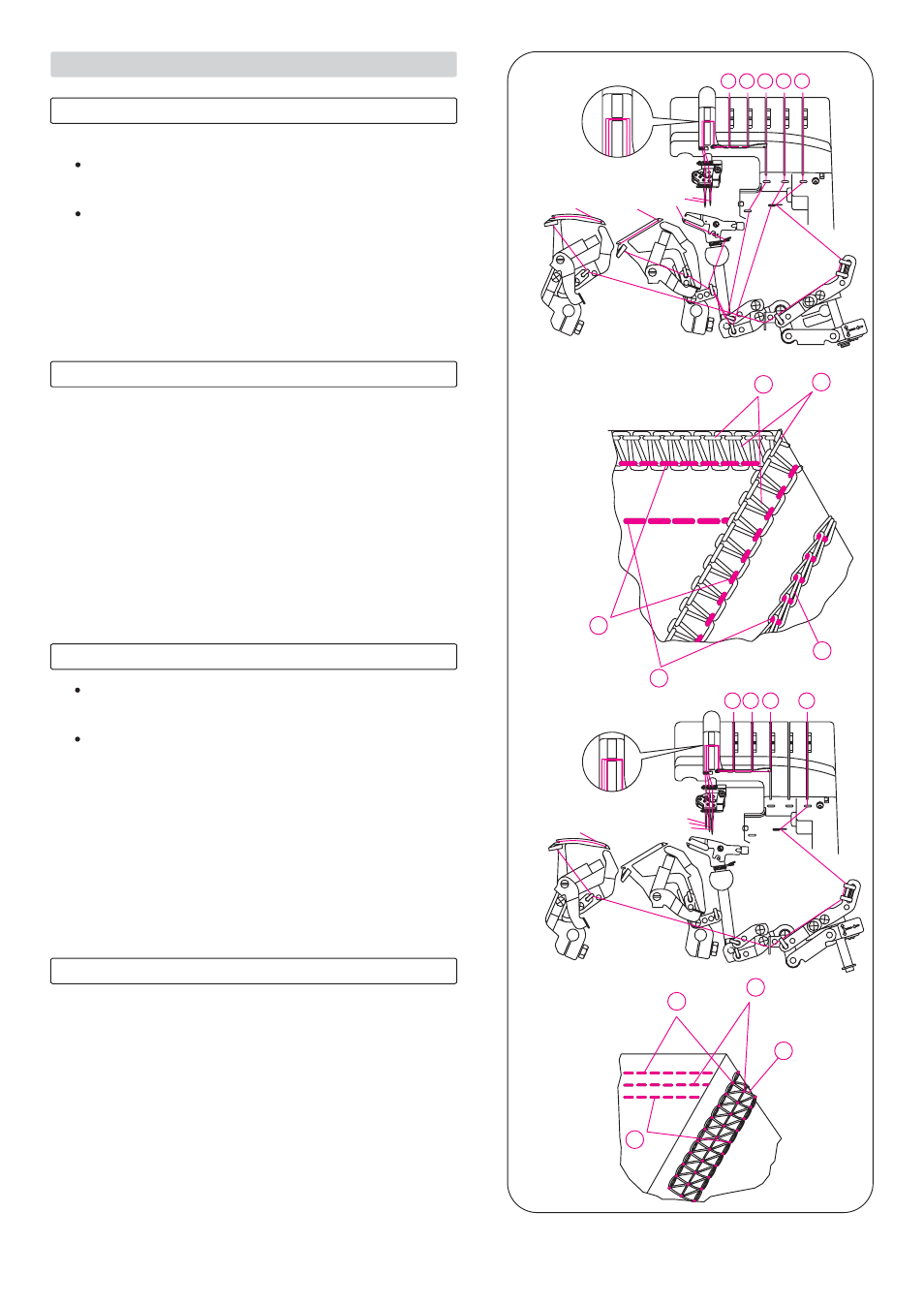

12. THREADING THE MACHINE
A color coded threading diagram is located inside
the looper cover for quick reference.
Thread the machine in the order 1 to 5 as shown.
Note: Threads go through the take-up lever cover
for Overlock and Chain stitching as shown.
Threading Diagram: Overlock and Safety Stitches
A color coded threading diagram is located inside
the looper cover for quick reference.
Thread the machine in the order 1 to 4 as shown.
Note: Threads go through take-up lever
cover for Cover stitch as shown.
Threading Diagram: Cover Stitch
1. Upper looper thread............................
2. Lower looper thread............................
3. Chain stitch looper thread...................
4. Right needle thread............................
5. Chain stitch needle thread..................
Tension Color Code: Overlock and Safety Stitch
1. Cover stitch looper thread.............
2. Right needle thread.......................
3. Middle needle thread.....................
4. Left needle thread..........................
Tension Color Code: Cover Stitch
Brown
Green
Blue
Orange
Green
Red
Brown
Blue
Orange
