SINGER 14T967DC QUANTUMLOCK User Manual

Page 13

OFF

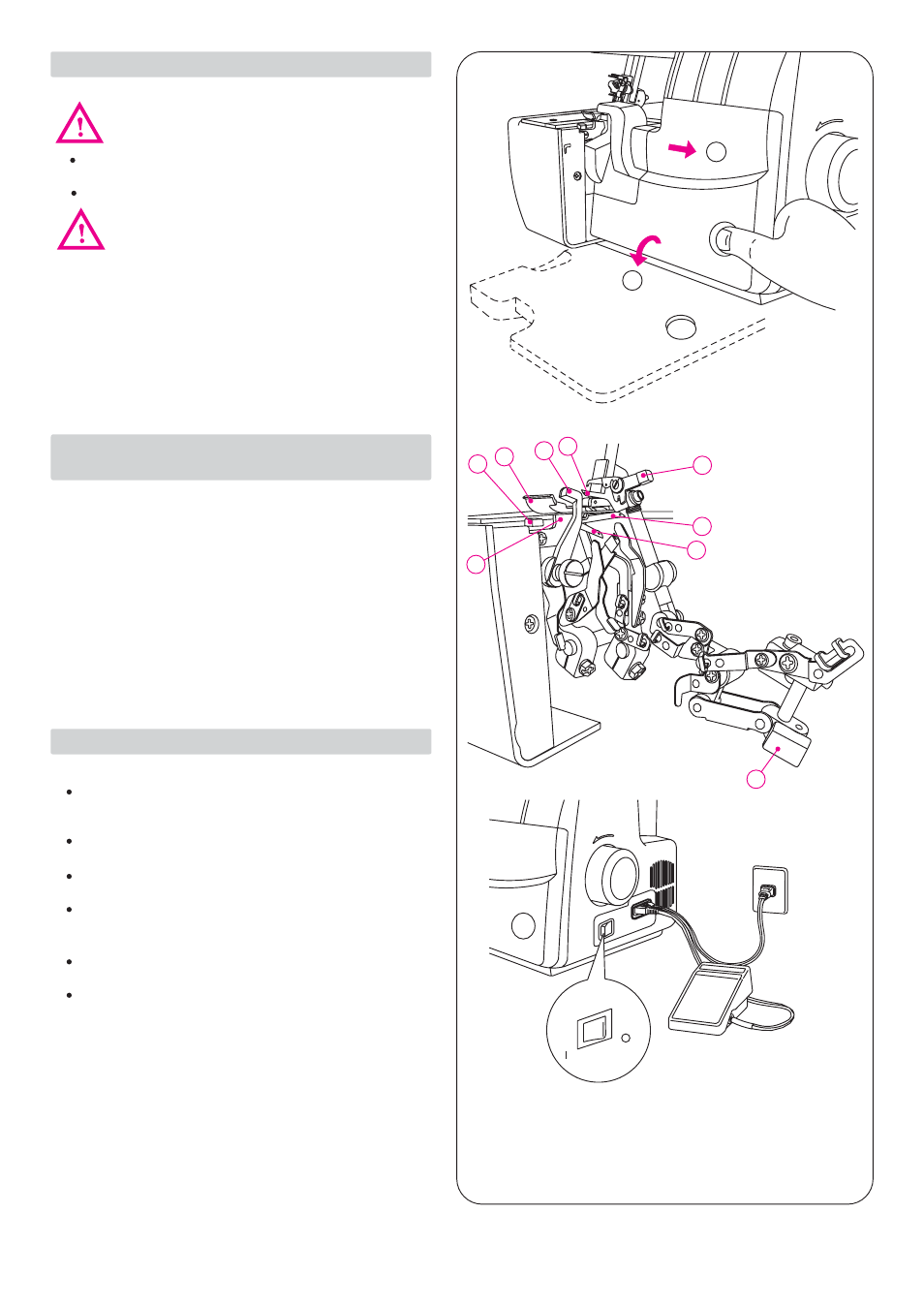

6. HOW TO OPEN LOOPER COVER

Caution:

Be sure to turn off power switch.

Push the cover to the right as far as it will go.

Pull cover down toward you.

Caution:

Be sure looper cover is closed when
sewing.

7. PRINCIPAL PARTS BEHIND THE

LOOPER COVER

1. Upper looper
2. Moveable Upper knife
3. Presser foot
4. Fixed position lower knife
5. Lower looper
6. Chain/Cover looper
7. Rolled Hem lever
8. Spreader
9. Upper looper clutch

8. PREPARATION PRIOR TO SEWING

Connect the controller/electric plug to the machine
receptacle.

Plug power line into electric outlet.

Power Switch: Push " l " mark side to turn "ON"

To run the machine and control the speed, press
the controller.

The harder you press, the faster the machine will sew.

To stop the machine from sewing, remove your foot
from the controller.

Push "O" mark side to turn "OFF"

Use only foot controller provided with this machine.
(Type 4C-316B for U.S.A. & CANADA only)
Be sure to make reference to "Warning" on following
Page.

WARNING:

Note: Machine will not operate when
Looper Cover is open.

This manual is related to the following products:

QUANTUMLOCK 14T967DC
