Page 95

– 92 –

APPENDIX

Pin No.

Signal name Direction

Function

25 Pin 9 Pin

2) X-On/X-Off Communication Mode

Always space, except during following conditions:
• Period between reset and communication enabled
• During self printing

21~24

N/C

Not used

INIT

Status of this signal is not checked.

Printer status

DIP SW 1-6

OFF

1. During the period from when the

power is turned on (including reset-
ting using the interface) to when the
printer is ready to receive data.

2. During the self printing.

3. When the cover is open.

4. When the printer stops printing due to

a paper-end.

5. During macro executing standby

status.

6. When an error has occurred.

7. When the receive buffer becomes

full.

BUSY

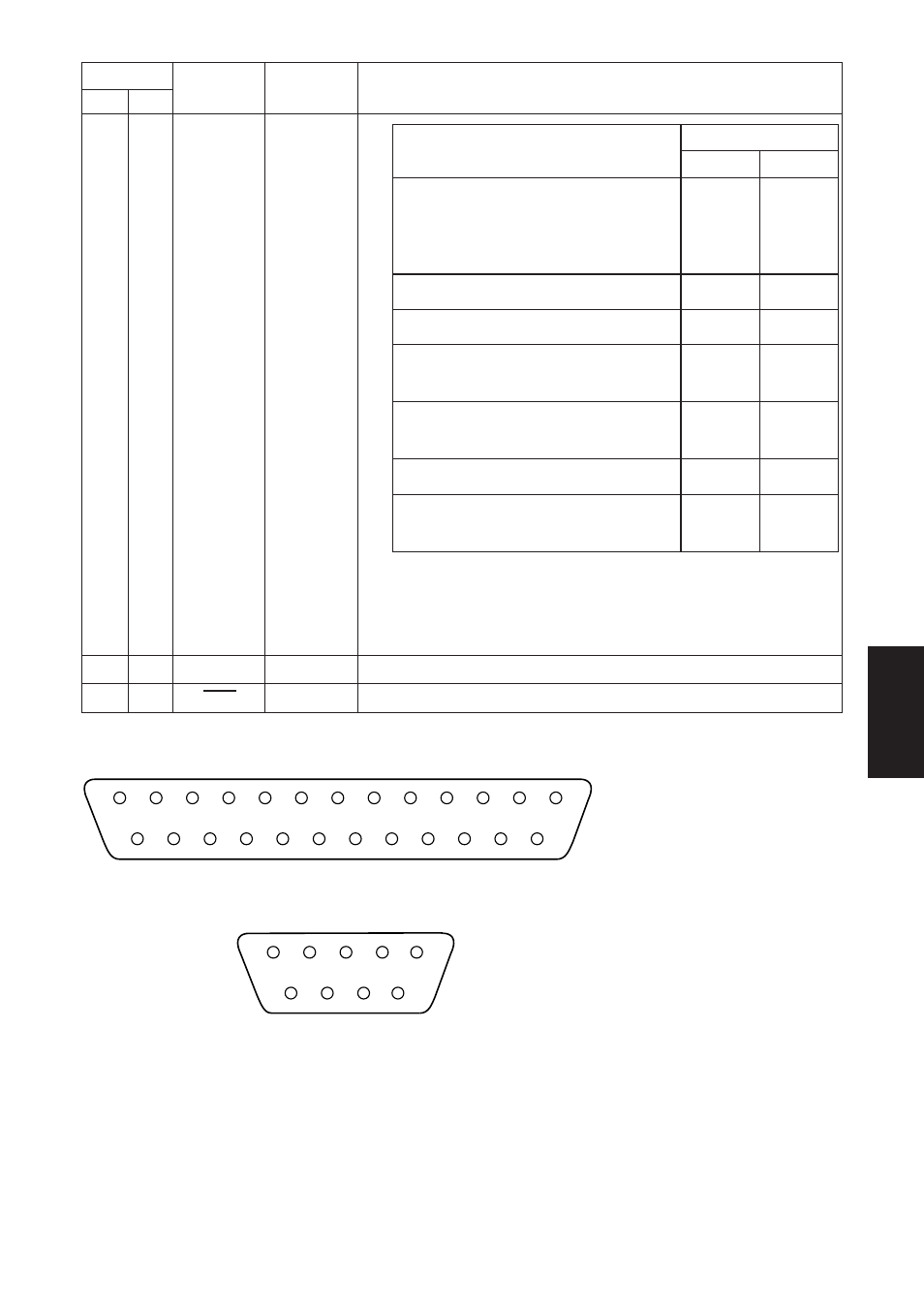

D-sub 25 Pin

D-sub 9 Pin
