4.0 Parts List
Farmbar Tube
One Hole
54207PX
100890
54207P-2
100107
54160
Bearing Collar
Bearing
Snap Ring
Foam Seal
104529
54207
Load Cell
100802
Load Pin Spacer
54209
100735
103102
54229
100959
54226-XX
Farmbar Tube
Two Hole

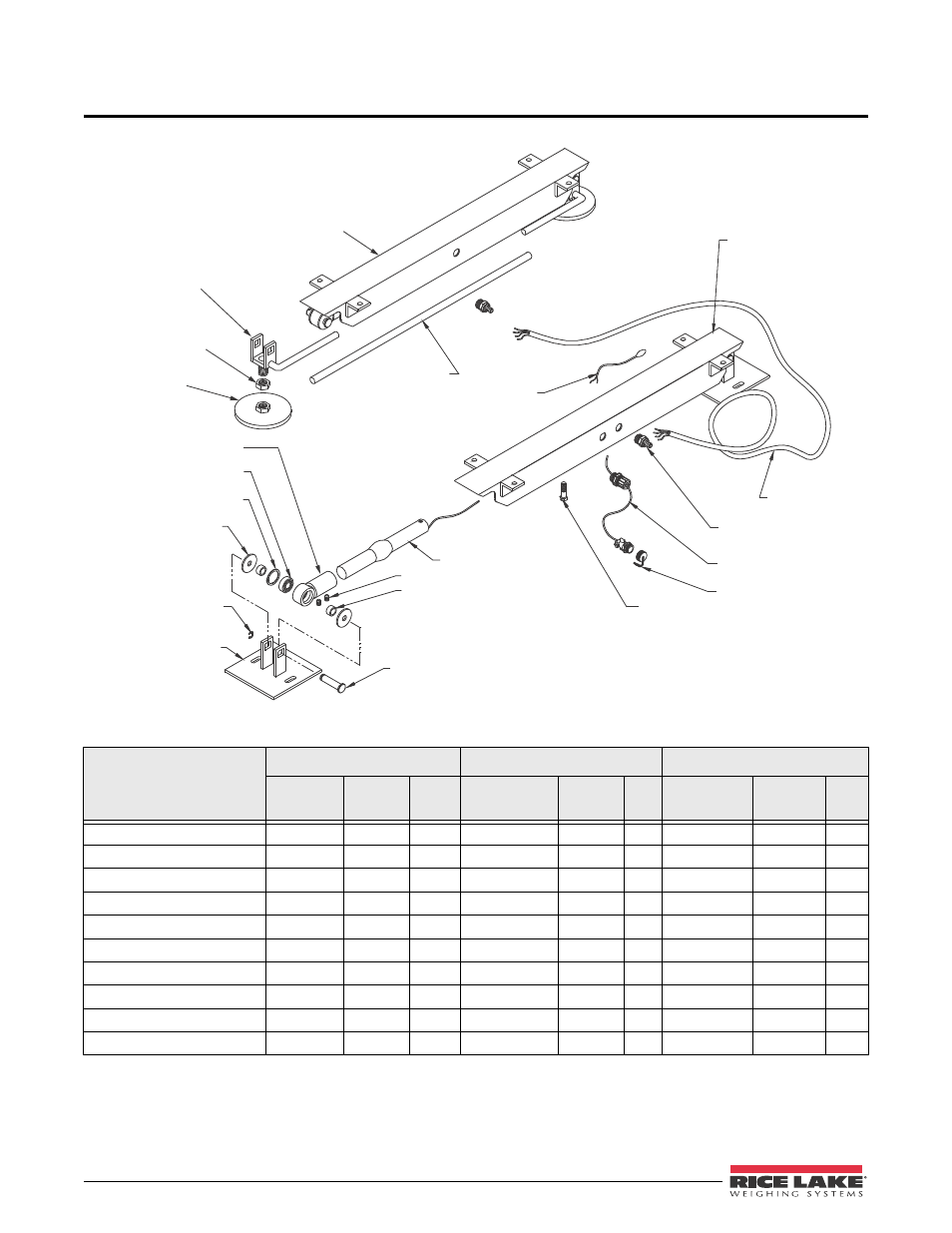

Figure 4-1.
Table 4-1. Farmbars Parts List
Description 2500U 5000U 10000U
Part #
RLWS
Part # Qty. Part #
RLWS
Part # Qty. Part #
RLWS
Part # Qty.
Bearing 101211 127238 4 101211 127238 4 101212 127239 4
Bearing Collar 54203 127765 1 55203 127783 1 56203 127793 4
Foam Seal 101232 126821 4 101232 126821 4 101233 126822 4
*Farmbar Tube-One Hole 54206-5 1 55206-5-XX 1 56206-5-XX 1
*Farmbar Tube-Two Hole 54206-3 1 55206-3-XX 1 56206-3-XX 1
Load Cell 54201 2 55201 4 56201 4
Load Pin Spacer 54210 127775 8 54210 127775 8 56210 127796 8
Snap Ring 101226 126806 4 101226 126806 4 101227 126807 4
Hex Mounting Bolt 100735 126979 2 100735 126979 4 100735 126979 4
**Bearing Collar Assembly 54202 4 55202 4 56202 4
Farmbars Illustrated Parts
*Specify Length in inches (i.e. 55206-3-33), 2500U only comes in 22" lengths.
**Assembly includes, Bearing Collar, Bearing, Snap Ring, Foam Seals and set screws.
