2.2 Mounting the Mid-Range Junction Box (JB4EP and JB4SP)
The JB4EP or JB4SP junction box should be mounted in a location that is convenient
for servicing and away from standing water. Try to mount the j-box in a location
so that the load cell cables need not be cut, nor length added. Load cell output is
temperature com pen sat ed for the supplied cable length. Altering the length can
change the cell's signal output.
Depending on the mounting surface, the JB4EP or JB4SP enclosure can be attached
using four pan-head screws, bolts, or other suitable masonry fasteners. Figure 3,
below, shows the di men sions for mounting the enclosure.
NN
NN
NN
NN
NN
Y
IPMFT
#SFBUIFS
7FOU
)PNF3VO
$BCM F
$PSE(SJQ
-PBE$FMM
$PSE(SJQT
PO#PUUPN
4-
1($PSE(SJQT$BCMF%JBNFUFSww
4-
1($PSE(SJQT$BCMF%JBNFUFSww

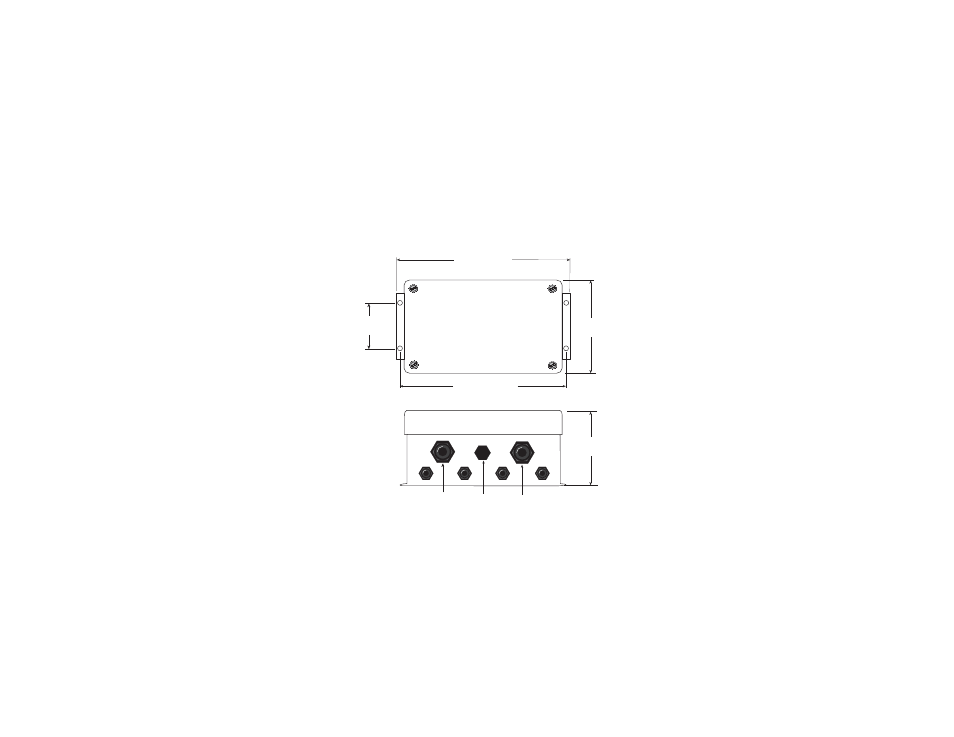

Figure 3: JB4EP and JB4SP Enclosure Dimensions
