Introduction
The EL-304A Junction Box can accommodate up to four load cells. Additional
load cells may be connected to the EL-304A Junction Box by wiring additional
junction boxes to the EXPANSION terminal on the EL-304A. Load cell output can
be trimmed with potentiometers either individually or paired in sections.
When correctly installed, the NEMA 4X fiberglass-reinforced polyester enclosure
will withstand 40 psi water pressure. It is not, however, designed for high-
pressure washdown applications, exposure to steam, or exposure to high-
temperature liquids.
Mounting the Junction Box Enclosure
Mount the enclosure in a location convenient for servicing and away from
standing water. Try to mount the enclosure in a location that will not require
extending the load cell cables.
Depending on the mounting surface, the enclosure is attached using the four pan-
head screws provided, bolts, or other suitable masonry fasteners. Figure 1 below
shows dimensions for mounting the enclosure.

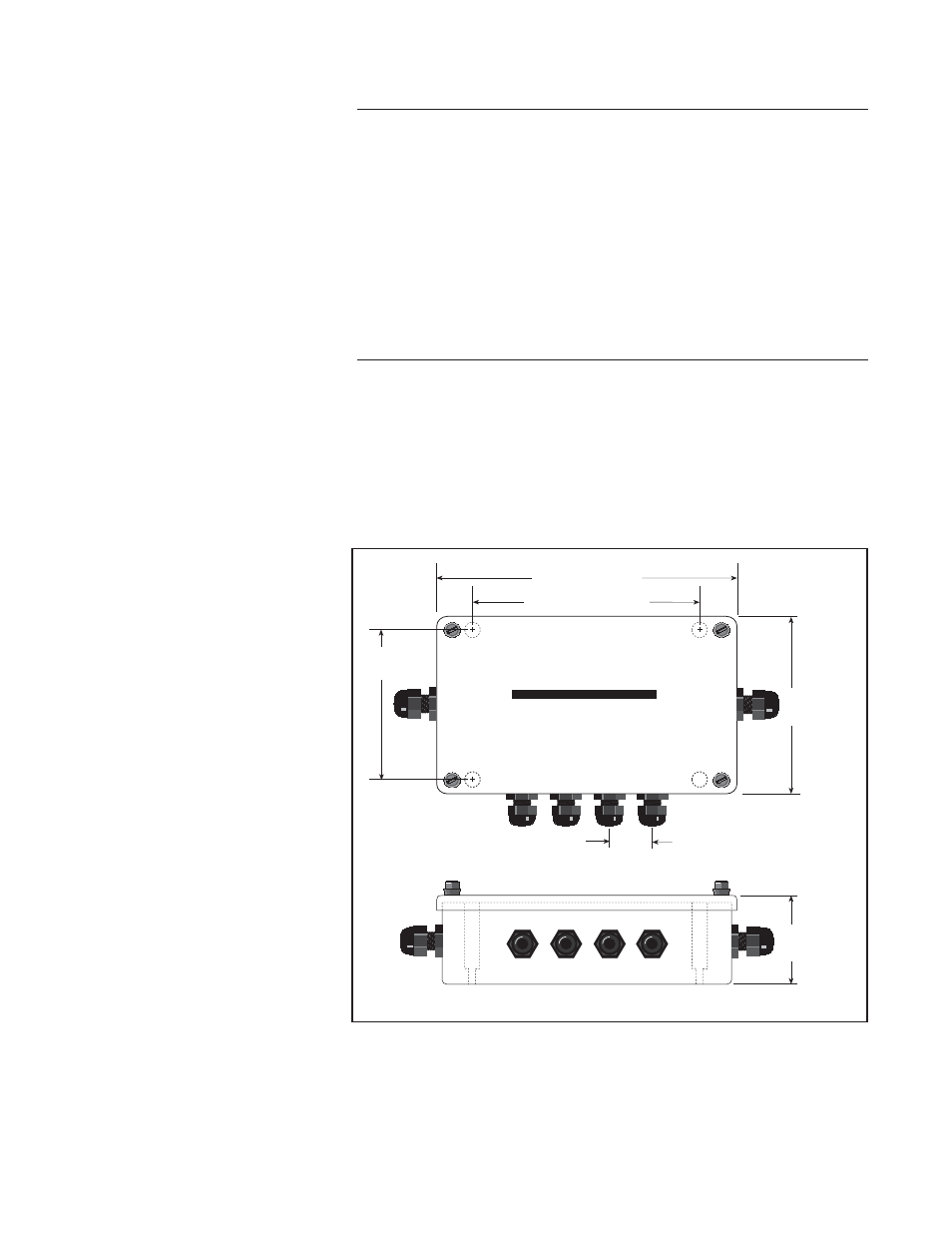

FIGURE 1: EL-304A ENCLOSURE DIMENSIONS
CHANGING CABLE LENGTH
Locate the junction box so load
cell cable length need not be
changed. Load cell output is
temperature-compensated for the
supplied cable length. Altering
that length will alter the cell’s
signal output.
