Rice Lake iQUBE2 Digital Diagnostic Junction Box - Transient Protection Kit - Manual (Page 2)

Existing Power
Supply Assembly
Standoffs
Transient
Protection Board
4-40NC x 1/4 screws
2 Transient Protection Kit Installation

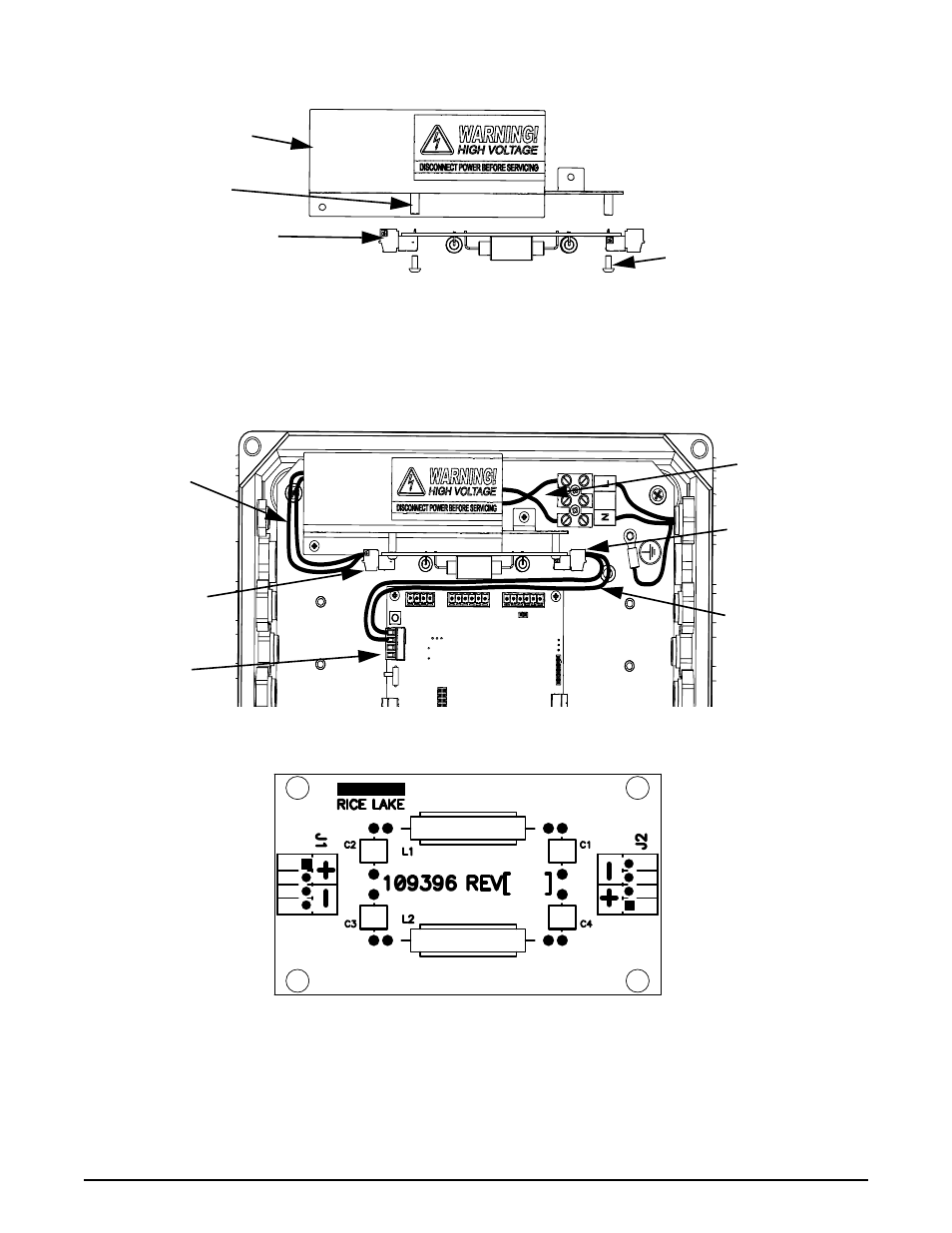

Figure 3. Install Transient Protection Board to Power Supply Mounting Bracket
7. Reinstall power bracket assembly in the iQube
2
enclosure.
8. Connect Power cable to the power supply.
9. Strip and install a new two wire cable between the power supply and the transient board.
10. Use the power supply cable to connect the transient board to the CPU board (J6).
Power supply
cable
CPU Board (J6)
CPU Power
Supply Cable
Transient Board
J1
Transient Board
J2
New two wire
cable
Figure 3-1. Connect Cables
+ VDC
+ VDC
GND
GND
In from
power Out to CPU
Board (J6)
Figure 3-2. Transient Protection Board Wiring
11. Replace the enclosure cover.
12. Reconnect power the iQube2.
