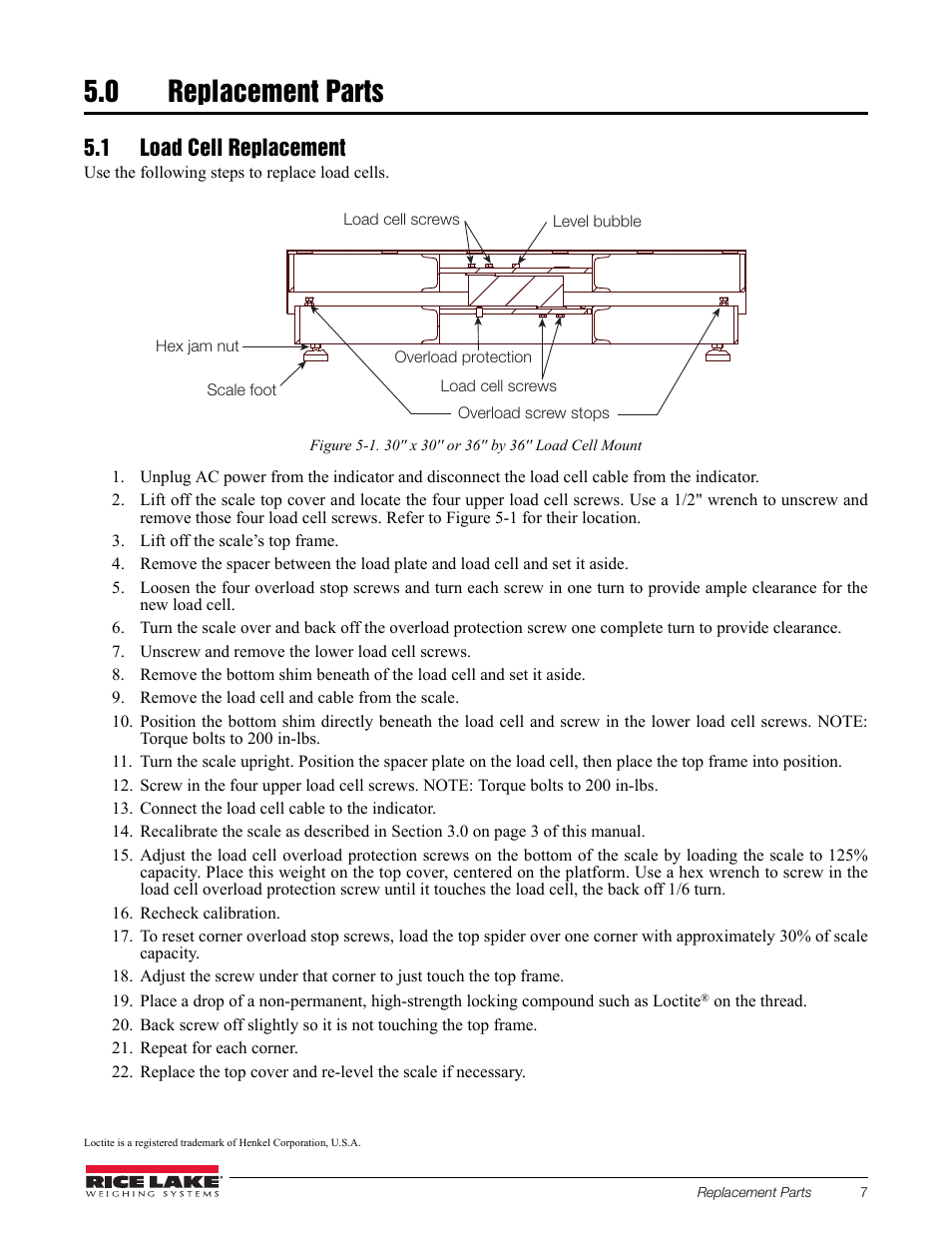

0 replacement parts, 1 load cell replacement, Lift off the scale’s top frame – Rice Lake BenchMark HD User Manual
Page 11: Unscrew and remove the lower load cell screws, Remove the load cell and cable from the scale, Connect the load cell cable to the indicator, Recheck calibration, Repeat for each corner
0 replacement parts, 1 load cell replacement, Lift off the scale’s top frame | Unscrew and remove the lower load cell screws, Remove the load cell and cable from the scale, Connect the load cell cable to the indicator, Recheck calibration, Repeat for each corner | Rice Lake BenchMark HD User Manual | Page 11 / 16 See also other documents in the category Rice Lake Scales:
