Rice Lake 880 Performance Series Panel Mount Indicator/Controller - Adapter Panel Installation User Manual
Page 3

Adapter Panel Installation
3
5. Install the gasket on the display assembly. It must be seated correctly on the display before mounting to
ensure tight seal.
6. Secure the display and mounting plate to the panel using the four 6-32 Kep nuts (PN 14621) provided.
DIN Rail Mounting Plate
Display Assembly
6-32 Kep Nuts
Ensure gasket is
seated properly on
display assembly
before mounting.
Important
Adapter Plate mounted to
existing panel.

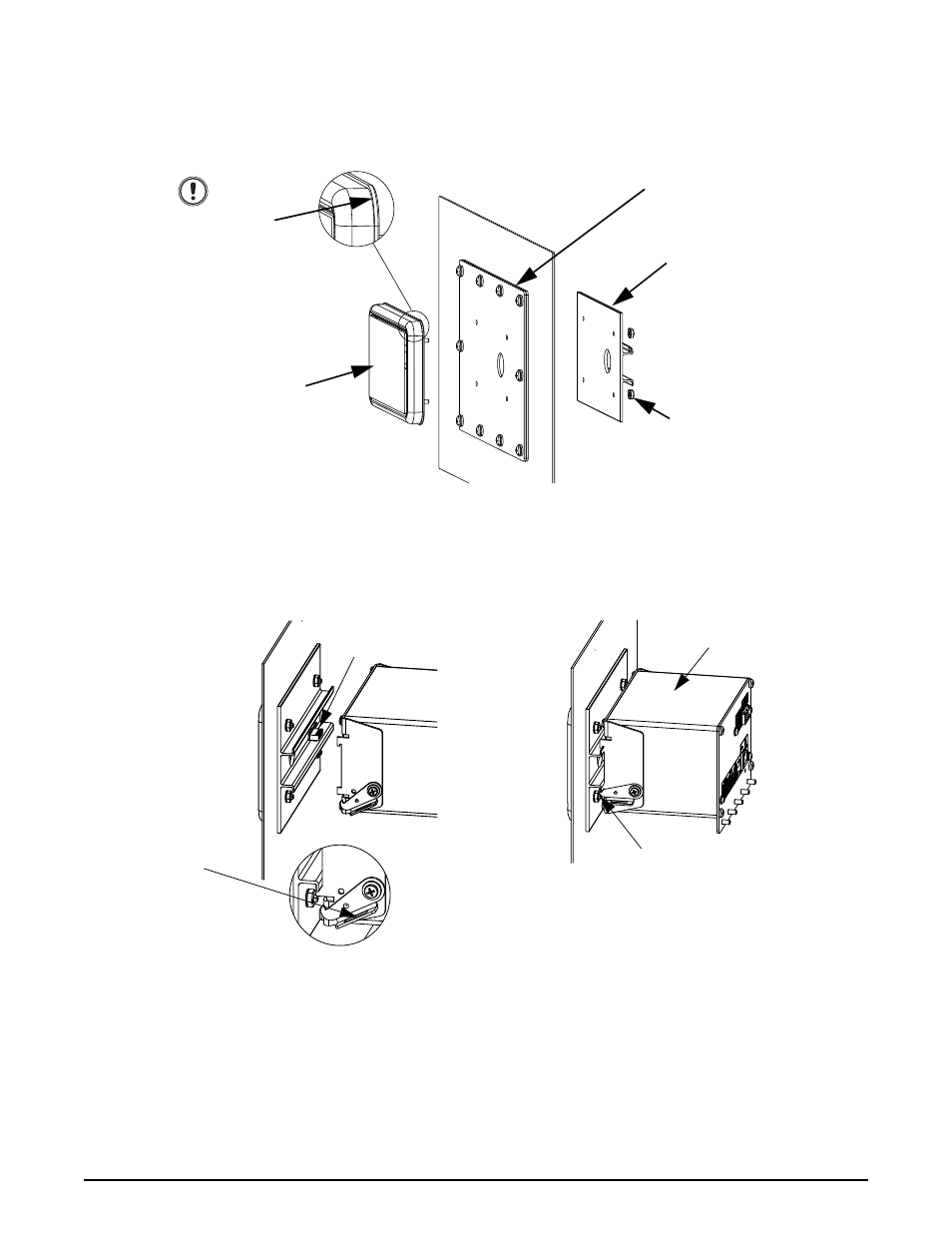

Figure 5. Install Display
7. Connect the cable assembly to the controller assembly.
8. Place the controller assembly on the DIN rail as shown in Figure 6.
9. Secure to DIN rail by rotating the left and right hooks up, connecting with the bottom rail.
Connect cable assembly to
controller assembly
Controller
Assembly
Rotate hooks to secure
to bottom DIN rail
A slot is provided for a
screwdriver to lift the
positioning dimple from
the locating hole prior to
rotating the lever.
Figure 6. Install Controller Assembly
10. Connect all connectors to the backplate. See the Installation/Service manual (PN 158387) for connector
locations.
