511
Practical hints
Battery

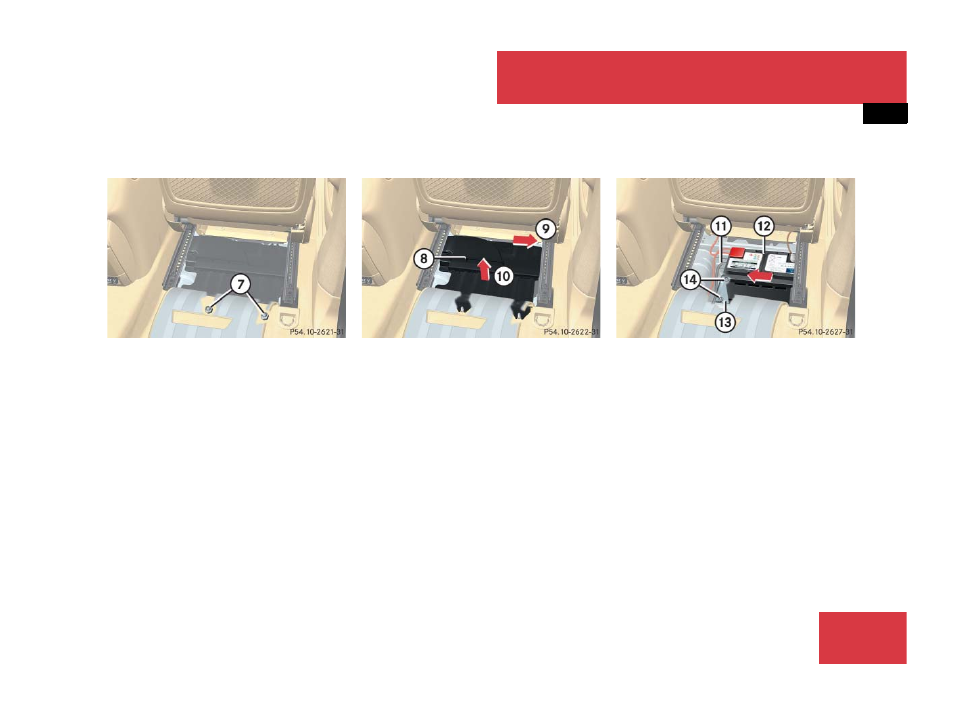

Step 5 (Disconnecting)
7 Battery cover mounting nuts
̈ Unfasten and remove battery cover
mounting nuts
7.
Step 6 (Disconnecting)
8 Battery cover with integrated air
channel
9 Pulling battery cover out
a Lifting battery cover
̈ Lift battery cover 8 slightly in direc-
tion of arrow a.
̈ Pull battery cover 8 in direction of
arrow 9.
̈ Remove battery cover 8.
Step 7 (Disconnecting)
b Battery ventilation hose
c Battery
d Battery attachment
e Attachment nuts
̈ Pull battery ventilation hose b out of
battery c.
̈ Unfasten and remove attachment
nuts
e.
̈ Remove battery attachment d.
̈ Push battery c to the left.
