Practical hints
Replacing bulbs
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
̈ Turn the exterior lamp switch to
position
M ( ୴ page 146).
̈ Open the hood ( ୴ page 364).

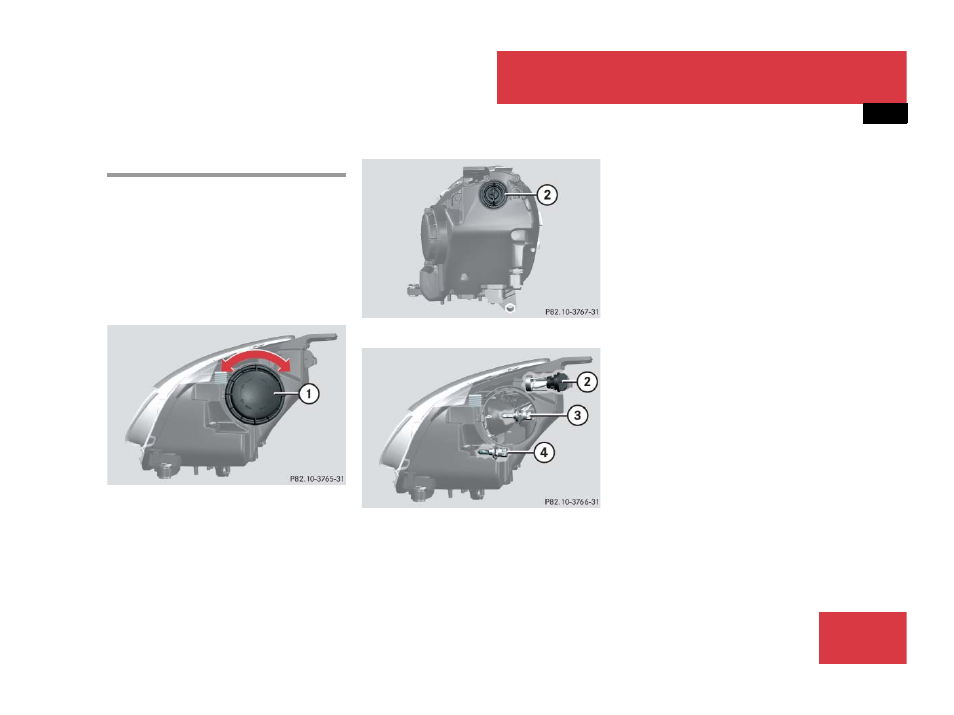

Halogen headlamps
1 Low beam/high beam headlamp cover
2 Bulb socket for turn signal lamp
2 Bulb socket for turn signal lamp
3 Bulb socket for low beam headlamp
4 Bulb socket for high beam headlamp
Low beam headlamp bulbs
̈ Turn cover 1 counterclockwise.
̈ Remove cover 1.
̈ Turn bulb socket 3 counterclockwise.
̈ Pull bulb socket 3 out of the head-
lamp housing.
̈ Pull the low beam bulb out of bulb
socket
3.
̈ Insert the new low beam bulb into bulb
socket
3.
̈ Insert bulb socket 3 into the head-
lamp housing.
̈ Turn bulb socket 3 clockwise until it
engages.
̈ Place cover 1 on the opening in the
headlamp housing.
̈ Turn cover 1 clockwise until it
engages.
