B Vehicle center axle (marker assistance)
C Yellow guide line at a distance of
approximately 3 ft (1.0 m) from the rear
of the vehicle
D Bumper
E Red guide line at a distance of
approximately 12 in (0.30 m) from the
rear of the vehicle
The guide lines are shown when the
transmission is in position R.
The distance specifications only apply to
objects that are at ground level.

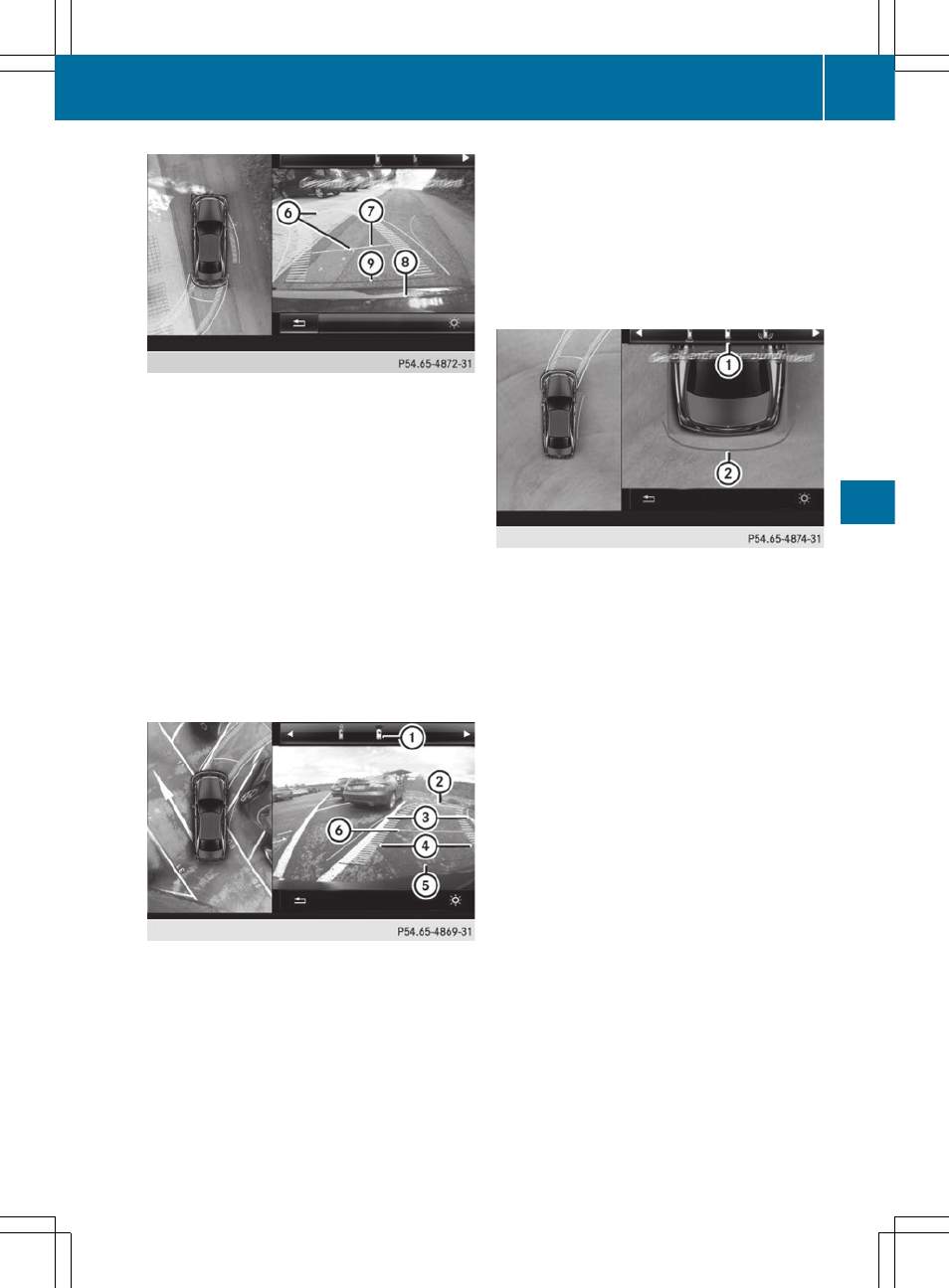

Top view with picture from the front
camera
: Symbol for the split screen setting with
top view and front camera image
; Yellow guide line at a distance of
approximately 13 ft (4.0 m) from the front
of the vehicle
= Yellow guide line for the vehicle width
including the exterior mirrors, for current
steering wheel angle (dynamic)
? Yellow lane marking tires at current
steering wheel angle (dynamic)
A Red guide line at a distance of
approximately 12 in (0.30 m) from the
front of the vehicle
B Yellow guide line at a distance of
approximately 3 ft (1.0 m) from the front
of the vehicle
Top view and enlarged rear view
: Symbol for the split screen setting with
top view and rear view camera image
enlarged
; Red guide line at a distance of
approximately 12 in (0.30 m) from the
rear of the vehicle
This view assists you in estimating the
distance to the vehicle behind you.
i This setting can also be selected as an
enlarged front view.
