parking space until yellow guide line ;
reaches parking space marking :.
X Keep the steering wheel in that position
and back up carefully.

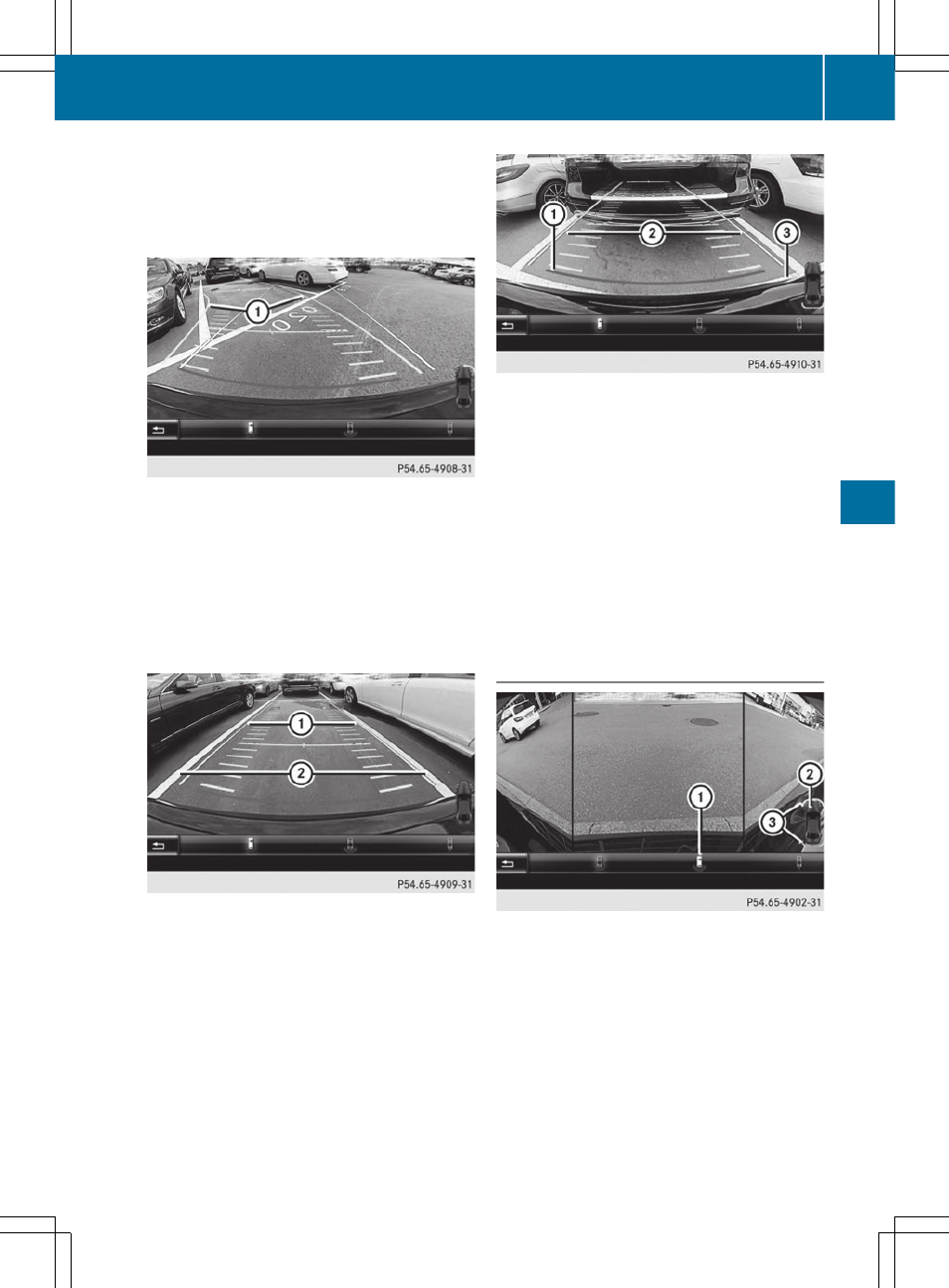

: Yellow guide line for the vehicle width
including the exterior mirrors, for current
steering wheel angle (dynamic)
X
Stop the vehicle when it is almost exactly
in front of the parking space.
The white lane should be as close to parallel
with the parking space marking as
possible.
: White guide line at current steering wheel
angle
; Parking space marking
X
Turn the steering wheel to the center
position while the vehicle is stationary.
: Red guide line at a distance of
approximately 12 in (0.30 m) from the
rear of the vehicle
; White guide line without turning the
steering wheel
= End of parking space
X
Back up carefully until you have reached
the final position.
Red guide line : is then at end of parking
space =. The vehicle is almost parallel in
the parking space.
Wide-angle function
: Symbol for the wide-angle view function
; PARKTRONIC warning displays
You can also use the rear view camera to
select a wide-angle view.
When PARKTRONIC is operational
(
Y
page 220), a symbol for your own vehicle
appears in the COMAND display. If the
PARKTRONIC warning displays are active,
warning displays ; light up in the COMAND
display in yellow or red respectively.
