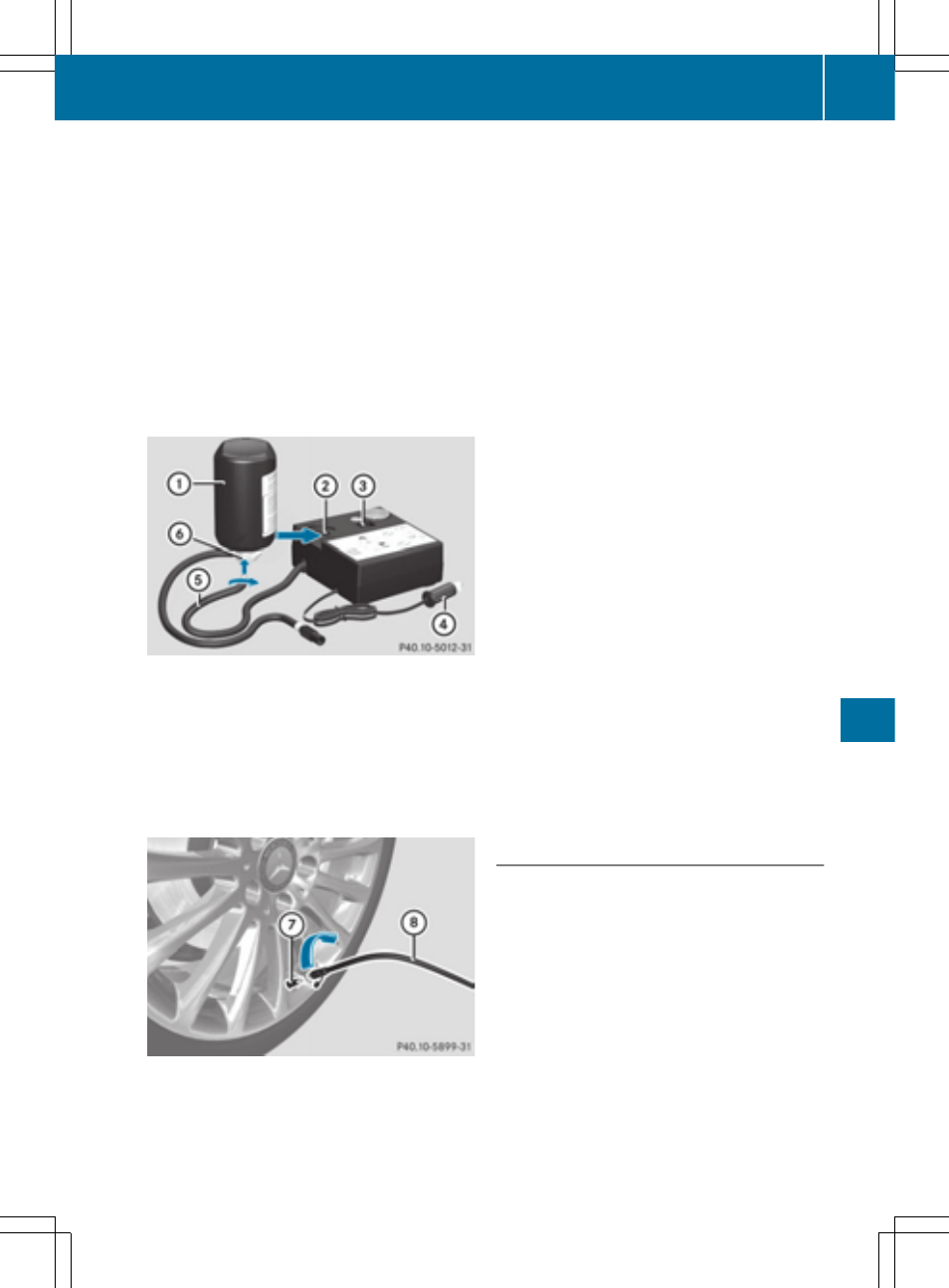

X Do not remove any foreign objects which
have penetrated the tire, e.g. screws or
nails.
X Remove the tire sealant bottle, the accom-
panying TIREFIT sticker and the tire infla-
tion compressor from the stowage well
underneath the cargo compartment floor
(
Y
page 314).
X Affix part : of the TIREFIT sticker within
the driver's field of vision.
X
Affix part ; of the TIREFIT sticker near the
valve on the wheel with the defective tire.
X
Pull plug ? with the cable and hose A out
of the housing.
X Screw hose A onto flange B of tire seal-
ant bottle :.
X
Place tire sealant bottle : head down-
wards into recess ; of the tire inflation
compressor.
X Remove the cap from valve C on the faulty
tire.
X
Screw filler hose D onto valve C.
X Insert connector ? into the cigarette
lighter socket (
Y
page 284) or into a 12 V
socket (
Y
page 284) in your vehicle.
X Turn the SmartKey to position 1 in the igni-
tion lock (
Y
page 149).
X
Press on/off switch = on the tire inflation
compressor to I.
The tire inflation compressor is switched
on. The tire is inflated.
i First, tire sealant is pumped into the tire.
The pressure can briefly rise to approx-
imately 500 kPa (5 bar/73 psi).
Do not switch off the tire inflation com-
pressor during this phase.
X
Allow the tire inflation compressor to run
for five minutes. The tire should then have
attained a pressure of at least 180 kPa
(1.8 bar/26 psi).
If a pressure of 180 kPa (1.8 bar/26 psi) has
been attained after five minutes, see "Tire
pressure reached" (
Y
page 318).
If a tire pressure of 180 kPa (1.8 bar/26 psi)
has not been attained after five minutes, see
"Tire pressure not reached" (
Y
page 317).
i If tire sealant leaks out, allow it to dry. It
can then be removed like a layer of film.
If your clothes are soiled with tire sealant,
have them cleaned with perchloroethylene
at a dry cleaner as soon as possible.
Tire pressure not reached
If a pressure of 180 kPa (1.8 bar/26 psi) has
not been attained after five minutes:
X
Switch off the tire inflation compressor.
X Unscrew the filler hose from the valve of
the faulty tire.
X
Very slowly drive forwards or reverse
approximately 30 ft (10 m).
X
Pump up the tire again.
After a maximum of five minutes the tire
pressure must be at least 180 kPa (1.8 bar/
26 psi).
