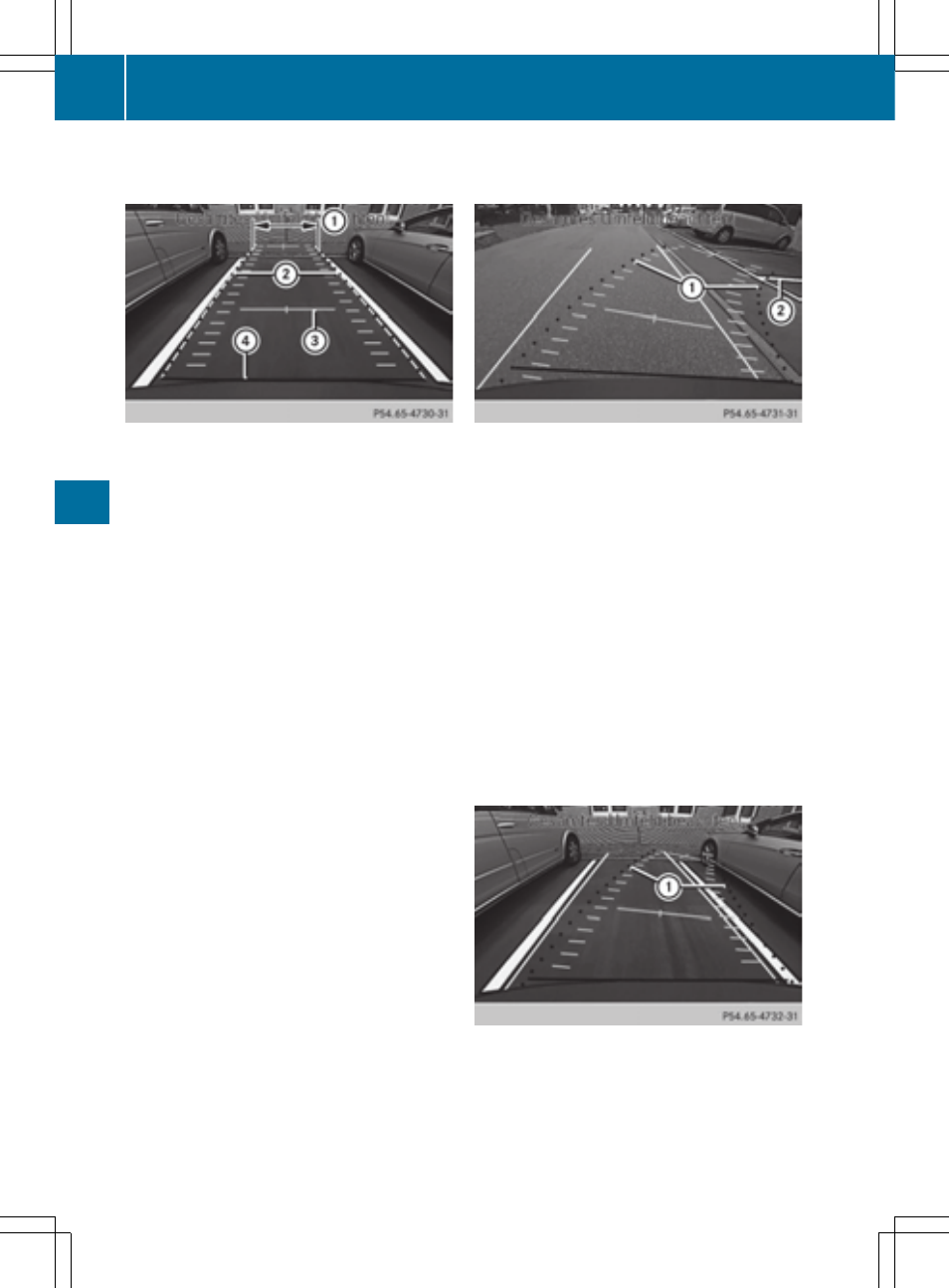

Backing up straight into a parking space
without turning the steering wheel
:
White guide line without turning the steer-
ing wheel, vehicle width including the
exterior mirrors (static)
;
Red guide line for the vehicle width includ-
ing the exterior mirrors, for current steer-
ing wheel angle (dynamic)
=
Yellow guide line at a distance of approx-
imately 3 ft (1.0 m) from the rear of the
vehicle
?
Red guide line at a distance of approx-
imately 12 in (0.30 m) from the rear of the
vehicle
X
Make sure that the rear view camera is
switched on (
Y
page 194).
The lane and the guide lines are shown.
X
With the help of white guide line :, check
whether the vehicle will fit into the parking
space.
X
Using white guide line : as a guide, care-
fully back up until you reach the end posi-
tion.
Red guide line ? is then at the end of the
parking space. The vehicle is almost paral-
lel in the parking space.
Reverse perpendicular parking with the
steering wheel at an angle
Turning the steering wheel
:
Red guide line for the vehicle width includ-
ing the exterior mirrors, for current steer-
ing wheel angle (dynamic)
;
Parking space marking
X
Make sure that the rear view camera is
switched on (
Y
page 194).
The lane and the guide lines are shown.
X
Drive past the parking space and bring the
vehicle to a standstill.
X
While the vehicle is at a standstill, turn the
steering wheel in the direction of the park-
ing space until yellow guide line : reaches
parking space marking ;.
X
Keep the steering wheel in that position
and back up carefully.
Backing up with the steering wheel turned
:
Red guide line for the vehicle width includ-
ing the exterior mirrors, for current steer-
ing wheel angle (dynamic)
196
Driving systems
