Page 203

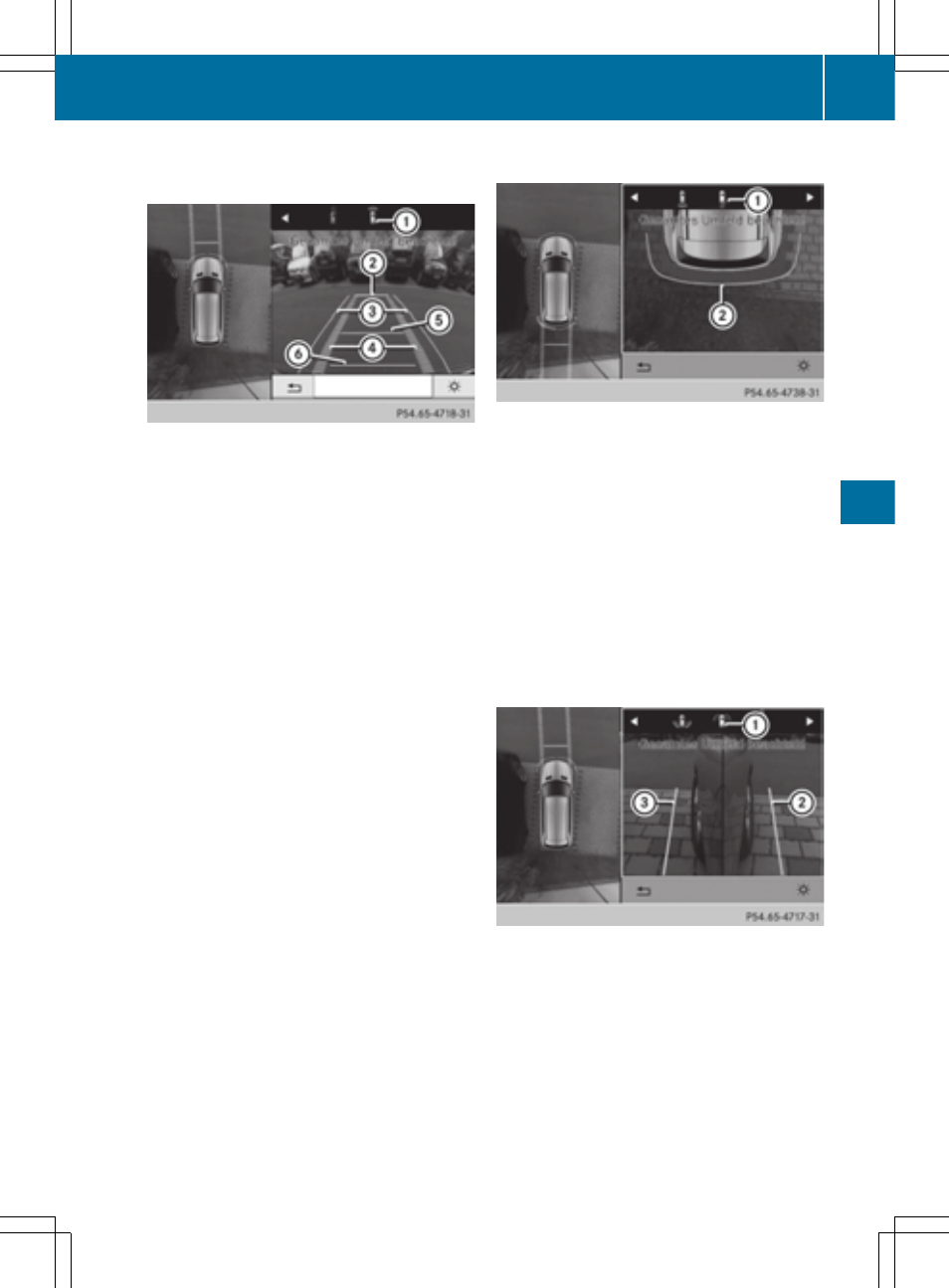

Top view with picture from the front cam-
era
:
Symbol for the split screen setting with
top view and front camera image
;
Yellow guide line at a distance of approx-
imately 13 ft (4.0 m) from the front of the
vehicle
=
Yellow guide line for the vehicle width
including the exterior mirrors, for current
steering wheel angle (dynamic)
?
Yellow lane marking tires at current steer-
ing wheel angle (dynamic)
A
Yellow guide line at a distance of approx-
imately 3 ft (1.0 m) from the front of the
vehicle
B
Red guide line at a distance of approx-
imately 12 in (0.30 m) from the front of the
vehicle
Top view and enlarged rear view
:
Symbol for the split screen setting with
top view and rear view camera image
enlarged
;
Red guide line at a distance of approx-
imately 12 in (0.30 m) from the rear of the
vehicle
This view assists you in estimating the dis-
tance to the vehicle behind you.
i
This setting can also be selected as an
enlarged front view.
Top view with picture from the mirror
camera
:
Symbol for the top view and forward-
facing mirror camera setting
;
Yellow guide line for the vehicle width
including the exterior mirrors (right side of
vehicle)
=
Yellow guide line for the vehicle width
including the exterior mirrors (left side of
vehicle)
Driving systems
201
