Motion-Modular units with metal base rails have one locking latch bracket and one latch bracket on
the right side (sitting) of modular units without right side arms, and two stud mounts with threaded
studs on the left side (sitting) of modular units without left side arms (F
IGURE 1).
Motion-Modular units with wood legs have one side mount locking latch bracket and one side mount
latch bracket on the right side (sitting) of modular units without right side arms, and two threaded
studs on the left side (sitting) of modular units without left side arms (F
IGURE 2).
5. Use a T-30 torx driver to loosen the threaded studs to approximately 1", this measurement may
vary depending on the fabric and style (F IGURE 3). The threaded studs are located on the left side
(sitting) of modular units without left side arms.
6. Align the units to be joined next to each other. Move the unit with the latch brackets approximately
4" forward of the unit with the threaded studs. The latch brackets are located on the right side
(sitting) of modular units without right side arms.
7. Slide the unit with the latch brackets back until the threaded studs are securely engaged in both
the front and rear latch brackets. The rear bracket is not a locking bracket.
NOTE: Due to variations in upholstery and style the threaded stud length may need to be adjusted
to fit into the latch brackets. Loosen or tighten the threaded studs to provide adequate clearance.
8. Continue connecting the modular units until all have been securely joined.
9. All modular units must be disconnected to safely move the modular group. To disconnect the units,
apply pressure to the swing arm of the locking latch bracket (F IGURE 4) and slide the unit forward.
Repeat this step to disconnect the remaining units.

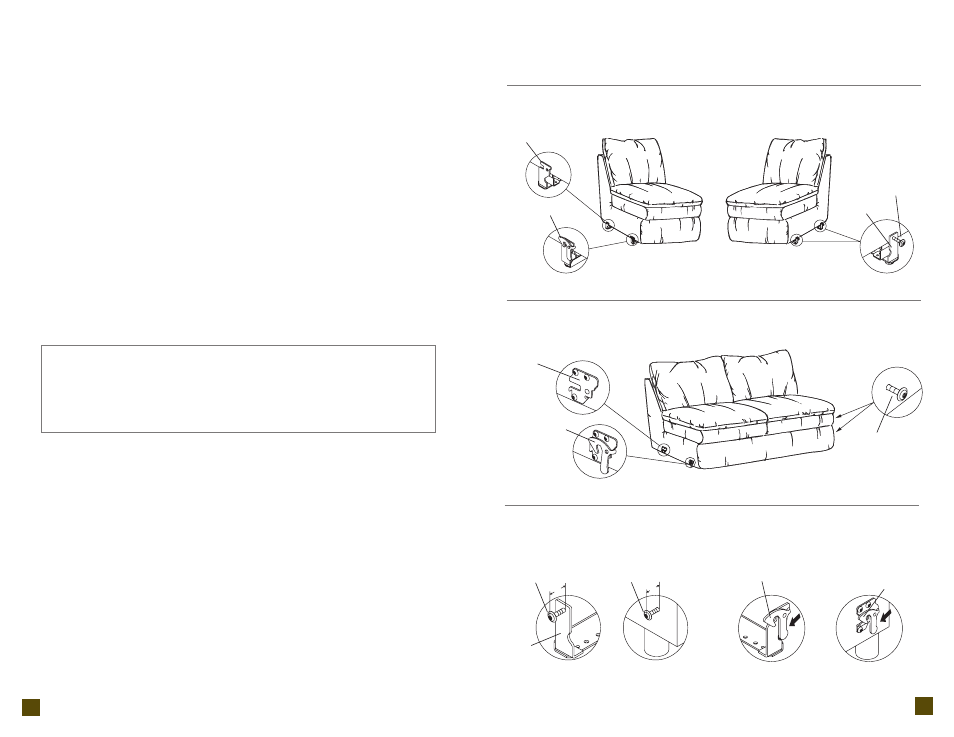

F IGURE 1
Latch Bracket
Threaded
Stud
Stud
Mount Locking Latch
Bracket
1
"
1
"
F IGURE 2
F IGURE 3 F IGURE 4
Side
Mount
Latch
Bracket
Side Mount
Locking
Latch
Bracket
Threaded
Stud
Threaded
Stud Threaded
Stud
Stud
Mount
Base Units Base Units Leg Units Leg Units
Locking Latch
Bracket Side Mount Locking
Latch Bracket
La-Z-Time ® Motion Upholstery and La-Z-Time
Motion-Modulars ® Assembly Instructions
NOTICE
– To reduce the risk of product damage:
• The purpose of the latch bracket system is to connect the units and prevent them from
being separated. The latch bracket system does not provide adequate structural support
for the movement of latched units. Do not move the units while latched together,
damage may occur.
La-Z-Time ® Motion Upholstery and La-Z-Time
Motion-Modulars ® Assembly Instructions
