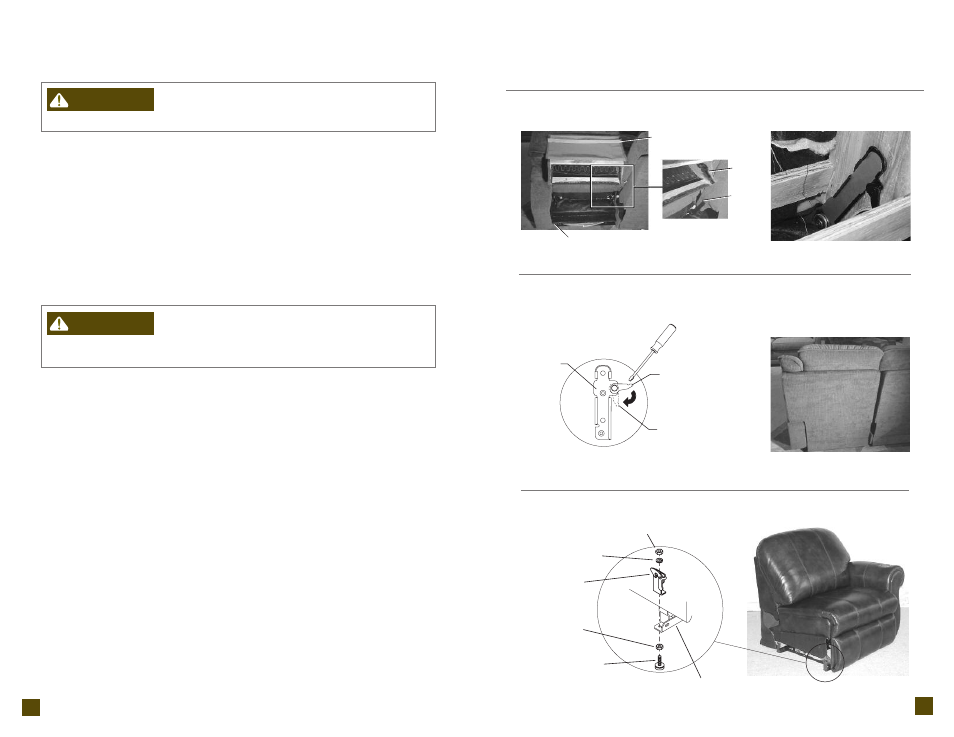

F

IGURE

1

F

IGURE

2

F

IGURE

5

F

IGURE

3

F

IGURE

4

Lock
Washer

Locking Latch
Bracket

Adjustable
Glide

Lower
Jam Nut

Back
Bracket

Body
Bracket

Fastening Tape

Fastening Tape

Back
Bracket

Locking
Lever

Locked
Position

Upper
Jam Nut

Base Rail

11

10

La-Z-Time

®

Motion Upholstery and La-Z-Time

Motion-Modulars

®

Assembly Instructions

La-Z-Time

®

Motion Upholstery and La-Z-Time

Motion-Modulars

®

Assembly Instructions

– To reduce the risk of injury:

Do not operate the unit until the back is installed and locked.

WARNING

1. Install the backs, if applicable (some styles come with the backs installed).

• Lay the back on the seat. Lift the back at a slight angle and align the brackets inside the back

with the brackets on the body (F

IGURE

1).

• Lower the back onto the body, making sure the back and body brackets are completely engaged.

• To make sure the back is properly installed, lift the back upholstery cover to visually confirm

that both sets of back and body brackets are engaged (F

IGURE

2).

• If you are unable to install the back properly contact your La-Z-Boy

®

dealer for assistance.

• Lock the brackets by using a screwdriver to push down the locking levers (F

IGURE

3).

• Pull the outside back upholstery cover down tight. Firmly press the fastening tape on the outside

back upholstery cover to the fastening tape on the bottom of the rear rail (F

IGURE

1 and F

IGURE

4).

– To reduce the risk of serious injury:

Provide a clear path for operation of the back and legrest. Place tables and area rugs at

a distance to allow the legrest to fully extend without rubbing or interference.

WARNING

2. Place units in the desired location.

3. Adjustable glides are provided on units with metal base rails. Make sure the glides are adjusted to a

height that provides a clear path for operation of the legrest (see Furniture Placement Guide).

• Each glide is attached to the base rail by one jam nut and one lock washer on top of the latch

bracket or base rail, and one jam nut on the bottom of the base rail (F

IGURE

5, Motion-Modular

unit featured). Loosen the jam nut located on top of the latch bracket or base rail.

• Holding the top jam nut, turn the glide clockwise to lower the unit or counterclockwise

to raise the unit.

• Tighten the bottom jam nut to the base rail and tighten the top jam nut

to the latch bracket or base rail.

• Repeat this step for each adjustable glide, if necessary.

4. Motion sofa or chair assembly is complete. If assembling modular units, proceed to the following page.
