OmniClient –User’s Guide (V1.02)
www.kontron.com 45
12.
Technical Appendix - Interfaces
The following tables contain the plug assignments for the external connections of the OmniClient.
Low-active signals are indicated by a minus sign.

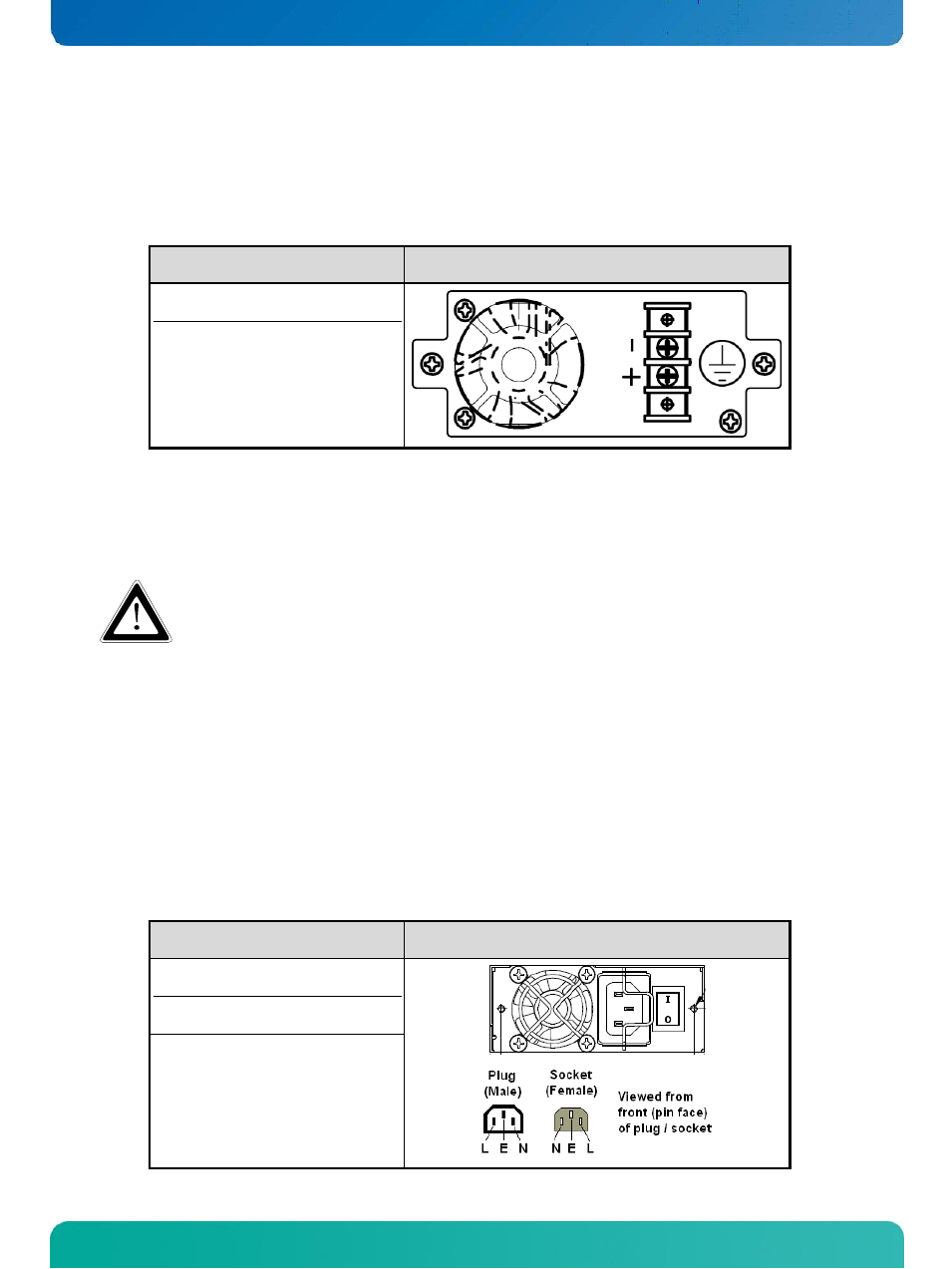

12.1. Power Connector – DC Power Supply Option
Pin Signal Name 3-pin Power Connector (male)
1 Ground (-)
2 +24V DC IN (+)
12.2. Power Connector – AC Power Supply Option
The AC Power supply uses a standard IEC-60320-C13 power cord.
WARNING:
Do not attempt to modify or use an AC power cord set that is not the exact type
required. You must use a power cord set that meets the following criteria:

Rating: In the U.S. and Canada, cords must be UL (Underwriters Laboratories, Inc.) Listed/CSA
(Canadian Standards Organization) Certified type SJT, 18-3 AWG (American Wire Gauge). Outside
of the U.S. and Canada, cords must be flexible harmonized () or VDE (Verbena Deutscher
Electrotechniker, German Institute of Electrical Engineers) certified cord with 3x 0.75 mm conductors
rated 250 VAC.

Connector, wall outlet end: Cords must be terminated in grounding-type male plug designed for use
in your region. The connector must have certification marks showing certification by an agency
acceptable in your region and for U.S. must be listed and rated for 125% of the overall current rating
of the server.

Connector, server end: The connectors that plug into the AC receptacle on the server must be an
approved IEC (International Electrotechnical Commission) 320, sheet C13, type female connector.

Cord length and flexibility: Cords must be less than 4.5 meters (14.8 feet) long.
Pin Signal Name 3-pin Power Connector (male)
1 Live
2 Earth Ground
3 Neutral
