COMe-cDC2 / BIOS Operation

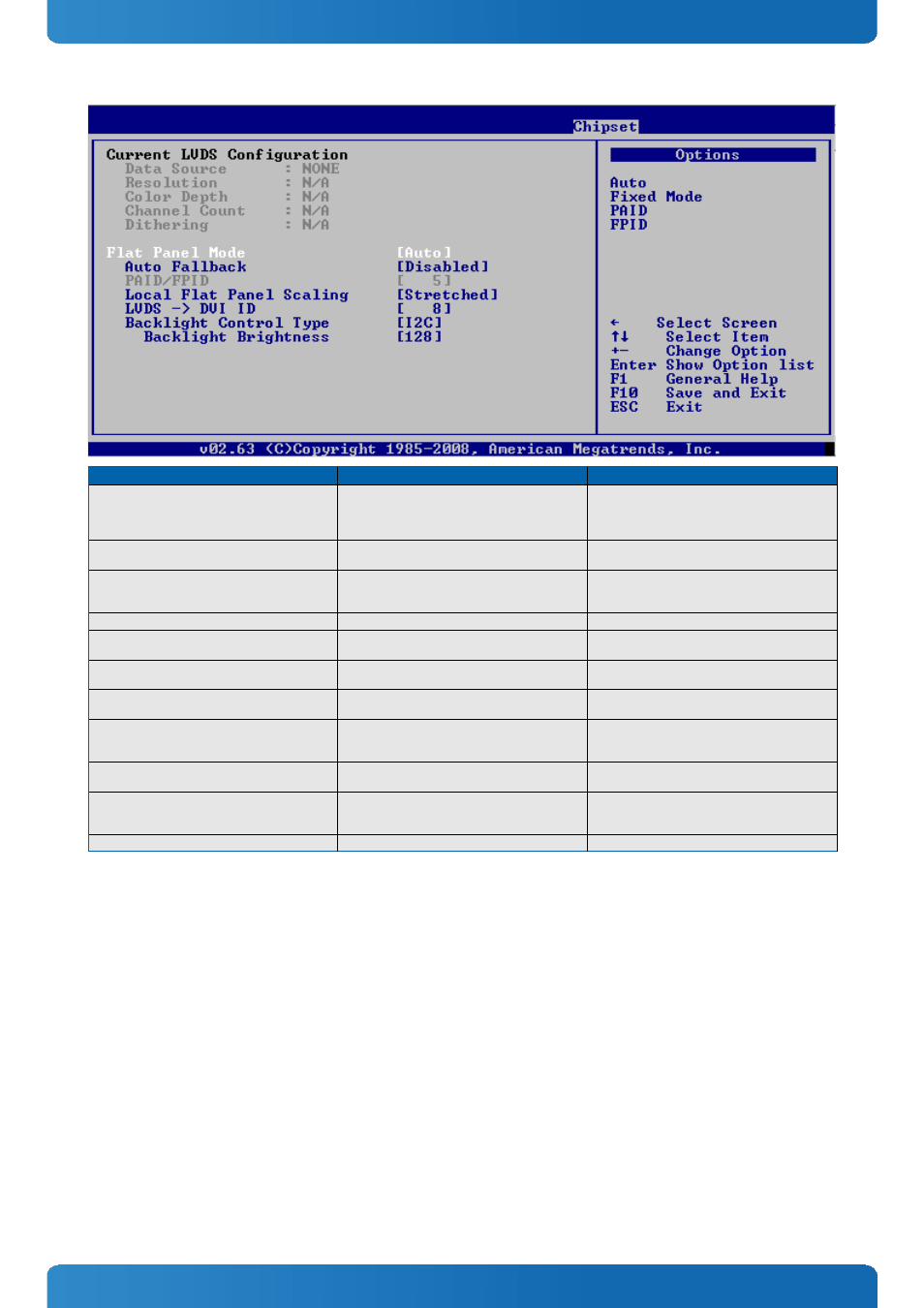

Internal LVDS Configuration
Feature Option Description
Flat Panel Mode Auto
Fixed Mode
PAID
FPID
Selects the Mode for the flat panel detection
Auto Fallback Disabled
Fixed Mode
Selects what happens, when there is no EEPROM
detected (only when FPM: Auto)
Flat Panel Type VGA 640×480
…
WXGA 1280×800
Selects the resolution of the LVDS display (only in FMP:
Fixed Mode)
PAID/FPID [X] Selects the number of the PAID/FPID
Channels Single Channel
Dual Channel
Selects, if 1x or 2x LVDS signals are used (only in FPM:
Fixed Mode)
Color Depth 18bit Selects the Color Depth of the connected LVDS display
(only in FPM: Fixed Mode)
Dithering Enabled Selects what happens, when there is no EEPROM
detected (only when FPM: Auto)
Local Flat Panel Scaling Centered
Stretched
Disabled
Selects the Scaling Options for the LVDS panel (only in
FPM: Fixed Mode)
LVDS DVI ID → 5
8 Please Type In! 5 = 1Ч18
8 = 2Ч18
Backlight Control Type None/External
I2C
PWM
Selects the mode for Backlight Control
Backlight Brightness [0…255] Selects the default setting for Backlight Brightness
