www.kontron.com 34
Quick Start Guide
COME-QEC-1
9 Adapter Cards
There are three adapter cards available for use with the COME-QEC-1:
» ADAP-EVAL-QORIQ-SGMII: a quad 10/100/1000Base-T SGMII adapter
» ADAP-EVAL-QORIQ-XAUI: a 10GBase-R XAUI adapter
» ADAP-EVAL-QORIQ-SRIO: a four lane 5 Gbaud SRIO adapter
9.1 Adapter Card ADAP-EVAL-QORIQ-SGMII
This section describes the quad 10/100/1000Base-T SGMII Adapter. It is a pluggable I/O add-on-card for Slot 3 of the COME-QEC-
1 carrier.

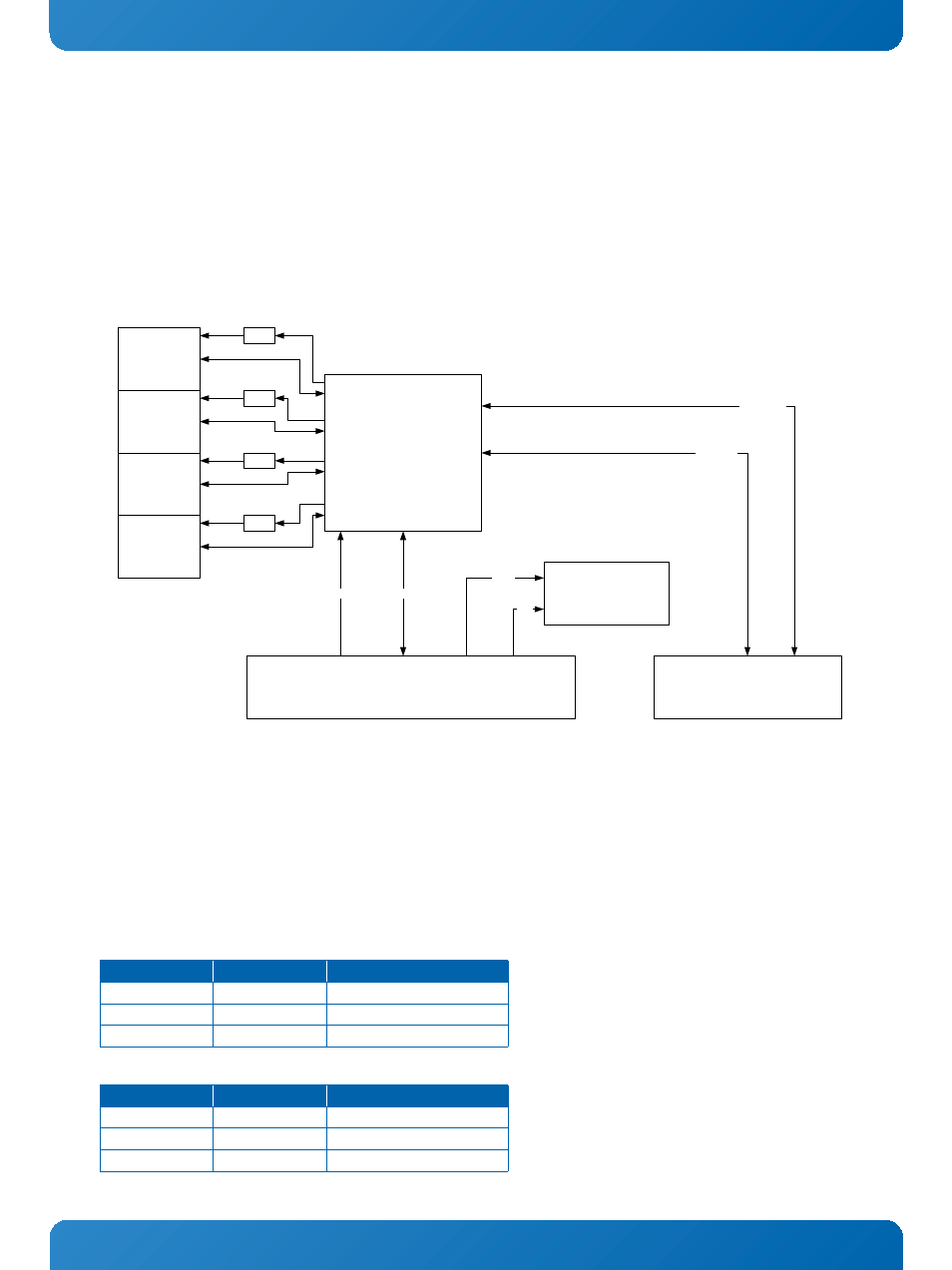

F igure 3: Functional Block Diagr am of the ADAP-EVAL-QORIQ-SGMII Adapter Card
The adapter's mechanical outlines and construction is conform to the PCI Express CEM 1.1 Add-in Card Form Factor x4 with an
additional PCIe x1 style extension for sideband signals. It has the following key features:
» Four RJ45 10/100/1000Base-T Ethernet interfaces
» Card-Edge connector with 4x SGMII
» MIIM Interface on sideband connector
» BCM5466R Quad PHY
» 3.3V Supply
The following tables provide usage information for the port LEDs.
Table 21: LED 1: Link/Activity
STATE COLOR DESCRIPTION
Off None No link, no activity
On Yellow Link, no activity
Blinking Yellow/None Link, Activity
Table 22: LED 2: Speed
STATE COLOR DESCRIPTION
Off None No link, 10 Mbps activity
On Green 100 Mbps
On Orange 1000 Mbps
Main Card Edge Connector Sideband Card Edge Connector
Broadcom
BCM5466R
Quad
10/100/1000
Base-T PHY
RJ45 + MAG
P1
RJ45 + MAG
P2
RJ45 + MAG
P3
RJ45 + MAG
P4
MDI 1
MDI 2
MDI 3
MDI 4
MDIO IF
POL
1.2 V, 1.8V, 2.5V
3.3V
12.0 V
4x SGMII RST#
MDC/MDIO
LED[G/O/Y]
LED[G/O/Y]
LED[G/O/Y]
LED[G/O/Y]
LED[3:1]
LED[3:1]
LED[3:1]
LED[3:1]
LOGIC
LOGIC
LOGIC
LOGIC
PHY AD PHYADD[4:0]
