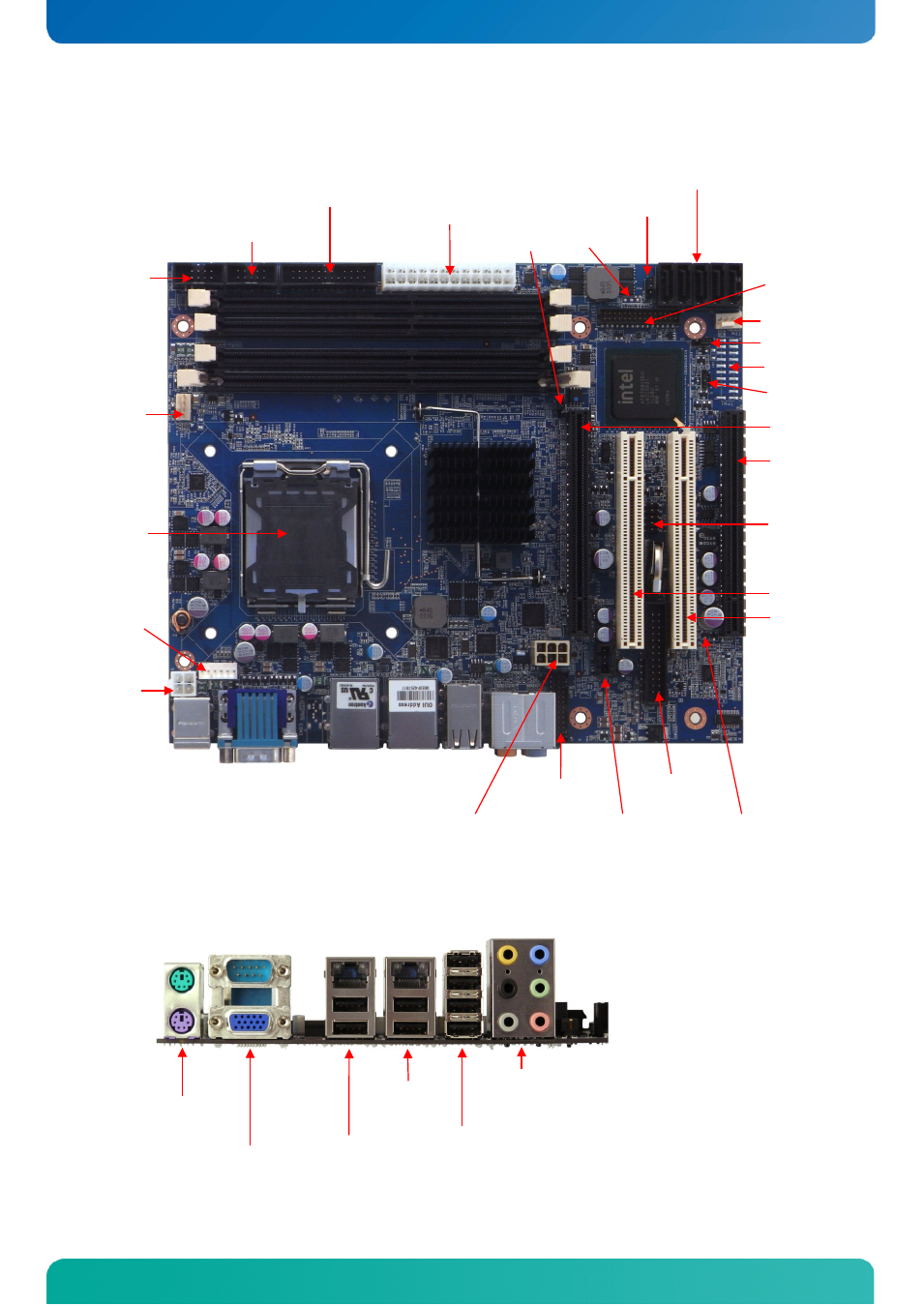

3.1 Connector layout
3.1.1 KTQ45/Flex
3.1.2 KTQ45 - IO Bracket area
CDROM ATX+12V-6pin
SAT
A1
SAT
A2
SAT
A3
SAT
A4
SAT
A5
PCIe x4
ATXPWR
SPI
Clr-CMOS
PCI Slot 2
PCIe x16/SDVO
LPT
FAN_SYS
KBDMSE
FRONTPNL
AUDIO_HEAD
FEATURE
Ext-TPM
FAN_CPU
PCI Slot 1
ATX+12V-4pin
USB8
USB9
CPU Socket
COM2
JP5*
JP3*
Clr-ME
SPI jumper
* JP3 and JP5 used for BIOS boot selection
(only for manufacture purpose)
COM1
CRT
MSE
KBD
(PS2)
AUDIO
STACK
ETHER2
USB3
USB2
ETHER1
USB5
USB4
USB0
USB1
USB6
USB7
System Temperature sensor (Q13)
